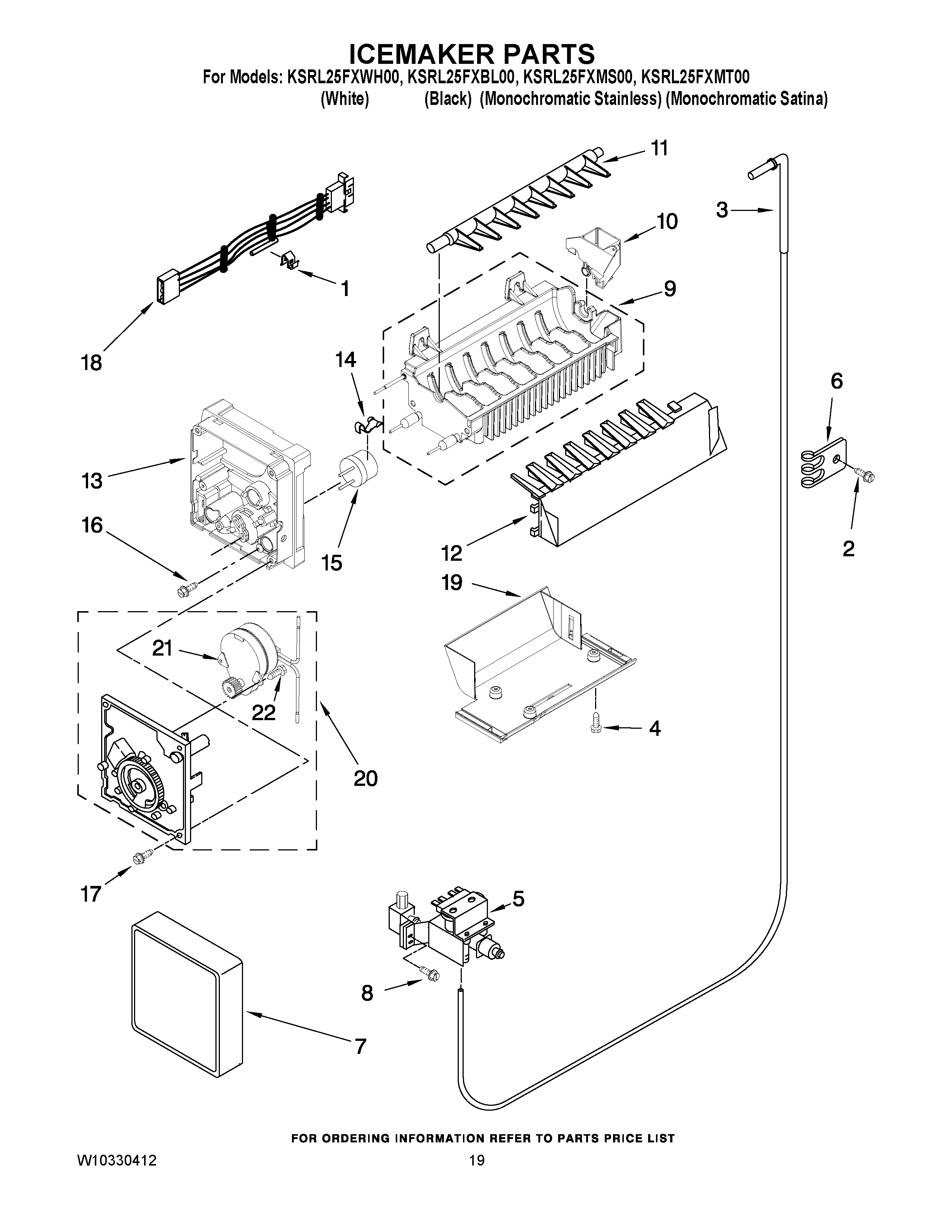

KSRL25FXMS00 12 – ICEMAKER PARTS

Products

Position	Product
1	WP628379 Whirlpool Refrigerator Clip
2	SCREW
3	Fitting, Water Tube
4	WP489478 Whirlpool Refrigerator Screw
5	WPW10179146 Whirlpool Refrigerator Water Inlet Valve
6	W10562834 Whirlpool Refrigerator Clip
7	WPW10289690 Whirlpool Ice Maker Cover
8	WPW10068250 Whirlpool Dishwasher Screw
9	WPW10300025 Whirlpool Refrigerator Ice Mold
10	WPW10272168 Whirlpool Refrigerator Water Fill Cup
11	W10318914 Whirlpool Refrigerator Ejector Arm
12	WPW10272161 Whirlpool Refrigerator Stripper Arm
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	628532 Whirlpool Refrigerator Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	W10001240 Whirlpool Refrigerator Screw
18	WP2187467 Whirlpool Refrigerator Wire Harness
19	BRACKET, ICEMAKER MOUNTING
21	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22	489136 Whirlpool Refrigerator Screw
100	W11512152 Whirlpool Ice Maker Assembly
