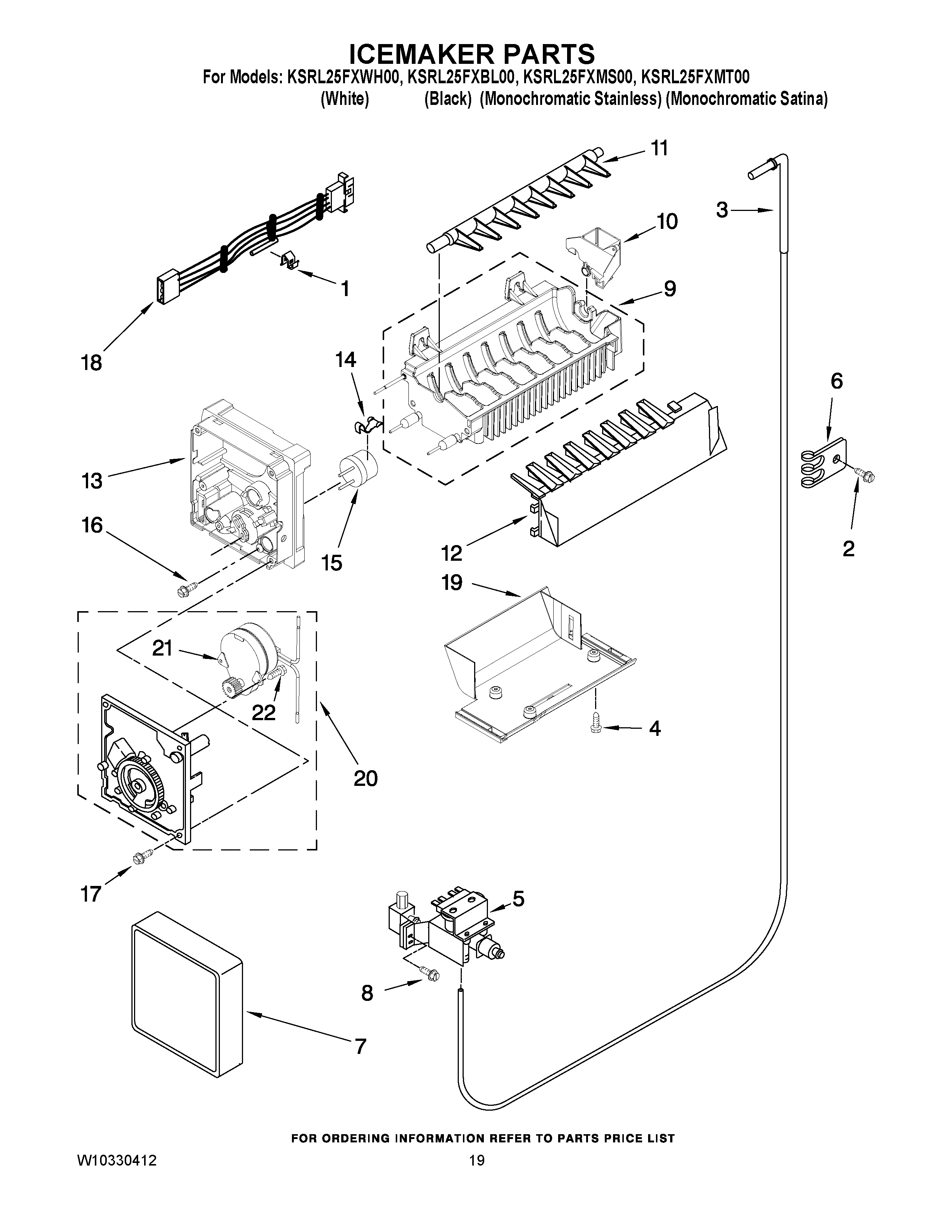

KSRL25FXWH00 12 – ICEMAKER PARTSadmin2025-04-26T11:54:33+00:00KSRL25FXWH00 12 – ICEMAKER PARTS ProductsPositionProduct1WP628379 Whirlpool Refrigerator Clip2SCREW3Fitting, Water Tube4WP489478 Whirlpool Refrigerator Screw5WPW10179146 Whirlpool Refrigerator Water Inlet Valve6W10562834 Whirlpool Refrigerator Clip7WPW10289690 Whirlpool Ice Maker Cover8WPW10068250 Whirlpool Dishwasher Screw9WPW10300025 Whirlpool Refrigerator Ice Mold10WPW10272168 Whirlpool Refrigerator Water Fill Cup11W10318914 Whirlpool Refrigerator Ejector Arm12WPW10272161 Whirlpool Refrigerator Stripper Arm13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15628532 Whirlpool Refrigerator Thermostat168533917 Whirlpool Refrigerator Screw17W10001240 Whirlpool Refrigerator Screw18WP2187467 Whirlpool Refrigerator Wire Harness19BRACKET, ICEMAKER MOUNTING218201515 Whirlpool Refrigerator Motor and Gear Module Kit22489136 Whirlpool Refrigerator Screw100W11512152 Whirlpool Ice Maker Assembly
