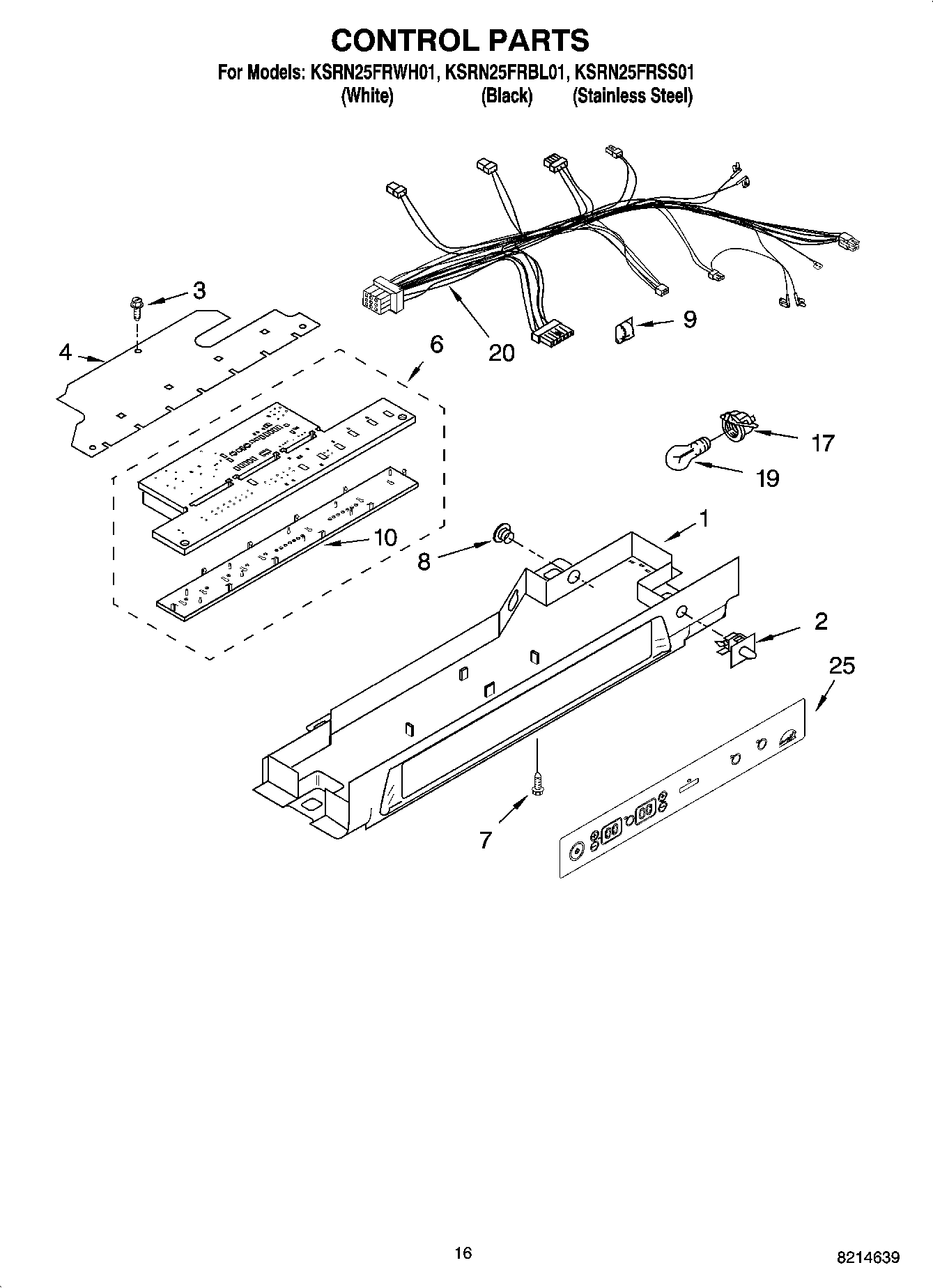

KSRN25FRSS01 10 – CONTROL PARTS

KSRN25FRSS01 10 – CONTROL PARTS

Written by

in

KSRN25FRSS01 10 – CONTROL PARTS

Products

PositionProduct
1Control Box
2WP2149705 Whirlpool Refrigerator Door Switch
3WP3196557 Whirlpool Screw
4Cover, Ctrl Box
6Control Board
7WP67006908 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP1115374 Whirlpool Refrigerator Clip
10Insert, Control Board (Not Available Order6)
174387478 Whirlpool Refrigerator Light Socket
19RANGE ONLY 40W 120V APPL BULB
20Control Box Harness
25Overlay, Control Box
