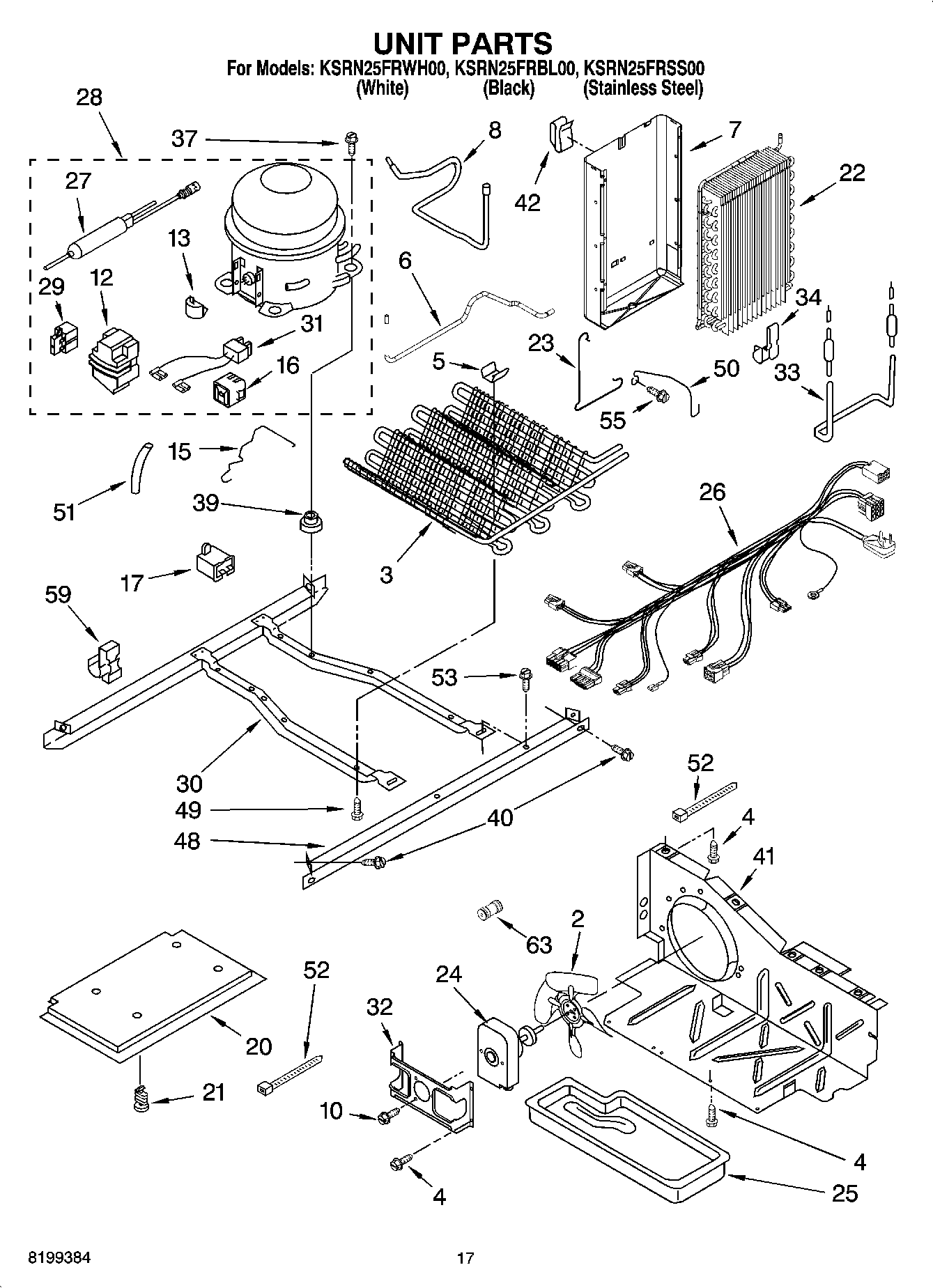

KSRN25FRWH00 11 – UNIT PARTSadmin2025-04-26T11:56:52+00:00KSRN25FRWH00 11 – UNIT PARTS ProductsPositionProduct2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5W10683556 Whirlpool Refrigerator Clip62261599 Whirlpool Refrigerator Tube7Heat Shield8WP2205765 Whirlpool Refrigerator Tube10WP8533993 Whirlpool Refrigerator Screw12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2154697 Whirlpool Refrigerator Overload15Clip, Retaining16WP2319792 Whirlpool Refrigerator Start Device17WPW10662129 Whirlpool Refrigerator Run Capacitor20Unit Cover, Bottom21489396 Whirlpool Refrigerator Clip22WP2188823 Whirlpool Refrigerator Evaporator23Clamp24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Harness, Unit27W10843121 Whirlpool Refrigerator Tube28W10309994 Whirlpool Refrigerator Compressor29W10920279 Whirlpool Refrigerator Start Relay302304904 Whirlpool Frame Assembly31WP2172890 Whirlpool Refrigerator Wire32WP2181929 Whirlpool Refrigerator Bracket33WP2323198 Whirlpool Refrigerator Heater34W11623163 Whirlpool Refrigerator Clip39WP4387558 Whirlpool Refrigerator Compressor Grommet39876811 Whirlpool Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield482305374 Whirlpool Refrigerator Unit Rail49W11544659 Whirlpool Refrigerator Screw502260517 Whirlpool Fan Guard51SLEEVE52WPW10339879 Whirlpool Wire Tie53WP489427 Whirlpool Refrigerator Screw55WP489478 Whirlpool Refrigerator Screw59Clip, Wire & Tube63876764 Whirlpool Refrigerator Primary Valve63Following Parts Not Illustrated and Optional Parts Not Inclu63978026 Whirlpool Refrigerator Primary Valve63Union63VALVE, ACCESS (1/2``)63VALVE, ACCESS (5/8``)63WP978025 Whirlpool Refrigerator Valve63978030 Whirlpool Refrigerator Valve63978027 Whirlpool Refrigerator Primary Valve63WPL ARI99485A3
