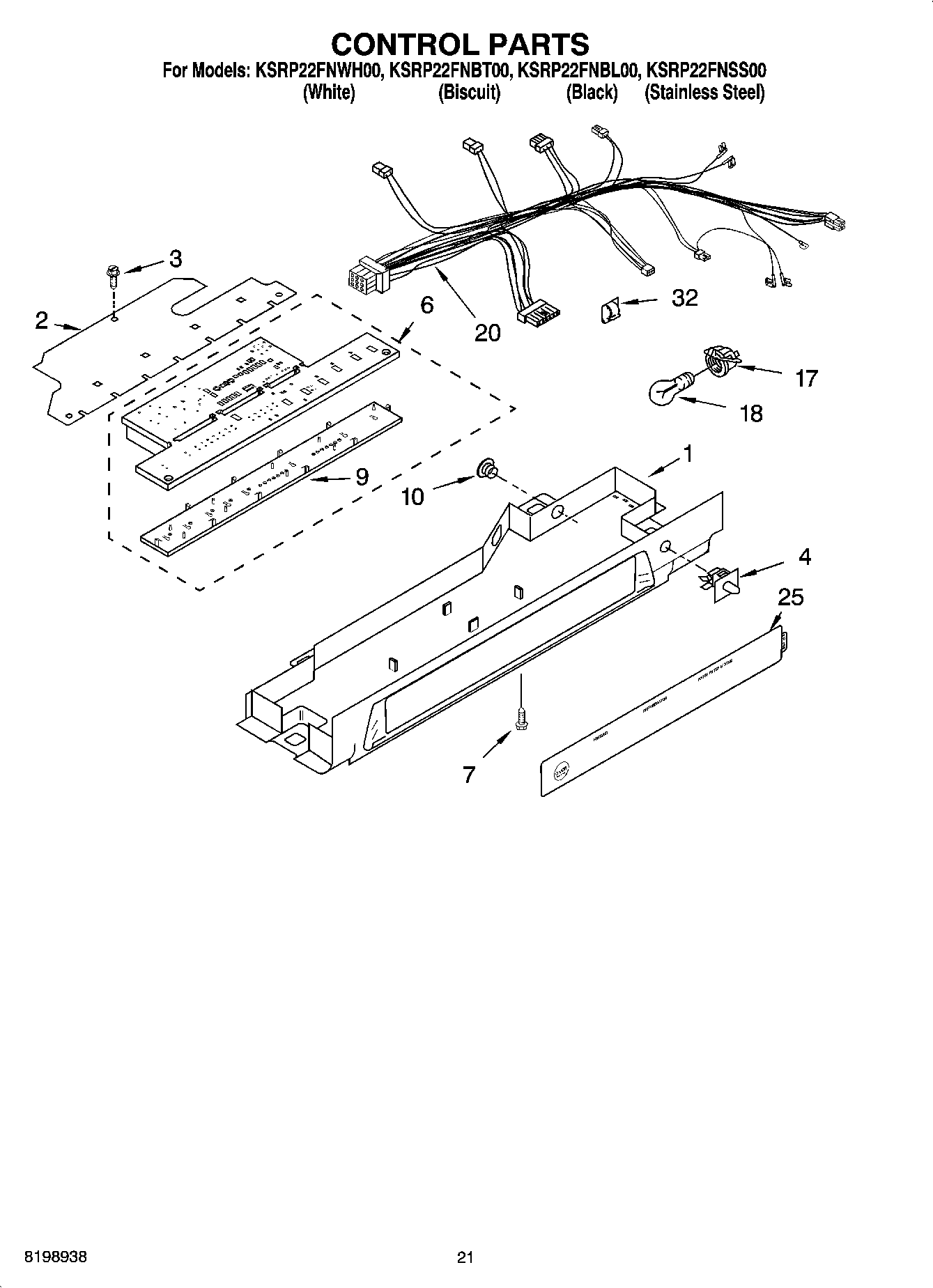

KSRP22FNWH00 12 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Products

Position	Product
	WPL ARI99613A2
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI99609A9
	Ice Container Assembly
	WPL ARI99610A8
	WPL ARI99611A7
	WPL ARI99612A4
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	212643 Whirlpool Refrigerator Permagum Sealer
	350956 Whirlpool Spray Assembly
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	876370 Whirlpool Refrigerator Insulation
	Almond (Uncut)
	833938 Whirlpool Refrigerator Terminal
	350930 Whirlpool White Spray Paint
	606755 Whirlpool Refrigerator Bag
	511873 Whirlpool Refrigerator Paint
1	Control Box
2	Cover, Ctrl Box
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	Control Board Asm (Includes 25)
7	WP67006908 Whirlpool Refrigerator Screw
9	Insert, Control Board (Not Serviceable, Order 6)
10	940014 Whirlpool Refrigerator Primary Button Plug
17	4387478 Whirlpool Refrigerator Light Socket
18	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
25	Overlay, Control Box
32	WP1115374 Whirlpool Refrigerator Clip
