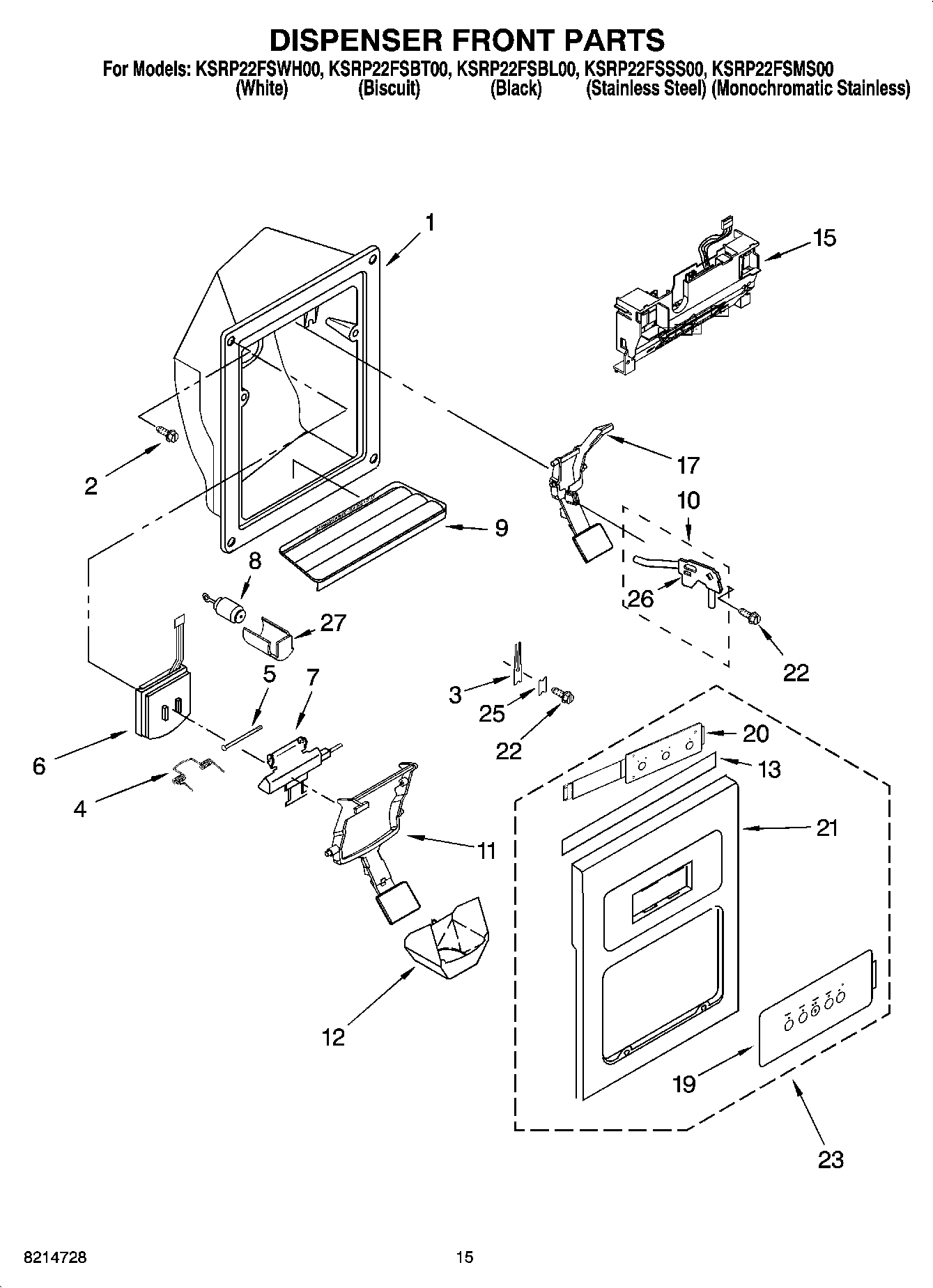

KSRP22FSSS00 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206671B Whirlpool Refrigerator Grille
9	WP2206671W Whirlpool Refrigerator Grille
9	Grille, Overflow (Biscuit)
9	W10171992 Whirlpool Refrigerator Grille
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Black (Storm Grey Pad))
11	Lever, Ice Dispenser (White (White Shadow Pad))
11	Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
11	Lever, Ice Dispenser (Apollo Gray)
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2305571 Whirlpool Gasket Assembly
15	Bracket, Control
17	Lever, Water Dispenser (Apollo Gray)
17	WPW10152858 Whirlpool Refrigerator Dispenser Arm
19	Overlay, Front Cover (Not Available, Order 23)
20	LED Display (Not Available Order 23)
21	Front Cover, Housing (Not Available Order 23)
22	WP3400906 Whirlpool Refrigerator Screw
23	Front Cover Assembly (Includes Items 13,19,20 & 21) (White)
23	Front Cover Assembly (Includes Items 13,19,20 & 21) (Biscuit)
23	Front Cover Assembly (Includes Items 19, 20 & 21) (Universal Silver)
23	Front Cover Assembly (Includes Items 13,19,20 & 21) (Black)
25	WP2195051 Whirlpool Refrigerator Clip
26	WP2304673 Whirlpool Refrigerator Bracket
27	Sleeve, Delay Mechanism
