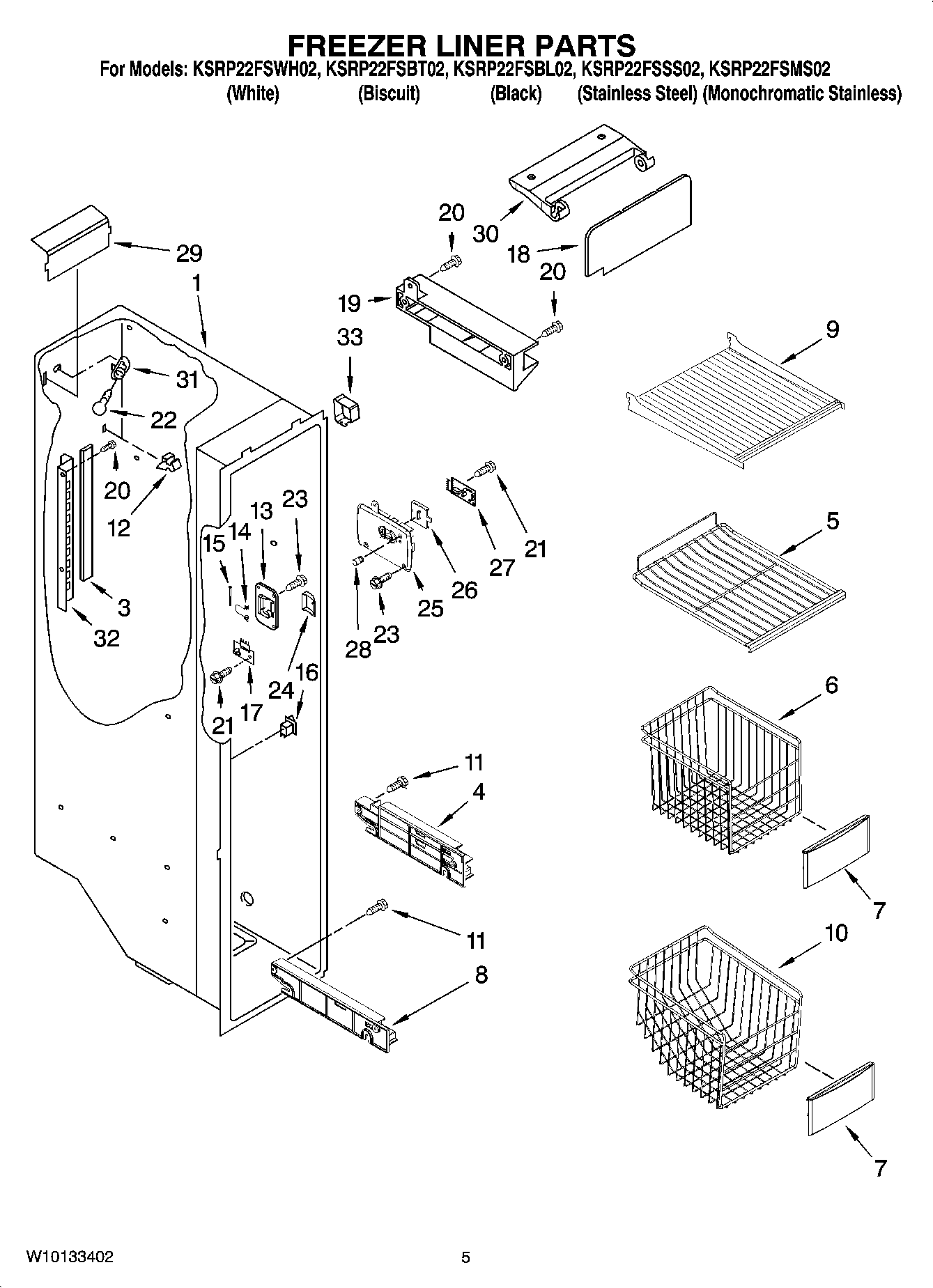

KSRP22FSSS02 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
3	Gasket
4	2301292 Whirlpool Refrigerator Track
4	2301291 Whirlpool Refrigerator Track
5	Shelf, Slide Out Lower (2)
6	Basket, Tall
7	Basket Front
8	Shelf Track (Left Side)
8	Shelf Track (Right Side)
9	Shelf (2)
10	Basket, Slope
11	W10759522 Whirlpool Screw
12	2215823 Whirlpool Refrigerator Clip
13	WP2198587 Whirlpool Refrigerator Cover
14	WP2198635 Whirlpool Refrigerator Spring
15	WP2198634 Whirlpool Door Pin
16	W11457217 Whirlpool Refrigerator Rocker Switch Combination
17	W10757851-includeCORE Whirlpool Electronic Control+Core
18	Cover, Icemaker
19	Slide, Ice Maker
20	WP489478 Whirlpool Refrigerator Screw
21	2006254 Whirlpool Refrigerator Screw
22	RANGE ONLY 40W 120V APPL BULB
23	WPW10142283 Whirlpool Refrigerator Screw
24	WP2198633 Whirlpool Refrigerator Flipper
25	Cover, Receiver
26	Slide, Ice Maker Shut Off
28	WP2198643 Whirlpool Refrigerator Lens
29	2212376 Whirlpool Light Lens
30	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
31	SOCKET
32	Ladder (Right Side)
32	Ladder (Left Side)
33	Shield, Wiring
