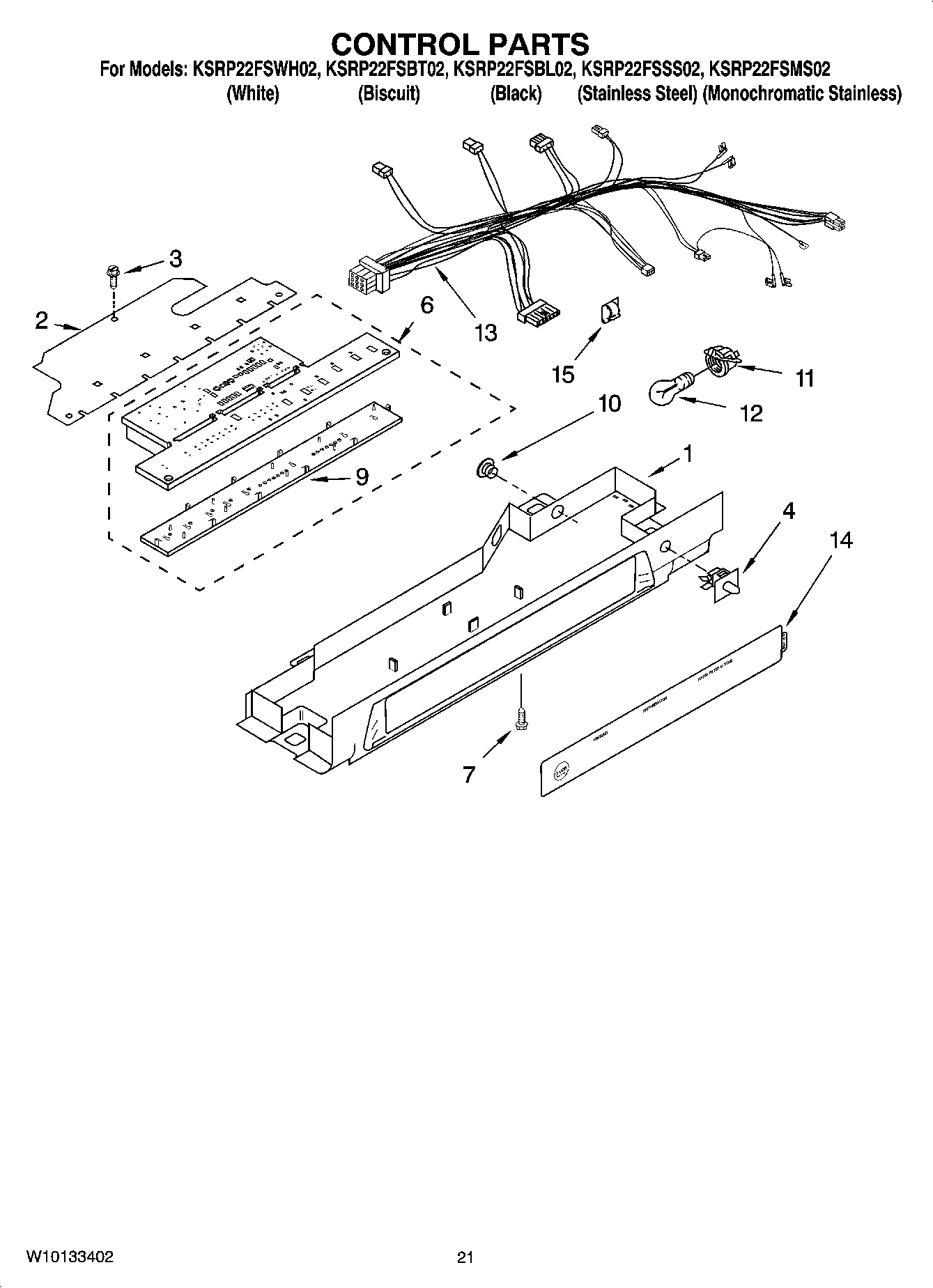

KSRP22FSSS02 12 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
	Miscellaneous
	TORX SCREW WRENCH
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	72017 Whirlpool Appliance Touch-Up Paint White
	WP505587 Whirlpool Refrigerator Sealer
1	Control Box
2	Cover, Ctrl Box
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	Electronic Control
7	WP67006908 Whirlpool Refrigerator Screw
9	Insert, Control Board (Not Serviceable, Order 6)
10	940014 Whirlpool Refrigerator Primary Button Plug
11	4387478 Whirlpool Refrigerator Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	Control Box Harness
14	Overlay, Control Box
15	WP1115374 Whirlpool Refrigerator Clip
