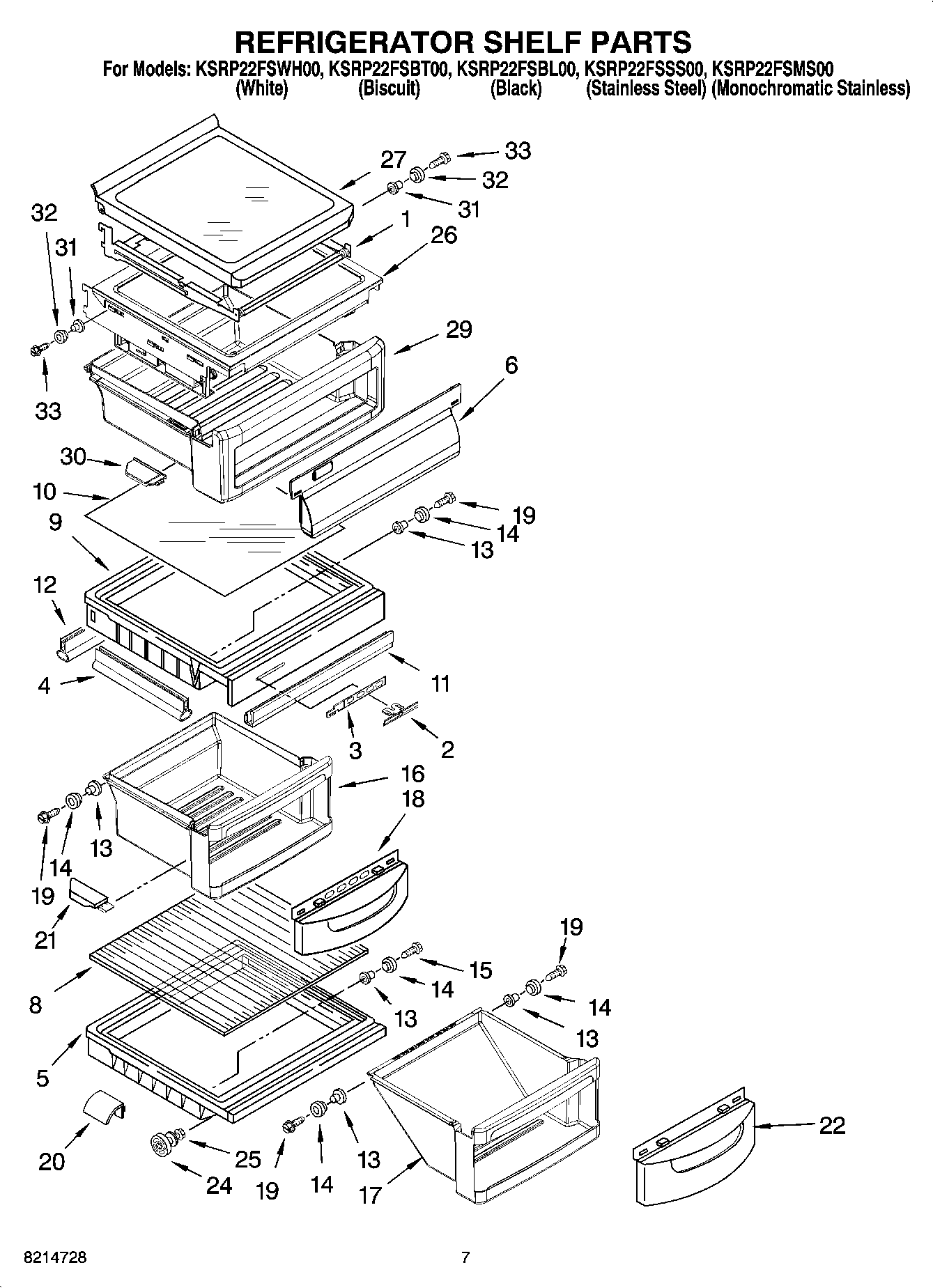

KSRP22FSWH00 05 – REFRIGERATOR SHELF PARTSadmin2025-04-26T11:56:29+00:00KSRP22FSWH00 05 – REFRIGERATOR SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Frame, Shelf |
| 2 | Button, Humidity Control |
| 3 | 2174252 Whirlpool Refrigerator Slide |
| 4 | Gasket, Side (2) |
| 5 | WP2223357 Whirlpool Refrigerator Cover |
| 6 | Window, Snack Pan |
| 8 | Glass, Meat Pan Cover |
| 9 | Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19) |
| 10 | Glass, Crisper Cover |
| 11 | WP1125528 Whirlpool Refrigerator Gasket |
| 12 | GASKET (REAR) |
| 13 | Eyelet, Roller |
| 14 | Roller |
| 15 | WPW10272364 Whirlpool Refrigerator Screw |
| 16 | Crisper Pan (Includes 13, 14 18, 19 & 21) |
| 17 | Meat Pan (Includes 13, 14, 19 & 22) |
| 18 | Window, Crisper |
| 19 | WP489261 Whirlpool Refrigerator Screw |
| 20 | 2176095 Whirlpool Refrigerator Deflector |
| 21 | 2223285 Whirlpool Refrigerator Cap |
| 21 | Cap, Crisper Pan (Right Side) |
| 22 | Window, Meat Pan |
| 24 | W11223328 Whirlpool Refrigerator Shelf Stud |
| 25 | WP3-24004-109 Whirlpool Refrigerator Screw |
| 26 | Shelf, Snack Pan |
| 27 | Shelf & Roller Assembly |
| 29 | Snack Pan (Includes 30, 31, 32, 33, & 34) |
| 30 | Cap, Crisper Pan (Left Side) |
| 30 | Cap, Crisper Pan (Right Side) |
| 31 | Eyelet, Roller |
| 32 | Roller |
| 33 | Screw |
