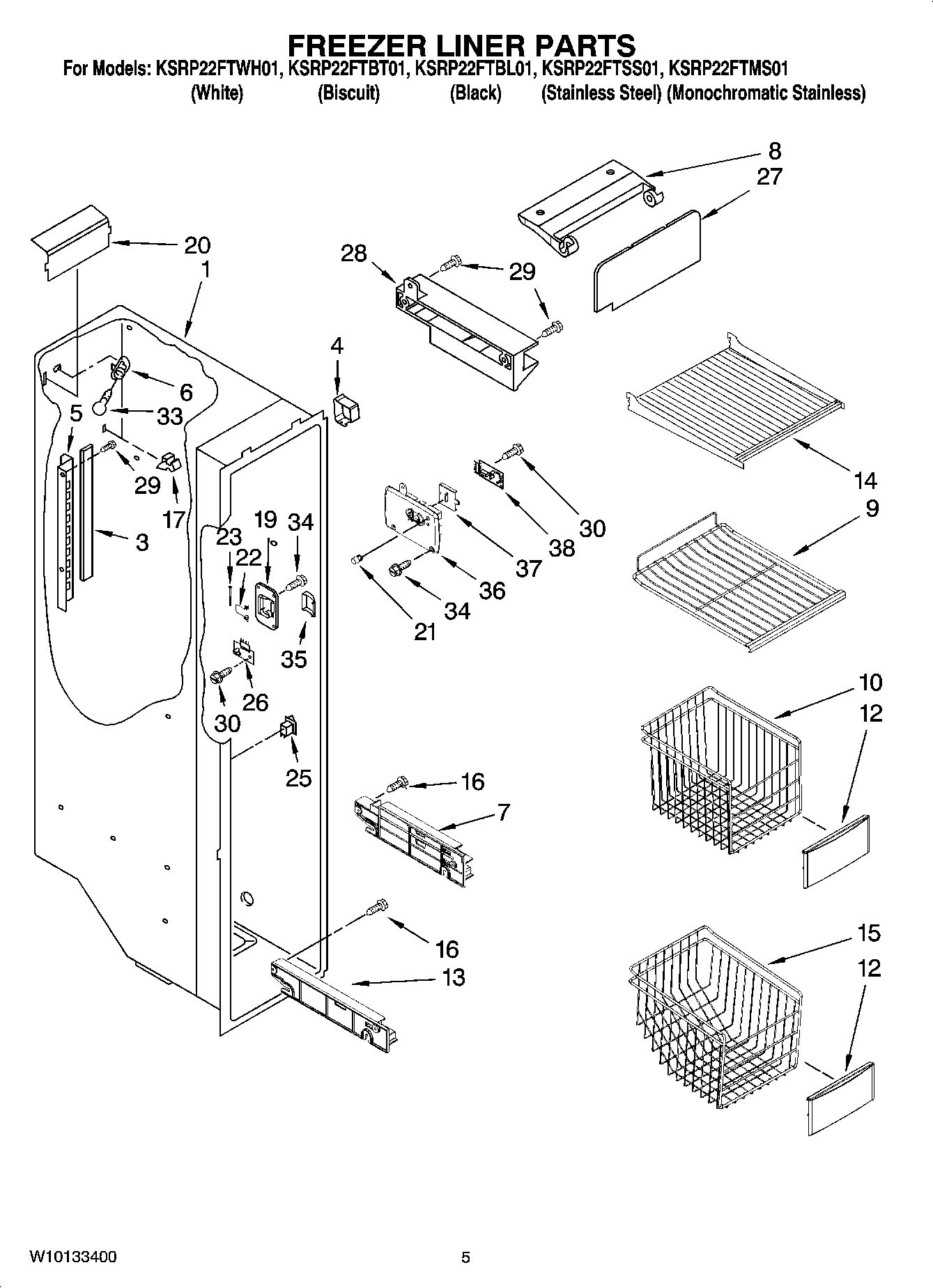

KSRP22FTBL01 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
3	Gasket
4	Shield, Wiring
5	Ladder (Left Side)
5	Ladder (Right Side)
6	SOCKET
7	2301292 Whirlpool Refrigerator Track
7	2301291 Whirlpool Refrigerator Track
8	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
9	Shelf, Slide Out Lower (2)
10	Basket, Tall
12	Basket Front
13	Shelf Track (Right Side)
13	Shelf Track (Left Side)
14	Shelf (2)
15	Basket, Slope
16	W10759522 Whirlpool Screw
17	2215823 Whirlpool Refrigerator Clip
19	WP2198587 Whirlpool Refrigerator Cover
20	2212376 Whirlpool Light Lens
21	WP2198643 Whirlpool Refrigerator Lens
22	WP2198635 Whirlpool Refrigerator Spring
23	WP2198634 Whirlpool Door Pin
25	W11457217 Whirlpool Refrigerator Rocker Switch Combination
26	W10757851-includeCORE Whirlpool Electronic Control+Core
27	Cover, Icemaker
28	Slide, Ice Maker
29	WP489478 Whirlpool Refrigerator Screw
30	2006254 Whirlpool Refrigerator Screw
33	RANGE ONLY 40W 120V APPL BULB
34	WPW10142283 Whirlpool Refrigerator Screw
35	WP2198633 Whirlpool Refrigerator Flipper
36	Cover, Receiver
37	Slide, Ice Maker Shut Off
