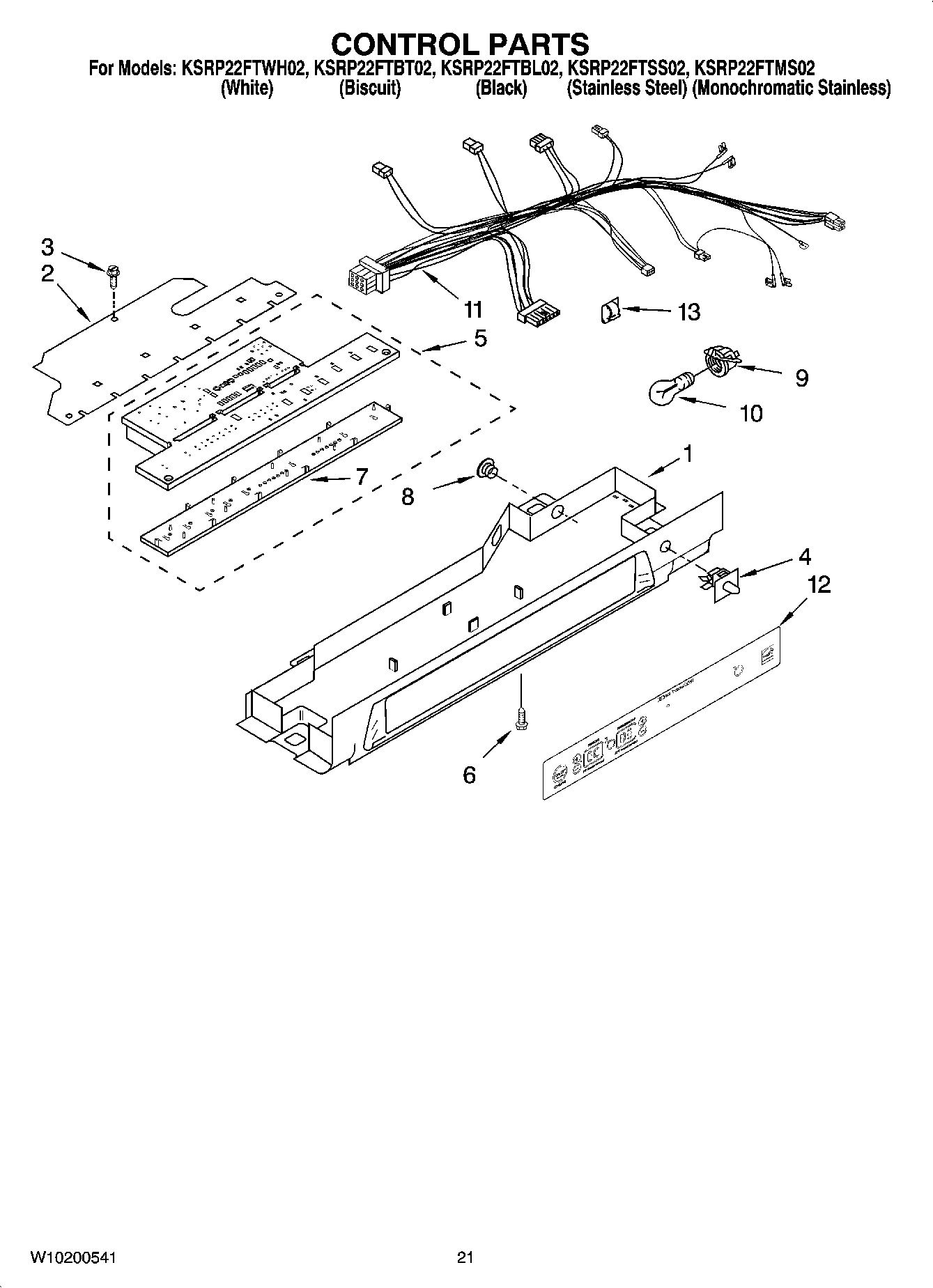

KSRP22FTBL02 12 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	8171357 Whirlpool Spray Nozzle
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	PAINT, BULK (1 QT. GRAPHITE)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL 8201806
	Important: The spray paint is not to be us
	WPL ARI99879A1
	WPL ARI99880A7
	WPL ARI99881A9
	TAPE, VINYL (3/4 X 108“)
	4392899 Whirlpool Biscuit Touch-Up Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	4392901 Whirlpool Biscuit Spray Paint
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	72017 Whirlpool Appliance Touch-Up Paint White
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
1	Control Box
2	Cover, Ctrl Box
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	Electronic Control
6	WP67006908 Whirlpool Refrigerator Screw
7	Insert, Control Board (Not Serviceable, Order 5)
8	940014 Whirlpool Refrigerator Primary Button Plug
9	4387478 Whirlpool Refrigerator Light Socket
10	RANGE ONLY 40W 120V APPL BULB
11	Control Box Harness
12	Overlay, Control Box
13	WP1115374 Whirlpool Refrigerator Clip
