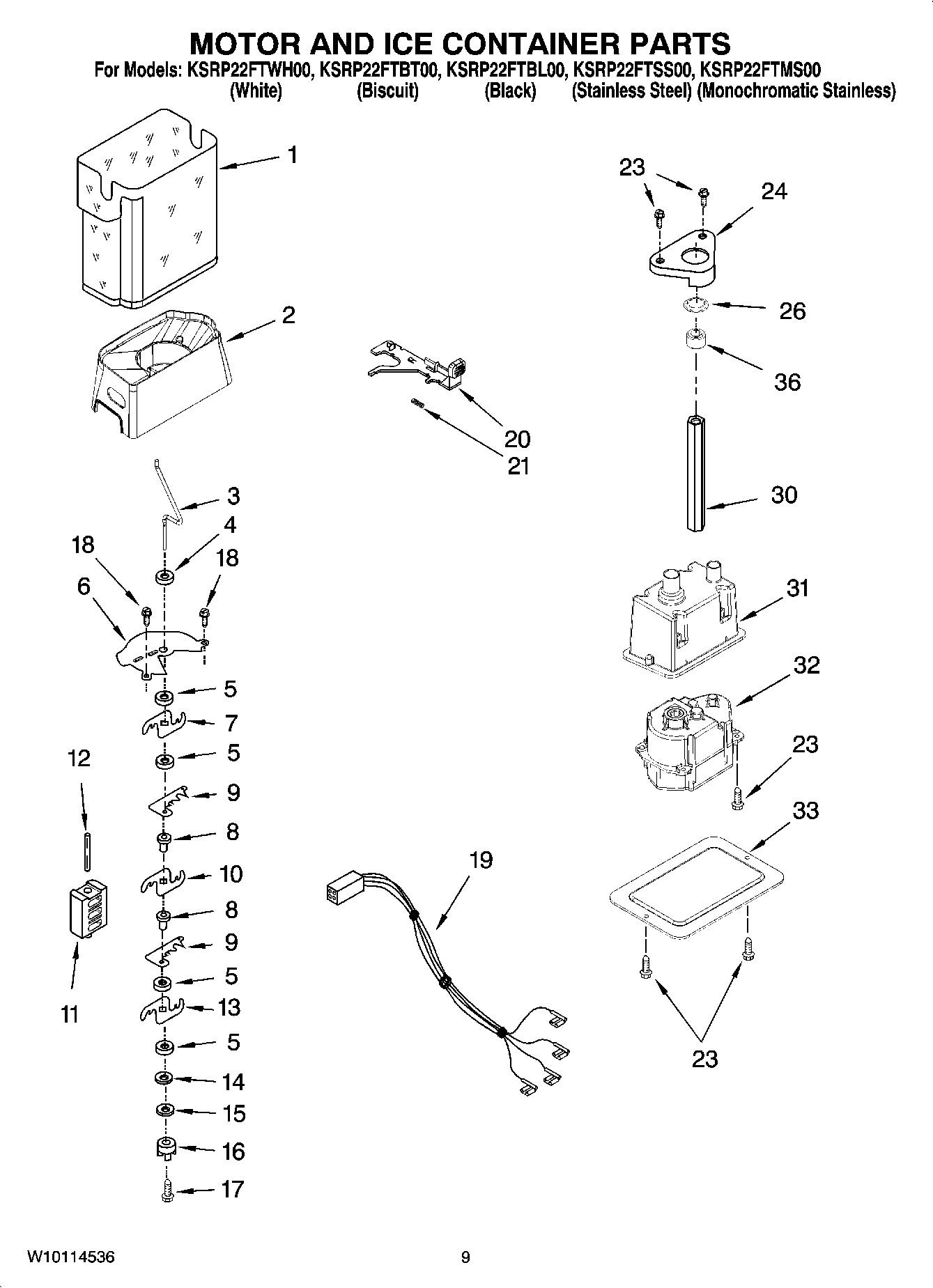

KSRP22FTBT00 06 – MOTOR AND ICE CONTAINER PARTSadmin2025-04-26T11:56:03+00:00KSRP22FTBT00 06 – MOTOR AND ICE CONTAINER PARTS ProductsPositionProduct1Ice Bin2Crusher Bin3Auger4Washer5WP1119007 Whirlpool Refrigerator Spacer6Cover, Crusher7W10278733 Whirlpool Refrigerator Blade8WP1119005 Whirlpool Refrigerator Spacer9Blade, Fixed10W10278732 Whirlpool Refrigerator Blade11Block, Blade12489229 Whirlpool Refrigerator Roll Pin13W10278731 Whirlpool Refrigerator Blade14WP489235 Whirlpool Refrigerator Washer15WP2198661 Whirlpool Refrigerator Washer16W11629923 Whirlpool Coupling17WP8281164 Whirlpool Refrigerator Screw18WP3400065 Whirlpool Refrigerator Screw19W10683539 Whirlpool Refrigerator Dispensing Harness20Latch, Bin21WP2198608 Whirlpool Refrigerator Spring23WP8281163 Whirlpool Refrigerator Screw24WP2188919 Whirlpool Refrigerator Holder26WP2198628 Whirlpool Door Seal30WP2188917 Whirlpool Drive Shaft31Enclosure, Motor32W10271509 Whirlpool Refrigerator Ice Maker Auger Motor33Cover36WP2315559 Whirlpool Motor Coupling100Ice Container (Complete)
