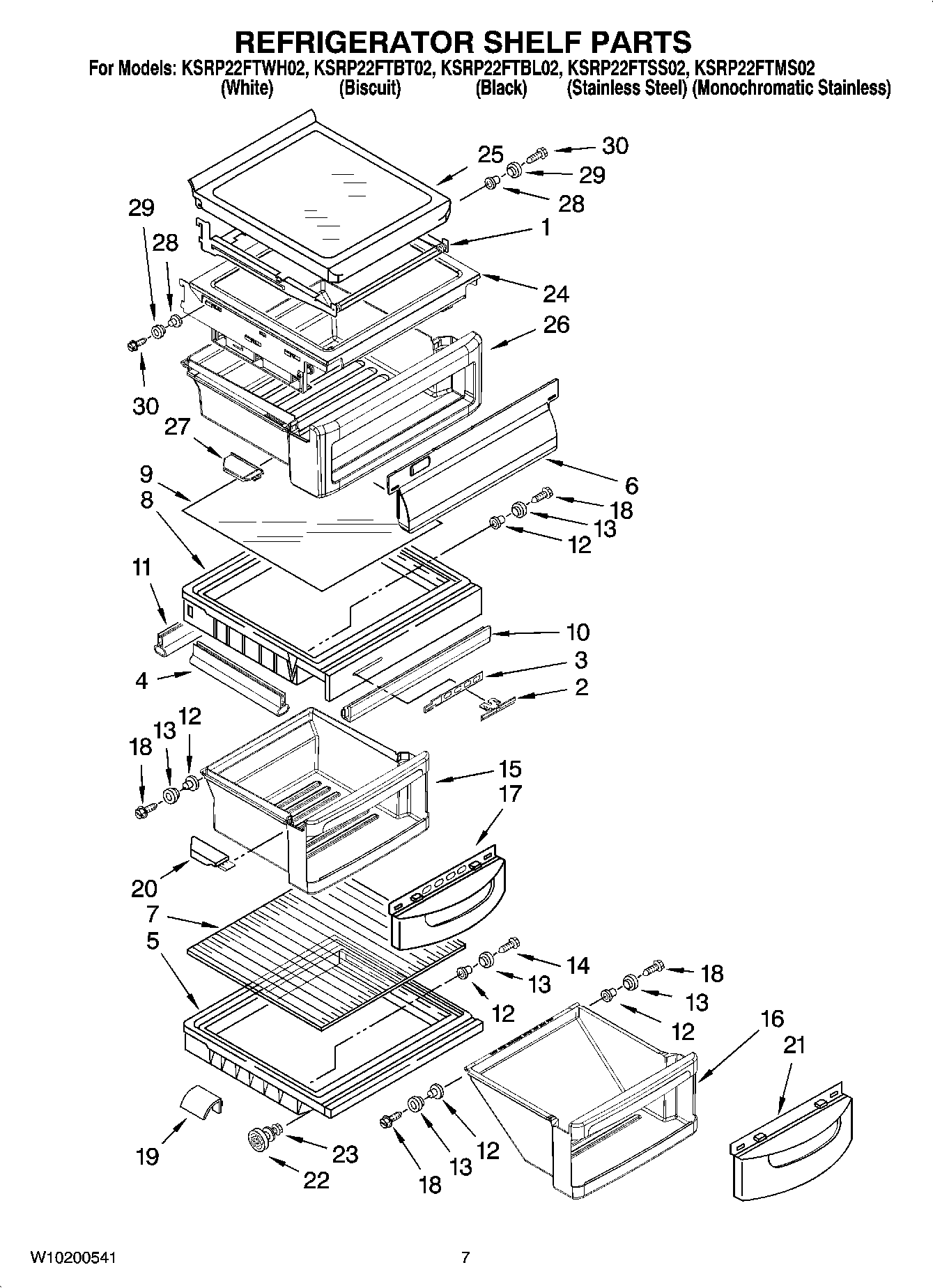

KSRP22FTBT02 05 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Button, Humidity Control
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2223357 Whirlpool Refrigerator Cover
6	Window, Snack Pan
7	Glass, Meat Pan Cover
8	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)
9	Glass, Cover
10	WP1125528 Whirlpool Refrigerator Gasket
11	GASKET (REAR)
12	Eyelet, Roller
13	Roller
14	WPW10272364 Whirlpool Refrigerator Screw
15	Crisper Pan (Includes 13, 14 18, 19 & 21)
16	Meat Pan (Includes 13, 14, 19 & 22)
17	Window, Crisper
18	WP489261 Whirlpool Refrigerator Screw
19	2176095 Whirlpool Refrigerator Deflector
20	2223285 Whirlpool Refrigerator Cap
20	Cap, Crisper Pan (Right Side)
21	Window, Meat Pan
22	W11223328 Whirlpool Refrigerator Shelf Stud
23	WP3-24004-109 Whirlpool Refrigerator Screw
24	Shelf, Snack Pan
25	Shelf & Roller Assembly
26	Snack Pan (Includes 30, 31, 32, 33, & 34)
27	Cap, Crisper Pan (Left Side)
27	Cap, Crisper Pan (Right Side)
28	Eyelet, Roller
29	Roller
30	Screw
