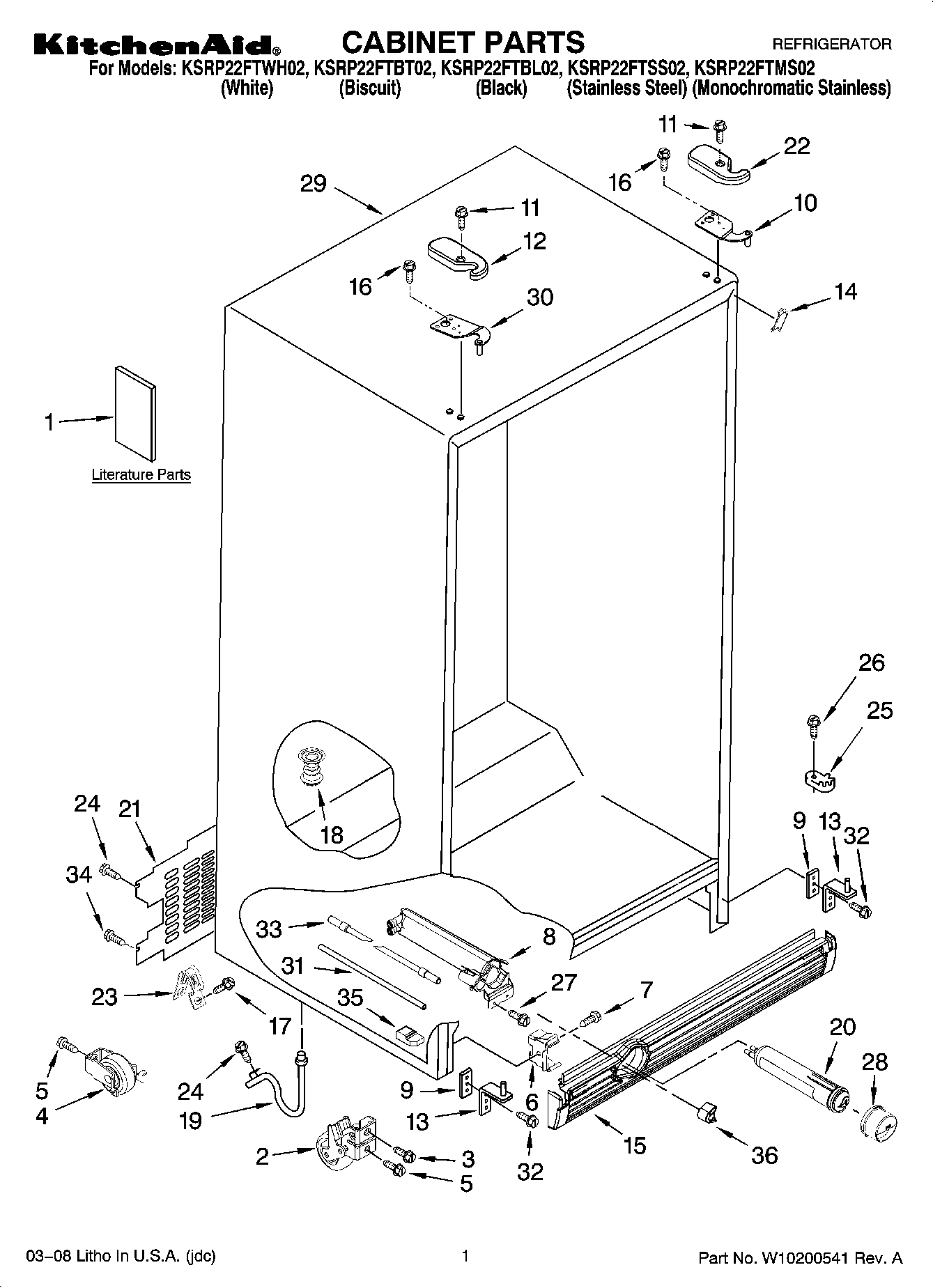

KSRP22FTMS02 01 – CABINET PARTS

KSRP22FTMS02 01 – CABINET PARTS

Written by

in

KSRP22FTMS02 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Use & Care Guide
1	Use & Care Guide (Trilingual)
1	Energy Label
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WP2209697 Whirlpool Refrigerator Shim
10	WP2203771 Whirlpool Refrigerator Door Hinge
11	WP8281227 Whirlpool Screw
12	WP2203407W Whirlpool Refrigerator Cover
12	2203407AP Whirlpool Refrigerator Cover
12	2203407T Whirlpool Refrigerator Cover
12	WP2203407B Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	Filler, Wrapper (Biscuit)
14	Filler, Wrapper (White)
14	Filler, Wrapper (Black)
14	Filler, Wrapper (Apollo Gray)
15	Grille (White)
15	Grille (Biscuit)
15	Grille (Black)
15	Grille (Apollo Gray)
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	Extension Tube
20	FILTER 3-SINGLE TEAL
21	WP2188756 Whirlpool Refrigerator Unit Cover
22	Hinge Cover (Biscuit)
22	WP2203408W Whirlpool Refrigerator Cover
22	WP2203408B Whirlpool Refrigerator Cover
22	2203408AP Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	WP489500 Whirlpool Refrigerator Screw
28	WP2260518AP Whirlpool Filter Cap Assembly
28	WP2260518B Whirlpool Water Filter Cap
28	WP2260518W Whirlpool Refrigerator Filter Cap
28	Cap, Water Filter (Biscuit)
29	Cabinet, (Not A Serviceable Part)
30	WP2203770 Whirlpool Refrigerator Door Hinge
31	WPW10350006 Whirlpool Refrigerator Water Tube
32	WP489497 Whirlpool Screw
33	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
34	WP488488 Whirlpool Refrigerator Screw
35	Block, Housing Support
36	WP2260503B Whirlpool Refrigerator Button
36	2260503W Whirlpool Refrigerator Button
36	Button, Water
