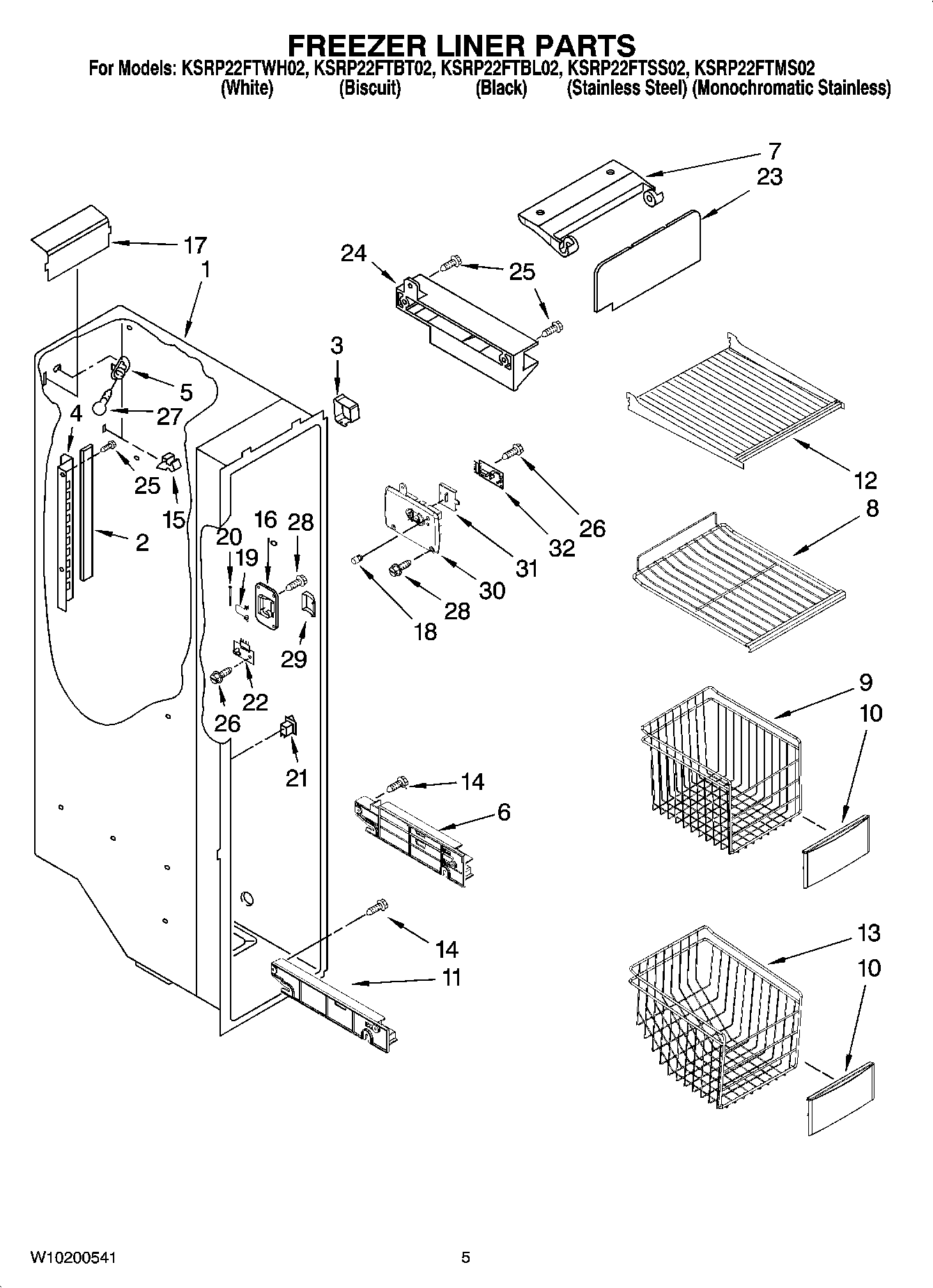

KSRP22FTMS02 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Gasket
3	2303234 Whirlpool Refrigerator Shield
4	Ladder (Left Side)
4	Ladder (Right Side)
5	SOCKET
6	2301292 Whirlpool Refrigerator Track
6	2301291 Whirlpool Refrigerator Track
7	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
8	Shelf, Slide Out Lower (2)
9	Basket, Tall
10	Basket Front
11	Shelf Track (Right Side)
11	Shelf Track (Left Side)
12	Shelf (2)
13	Basket, Slope
14	W10759522 Whirlpool Screw
15	2215823 Whirlpool Refrigerator Clip
16	WP2198587 Whirlpool Refrigerator Cover
17	2212376 Whirlpool Light Lens
18	WP2198643 Whirlpool Refrigerator Lens
19	WP2198635 Whirlpool Refrigerator Spring
20	WP2198634 Whirlpool Door Pin
21	W11457217 Whirlpool Refrigerator Rocker Switch Combination
22	W10757851-includeCORE Whirlpool Electronic Control+Core
23	W10180062 Whirlpool Refrigerator Ice Door
24	Slide, Ice Maker
25	WP489478 Whirlpool Refrigerator Screw
26	2006254 Whirlpool Refrigerator Screw
27	RANGE ONLY 40W 120V APPL BULB
28	WPW10142283 Whirlpool Refrigerator Screw
29	WP2198633 Whirlpool Refrigerator Flipper
30	Cover, Receiver
31	2315398 Whirlpool Refrigerator Slide
