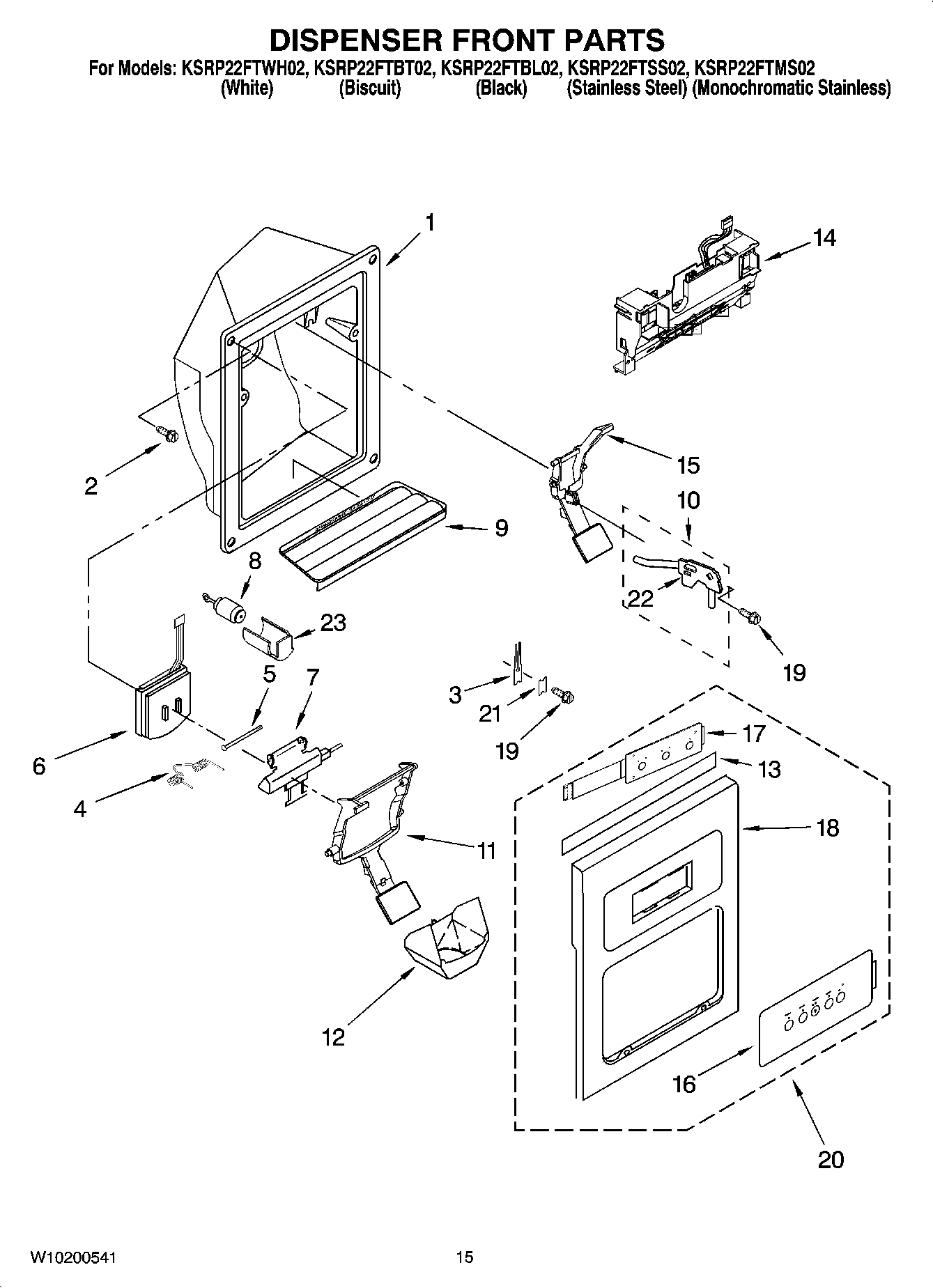

KSRP22FTMS02 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	W10171992 Whirlpool Refrigerator Grille
9	WP2206671W Whirlpool Refrigerator Grille
9	Grille, Overflow (Biscuit)
9	WP2206671B Whirlpool Refrigerator Grille
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (White (White Shadow Pad))
11	Lever, Ice Dispenser (Apollo Gray)
11	Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
11	Lever, Ice Dispenser (Black (Storm Grey Pad))
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2305571 Whirlpool Gasket Assembly
14	Bracket, Control
15	WPW10152858 Whirlpool Refrigerator Dispenser Arm
15	Lever, Water Dispenser (Apollo Gray)
16	Overlay, Front Cover (Not Available, Order 20)
17	LED Display (Not Available, Order 20)
18	Front Cover, Housing (Not Available, Order 20)
19	WP3400906 Whirlpool Refrigerator Screw
20	Front Cover Assembly (Includes Items 19, 20 & 21) (Biscuit)
20	Front Cover Assembly (Includes Items 19, 20 & 21) (Universal Silver)
20	Front Cover Assembly (Includes Items 19, 20 & 21) (White)
20	Front Cover Assembly (Includes Items 19, 20 & 21) (Black)
21	WP2195051 Whirlpool Refrigerator Clip
22	WP2304673 Whirlpool Refrigerator Bracket
23	Sleeve, Delay Mechanism
