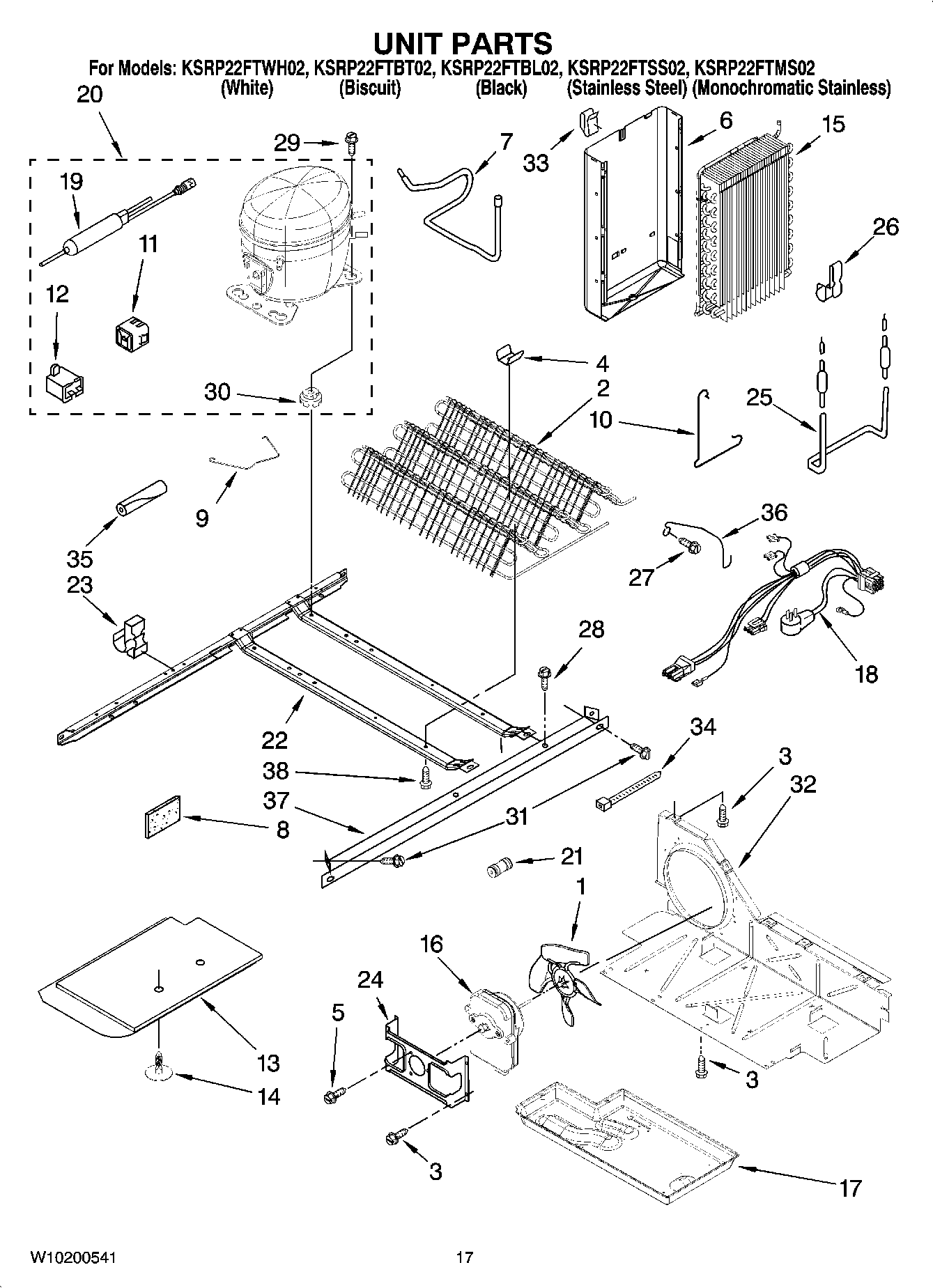

KSRP22FTMS02 10 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 5.0 oz. (R-134)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
1	W11458267 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489464 Whirlpool Refrigerator Screw
4	W10683556 Whirlpool Refrigerator Clip
5	WP8533993 Whirlpool Refrigerator Screw
6	2217195 Whirlpool Refrigerator Shield
7	2205764 Whirlpool Refrigerator Tube
8	W11553819 Whirlpool Refrigerator Insulation
9	2223314 Whirlpool Refrigerator Clip
10	Clamp
11	W10896198 Whirlpool Refrigerator Start Device
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	W11115203 Whirlpool Control Panel
14	489396 Whirlpool Refrigerator Clip
15	WP2188822 Whirlpool Refrigerator Evaporator
16	WP2188874 Whirlpool Refrigerator Condenser Motor
17	WPW10614158 Whirlpool Refrigerator Evaporator Tray
18	WPW10309395 Whirlpool Refrigerator Wire Harness
19	WPW10143759 Whirlpool Dryer Filter
20	W10139462 Whirlpool Refrigerator Compressor
21	WPW10334458 Whirlpool Refrigerator Connector
22	2304903 Whirlpool Refrigerator Frame
23	Clip, Wire & Tube
24	WP2181929 Whirlpool Refrigerator Bracket
25	WP2323197 Whirlpool Refrigerator Heater
26	W11623163 Whirlpool Refrigerator Clip
27	WP489478 Whirlpool Refrigerator Screw
28	WP489427 Whirlpool Refrigerator Screw
30	WP4387558 Whirlpool Refrigerator Compressor Grommet
30	876811 Whirlpool Grommet
31	489340 Whirlpool Refrigerator Screw
32	W10896764 Whirlpool Refrigerator Air Baffle
33	Clip, Heat Shield
34	WPW10339879 Whirlpool Wire Tie
35	SLEEVE
36	Guard, Fan
37	Unit Mounting Rail
38	W11544659 Whirlpool Refrigerator Screw
