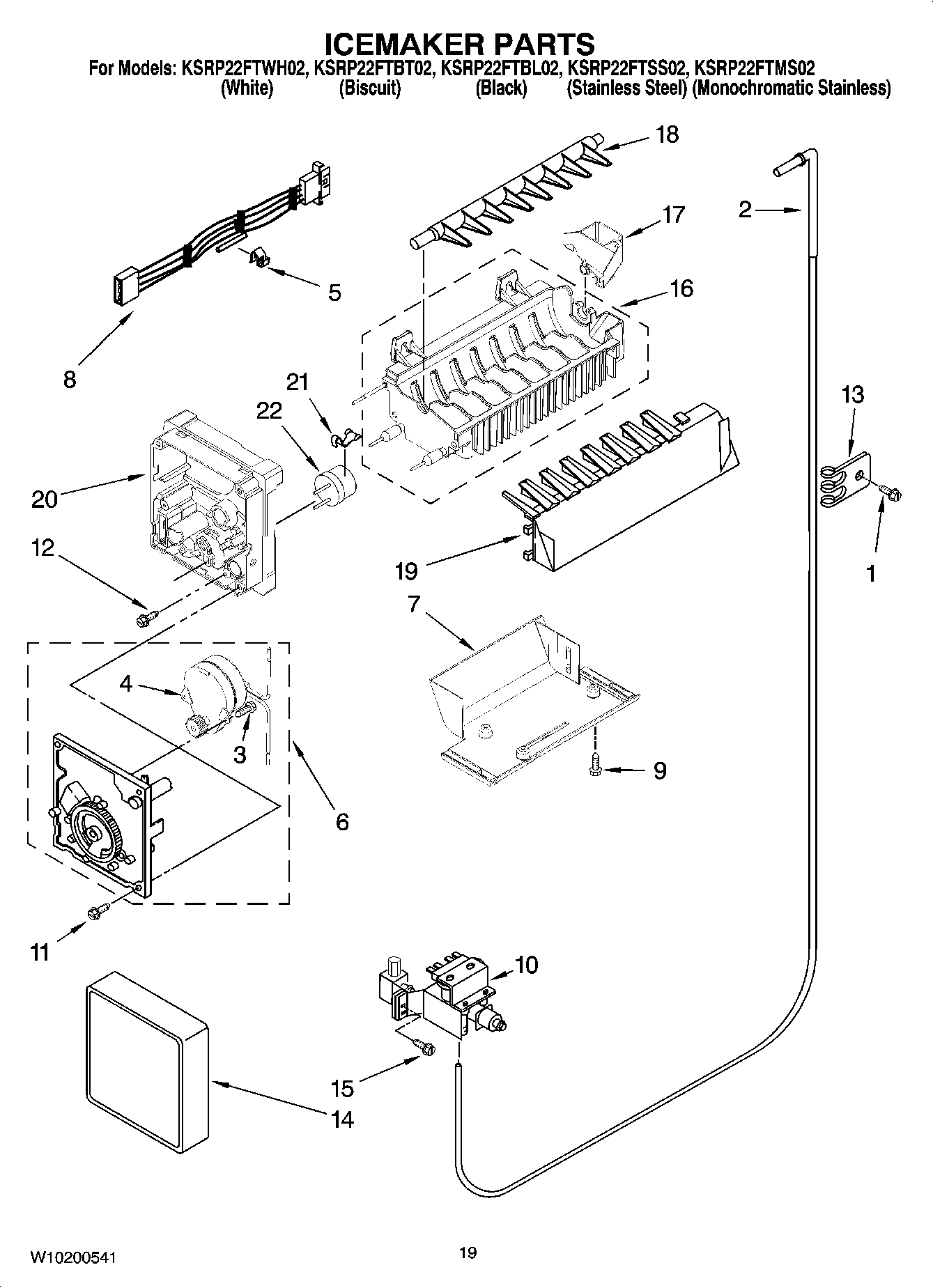

KSRP22FTMS02 11 – ICEMAKER PARTS

Products

Position	Product
2	WPW10140630 Whirlpool Refrigerator Fitting
3	489136 Whirlpool Refrigerator Screw
4	Motor (Not Serviced, Order 6)
5	WP628379 Whirlpool Refrigerator Clip
6	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
7	Bracket, Icemaker Mounting
8	WPW10309401 Whirlpool Refrigerator Wire Harness
9	WP489478 Whirlpool Refrigerator Screw
10	W10822681 Whirlpool Refrigerator Water Inlet Valve
11	WP681249 Whirlpool Screw Assembly
12	8533917 Whirlpool Refrigerator Screw
13	WP488366 Whirlpool Refrigerator Clamp
14	WPW10289690 Whirlpool Ice Maker Cover
15	WPW10141625 Whirlpool Refrigerator Screw Assembly
16	WPW10122550 Whirlpool Refrigerator Ice Mold
17	WPW10272168 Whirlpool Refrigerator Water Fill Cup
18	626753 Whirlpool Refrigerator Ejector Arm
19	W10297245 Whirlpool Refrigerator Arm Stripper
20	WP2195914 Whirlpool Refrigerator Ice Maker Housing
21	WP2315522 Whirlpool Refrigerator Clip
22	WP627985 Whirlpool Icemaker Cycling Thermostat
100	WPW10190961 Whirlpool Ice Maker
