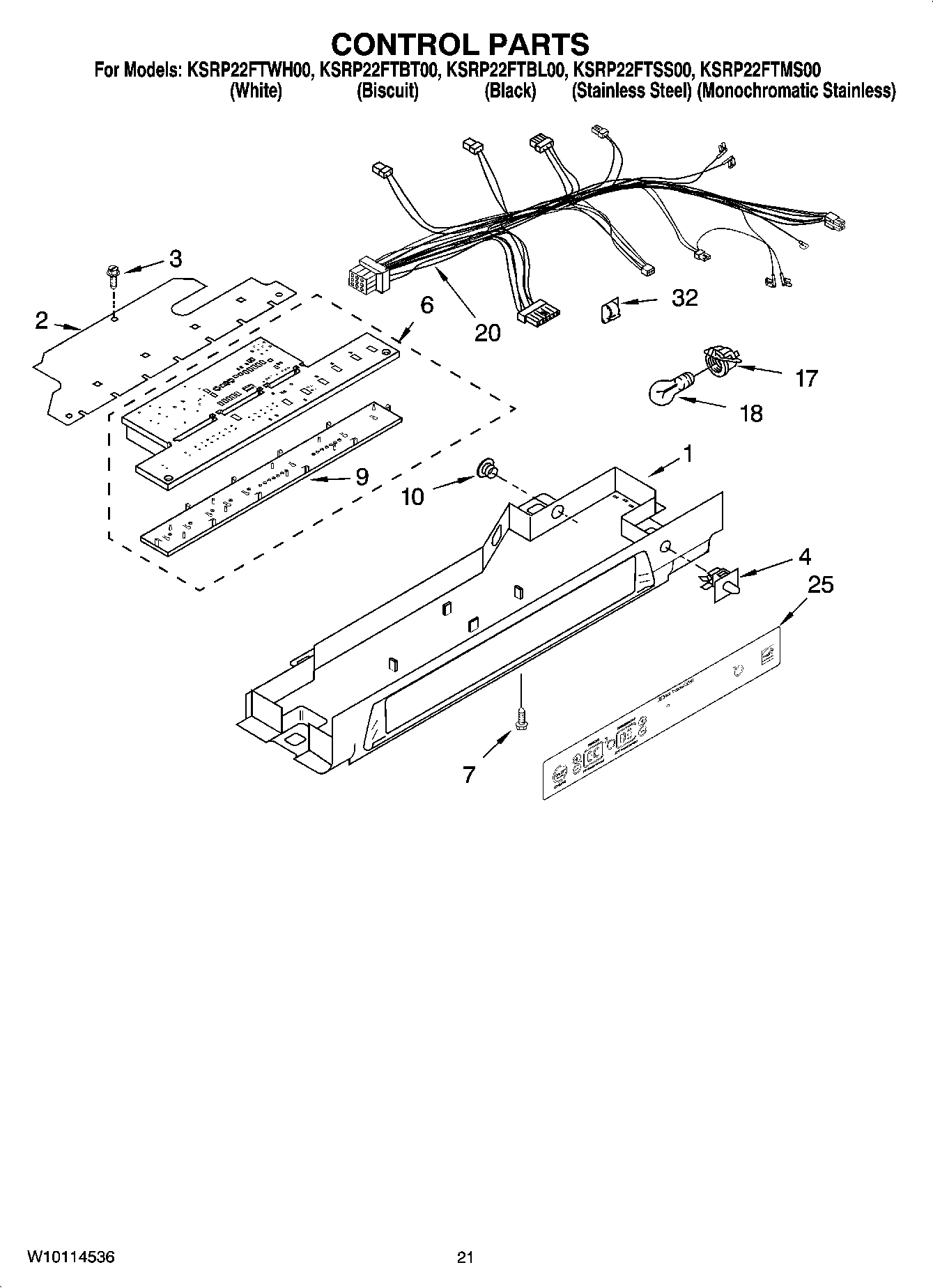

KSRP22FTSS00 12 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)admin2025-04-26T11:55:13+00:00KSRP22FTSS00 12 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| Enamel, Black (1 Qt. Uncut) |
| WPL 799833 |
| WPL ARI99980A9 |
| 8171357 Whirlpool Spray Nozzle |
| PAINT, TOUCH-UP (1/2OZ. GRAPHITE) |
| PAINT, BULK (1 QT. GRAPHITE) |
| 285006 Whirlpool Spray |
| 72032 Whirlpool Touch Up Paint Black |
| WPL 8201806 |
| TORX SCR |
| TAPE, VINYL (3/4 X 108``) |
| PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) |
| 799344 Whirlpool Refrigerator Paint |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 212643 Whirlpool Refrigerator Permagum Sealer |
| 350942 Whirlpool Spray Paint |
| 4392899 Whirlpool Biscuit Touch-Up Paint |
| 4392901 Whirlpool Biscuit Spray Paint |
| 833938 Whirlpool Refrigerator Terminal |
| Torx Key |
| WP542638 Whirlpool Refrigerator Grease |
| WP505587 Whirlpool Refrigerator Sealer |
| WP503695 Whirlpool Refrigerator Sealer |
| 1 | Control Box |
| 2 | Cover, Ctrl Box |
| 3 | WP3196557 Whirlpool Screw |
| 4 | WP2149705 Whirlpool Refrigerator Door Switch |
| 6 | Electronic Control |
| 7 | WP67006908 Whirlpool Refrigerator Screw |
| 9 | Insert, Control Board (Not Serviceable, Order 6) |
| 10 | 940014 Whirlpool Refrigerator Primary Button Plug |
| 17 | 4387478 Whirlpool Refrigerator Light Socket |
| 18 | RANGE ONLY 40W 120V APPL BULB |
| 20 | Control Box Harness |
| 25 | Overlay, Control Box |
| 32 | WP1115374 Whirlpool Refrigerator Clip |
