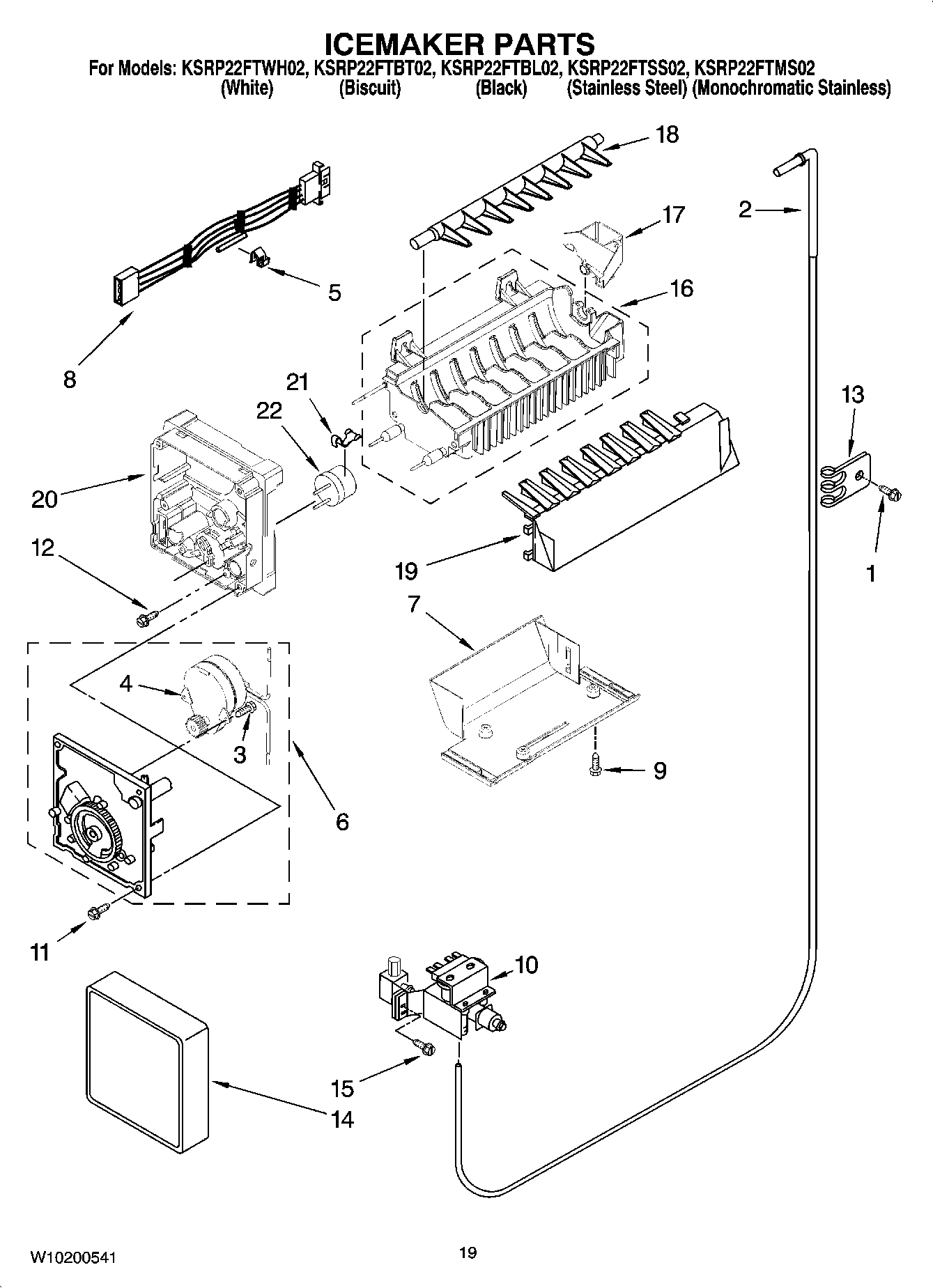

KSRP22FTSS02 11 – ICEMAKER PARTSadmin2025-04-26T11:56:43+00:00KSRP22FTSS02 11 – ICEMAKER PARTS ProductsPositionProduct2WPW10140630 Whirlpool Refrigerator Fitting3489136 Whirlpool Refrigerator Screw4Motor (Not Serviced, Order 6)5WP628379 Whirlpool Refrigerator Clip68201515 Whirlpool Refrigerator Motor and Gear Module Kit7Bracket, Icemaker Mounting8WPW10309401 Whirlpool Refrigerator Wire Harness9WP489478 Whirlpool Refrigerator Screw10W10822681 Whirlpool Refrigerator Water Inlet Valve11WP681249 Whirlpool Screw Assembly128533917 Whirlpool Refrigerator Screw13WP488366 Whirlpool Refrigerator Clamp14WPW10289690 Whirlpool Ice Maker Cover15WPW10141625 Whirlpool Refrigerator Screw Assembly16WPW10122550 Whirlpool Refrigerator Ice Mold17WPW10272168 Whirlpool Refrigerator Water Fill Cup18626753 Whirlpool Refrigerator Ejector Arm19W10297245 Whirlpool Refrigerator Arm Stripper20WP2195914 Whirlpool Refrigerator Ice Maker Housing21WP2315522 Whirlpool Refrigerator Clip22WP627985 Whirlpool Icemaker Cycling Thermostat100WPW10190961 Whirlpool Ice Maker
