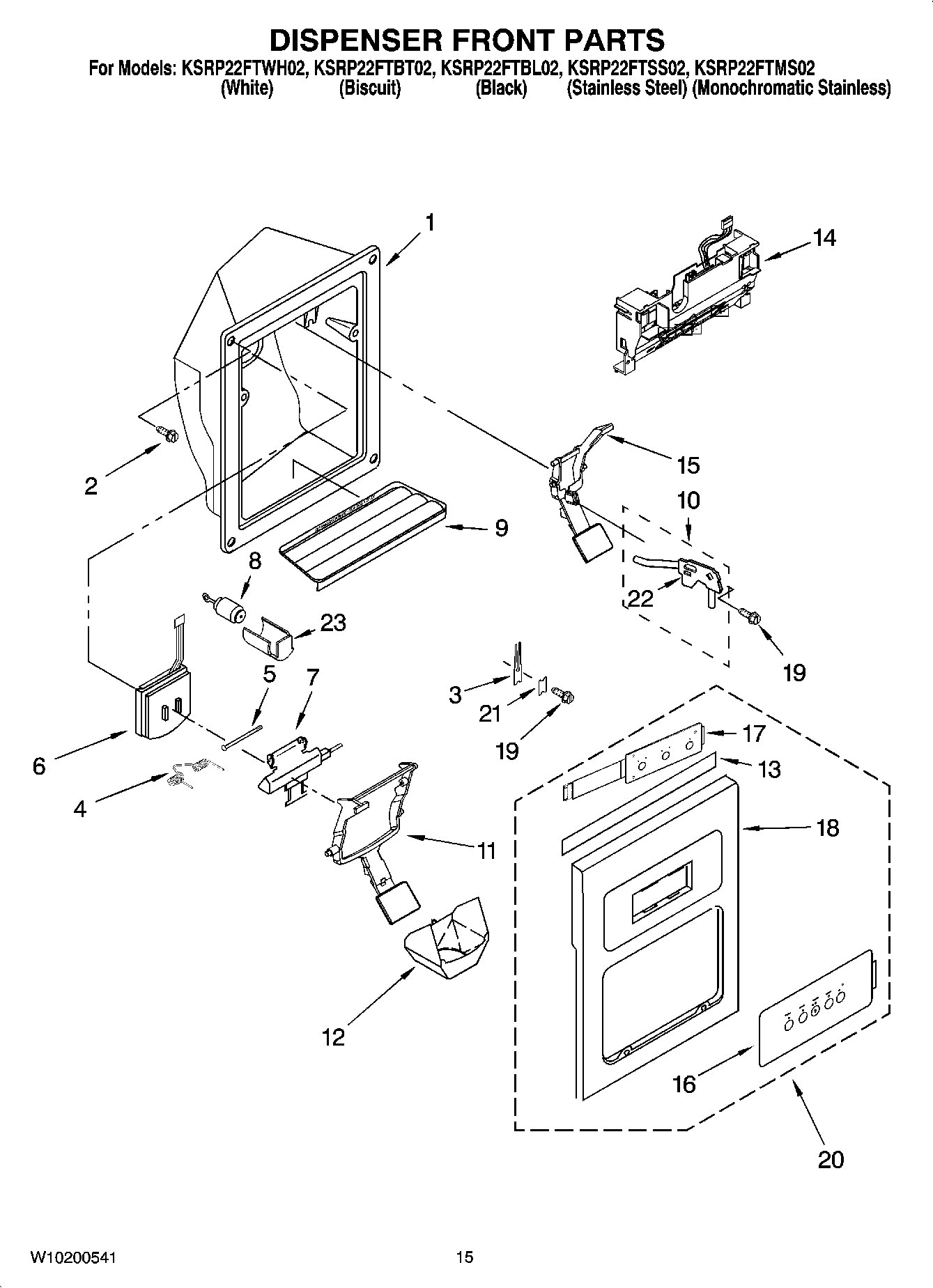

KSRP22FTWH02 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9W10171992 Whirlpool Refrigerator Grille
9WP2206671W Whirlpool Refrigerator Grille
9Grille, Overflow (Biscuit)
9WP2206671B Whirlpool Refrigerator Grille
108201537 Whirlpool Water Tubing Assembly
11Lever, Ice Dispenser (White (White Shadow Pad))
11Lever, Ice Dispenser (Apollo Gray)
11Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
11Lever, Ice Dispenser (Black (Storm Grey Pad))
12WP2180224 Whirlpool Dispenser Funnel Guide
132305571 Whirlpool Gasket Assembly
14Bracket, Control
15WPW10152858 Whirlpool Refrigerator Dispenser Arm
15Lever, Water Dispenser (Apollo Gray)
16Overlay, Front Cover (Not Available, Order 20)
17LED Display (Not Available, Order 20)
18Front Cover, Housing (Not Available, Order 20)
19WP3400906 Whirlpool Refrigerator Screw
20Front Cover Assembly (Includes Items 19, 20 & 21) (Biscuit)
20Front Cover Assembly (Includes Items 19, 20 & 21) (Universal Silver)
20Front Cover Assembly (Includes Items 19, 20 & 21) (White)
20Front Cover Assembly (Includes Items 19, 20 & 21) (Black)
21WP2195051 Whirlpool Refrigerator Clip
22WP2304673 Whirlpool Refrigerator Bracket
23Sleeve, Delay Mechanism
