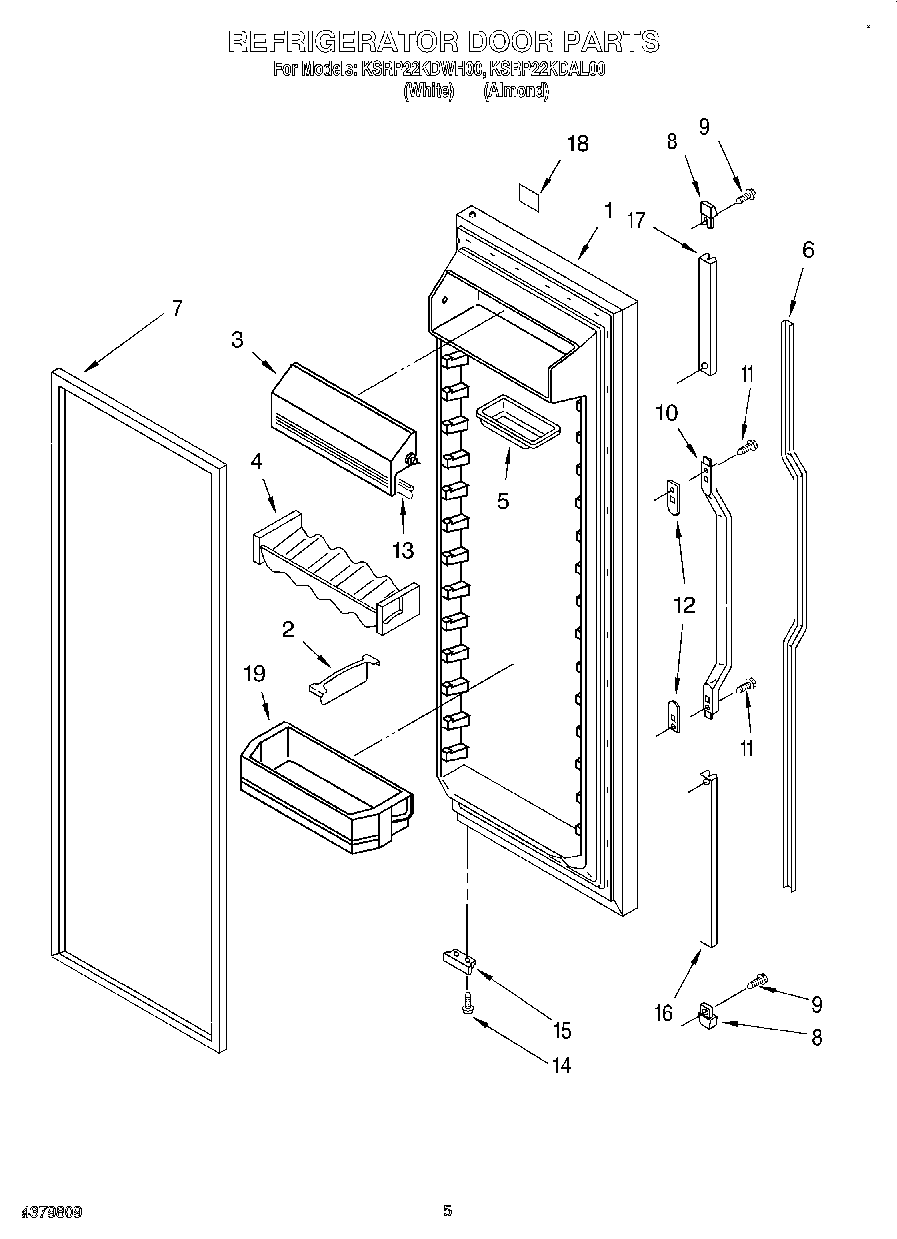

KSRP22KDAL00 04 – REFRIGERATOR DOORadmin2025-04-26T11:55:08+00:00KSRP22KDAL00 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes No.7) (Almond) |
| 1 | Refrigerator Door (Includes No.7) (White) |
| 2 | Divider, Door Bin (2) |
| 3 | Door, Compartment |
| 4 | WPL 1125981 |
| 5 | Butter, Tray |
| 6 | Insert, Handle (Almond) |
| 6 | Insert, Handle (White) |
| 7 | 2159073 Whirlpool Refrigerator Door Gasket |
| 8 | End Cap (2) |
| 9 | Screw |
| 10 | Handle |
| 12 | Spacer, Handle |
| 13 | Gasket, Door Compartment |
| 14 | WP489483 Whirlpool Screw |
| 15 | Bracket, Door Stop |
| 16 | Retainer, Insert |
| 17 | Retainer, Insert |
| 18 | Nameplate (White Model) |
| 18 | Nameplate (Almond Model) |
| 19 | Bin, Door Shelf |
