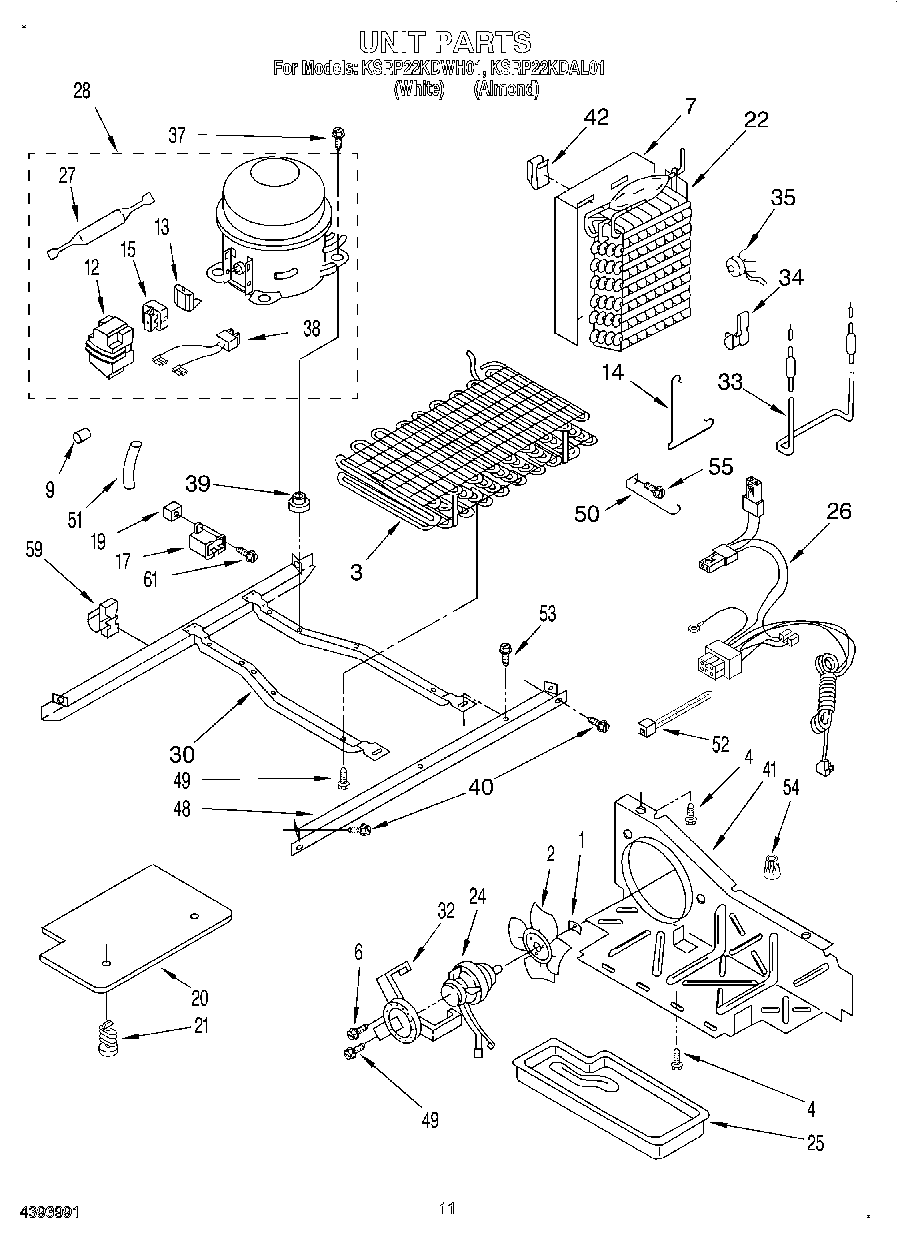

KSRP22KDWH01 08 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
9	WP2158826 Whirlpool Refrigerator Dampener
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
14	Clamp
15	Relay (See Overload)
17	Capacitor
19	Screw Grommet
20	Cover-Unit Btm.
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Harness, Intermediate
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
30	2304903 Whirlpool Refrigerator Frame
32	Bracket, Motor
33	WP2323197 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	SLEEVE
52	Strap
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WP489478 Whirlpool Refrigerator Screw
59	Clip, Wire
61	VALVE, ACCESS (1/2“)
61	WP978025 Whirlpool Refrigerator Valve
61	978027 Whirlpool Refrigerator Primary Valve
61	W11693756 Whirlpool Screw Assembly
61	978030 Whirlpool Refrigerator Valve
61	876764 Whirlpool Refrigerator Primary Valve
61	VALVE, ACCESS (5/8“)
61	978026 Whirlpool Refrigerator Primary Valve
