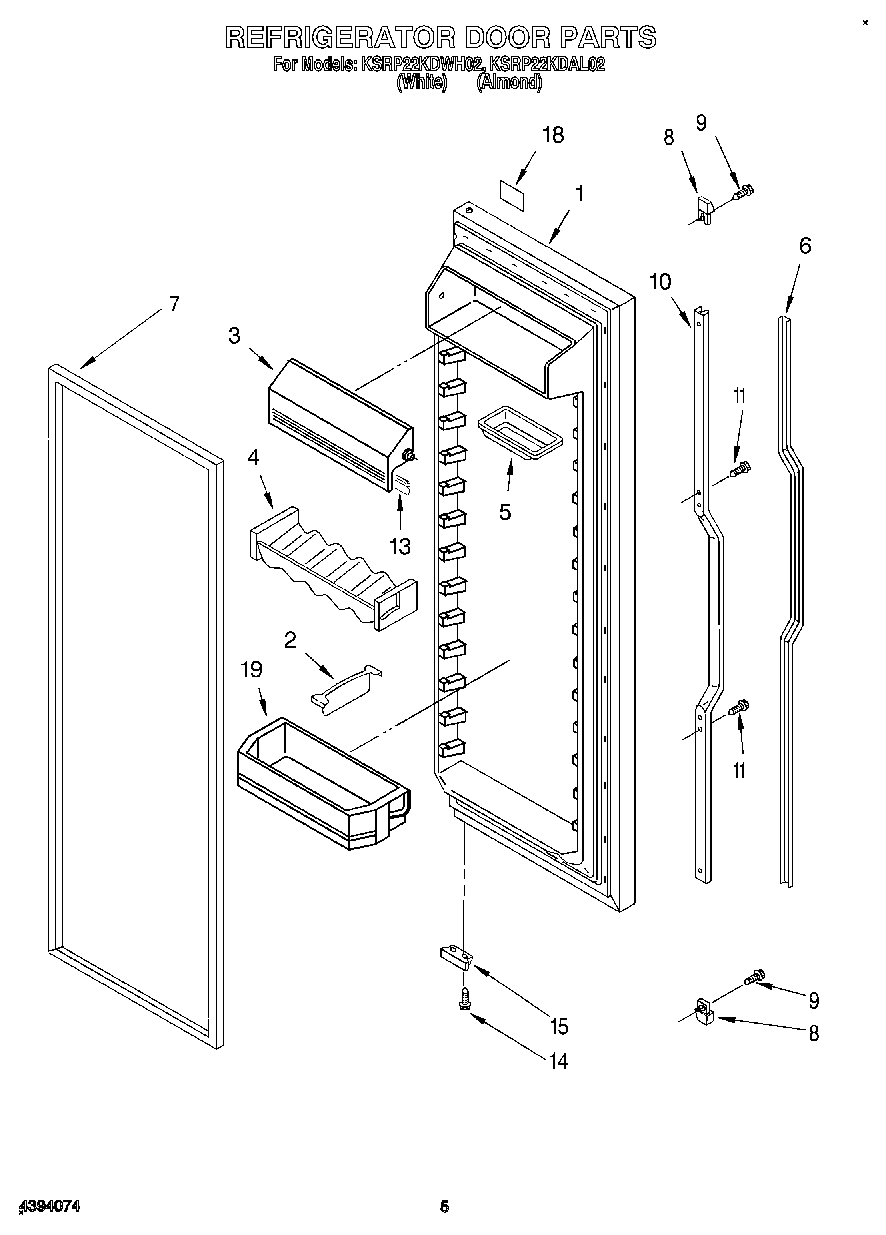

KSRP22KDWH02 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.7) (Almond)
1Refrigerator Door (Includes No.7) (White)
2Divider, Door Bin (2)
3Door, Compartment
4WPL 1125981
5Butter, Tray
6Insert, Handle (Almond)
6Insert, Handle
72159073 Whirlpool Refrigerator Door Gasket
8End Cap (2)
9Screw
10Retainer, Insert
11WP489463 Whirlpool Refrigerator Screw
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15Bracket, Door Stop
18Nameplate (Almond Model)
18Nameplate (White Model)
19Bin, Door Shelf
