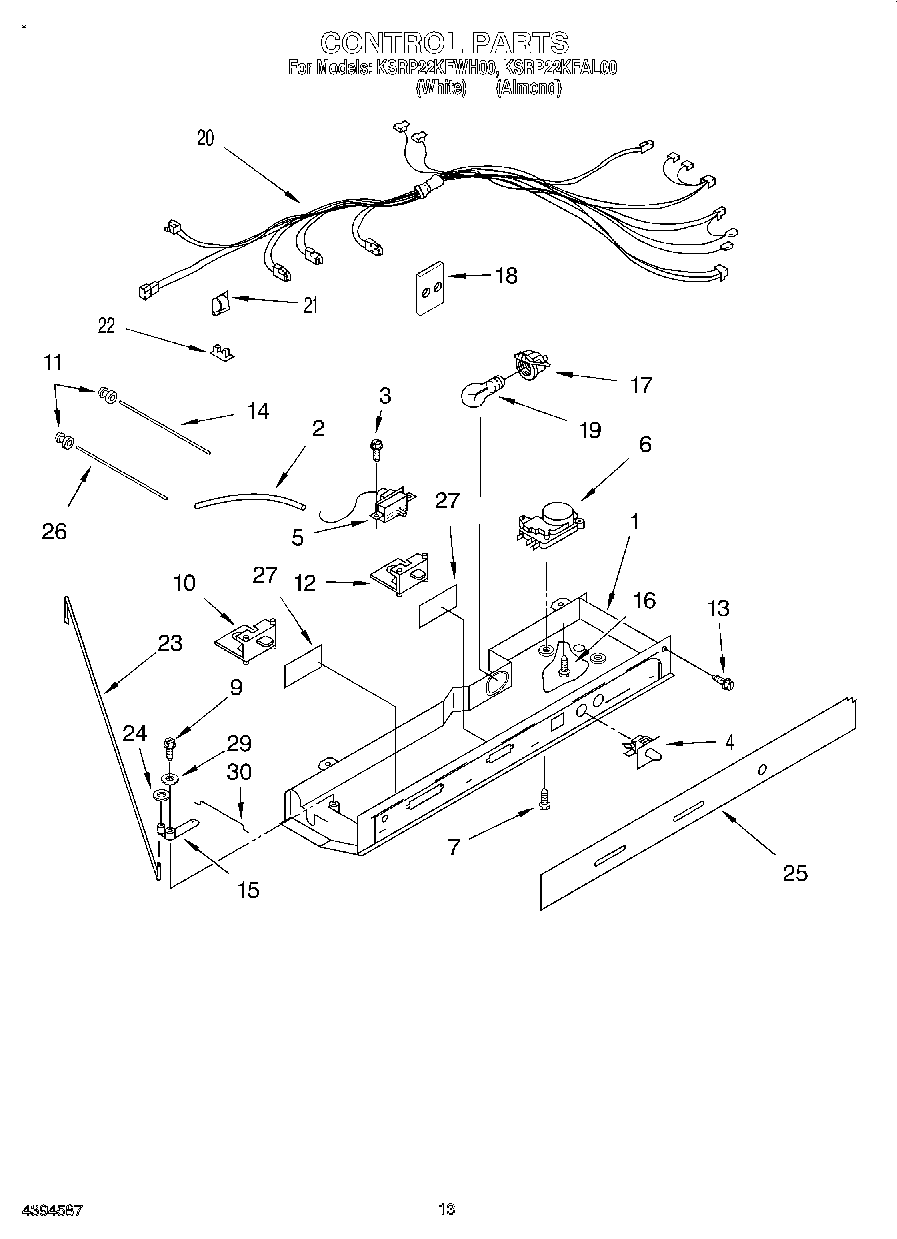

KSRP22KFAL00 09 – CONTROL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2198060
	W11729596 Whirlpool Ice Maker Field Install Kit
	WPL LIT2198030
	Torx Key
	WPL LIT2194922
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2315562 Whirlpool Refrigerator Thermostat
6	Defrost Timer (10 Hr.)
7	489392 Whirlpool Refrigerator Screw
9	627068 Whirlpool Refrigerator Screw
10	2181741 Whirlpool Refrigerator Slide
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	2161306 Whirlpool Refrigerator Arm Pivot
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	2172931 Whirlpool Refrigerator Shield
19	W11679940 Whirlpool Refrigerator Light Bulb Assembly
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2161308 Whirlpool Refrigerator Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar (FC)
27	Window
29	489203 Whirlpool Refrigerator Washer
30	350930 Whirlpool White Spray Paint
30	2161307 Whirlpool Refrigerator Rod
30	WPL 799833
30	72032 Whirlpool Touch Up Paint Black
30	606755 Whirlpool Refrigerator Bag
30	511873 Whirlpool Refrigerator Paint
30	350942 Whirlpool Spray Paint
30	212643 Whirlpool Refrigerator Permagum Sealer
30	Almond (Uncut)
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	833938 Whirlpool Refrigerator Terminal
30	876370 Whirlpool Refrigerator Insulation
30	285006 Whirlpool Spray
30	WPL 876029
30	Enamel, Black (1 Qt. Uncut)
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108``)
30	WP542638 Whirlpool Refrigerator Grease
30	WP505587 Whirlpool Refrigerator Sealer
30	WP503695 Whirlpool Refrigerator Sealer
30	350956 Whirlpool Spray Assembly
