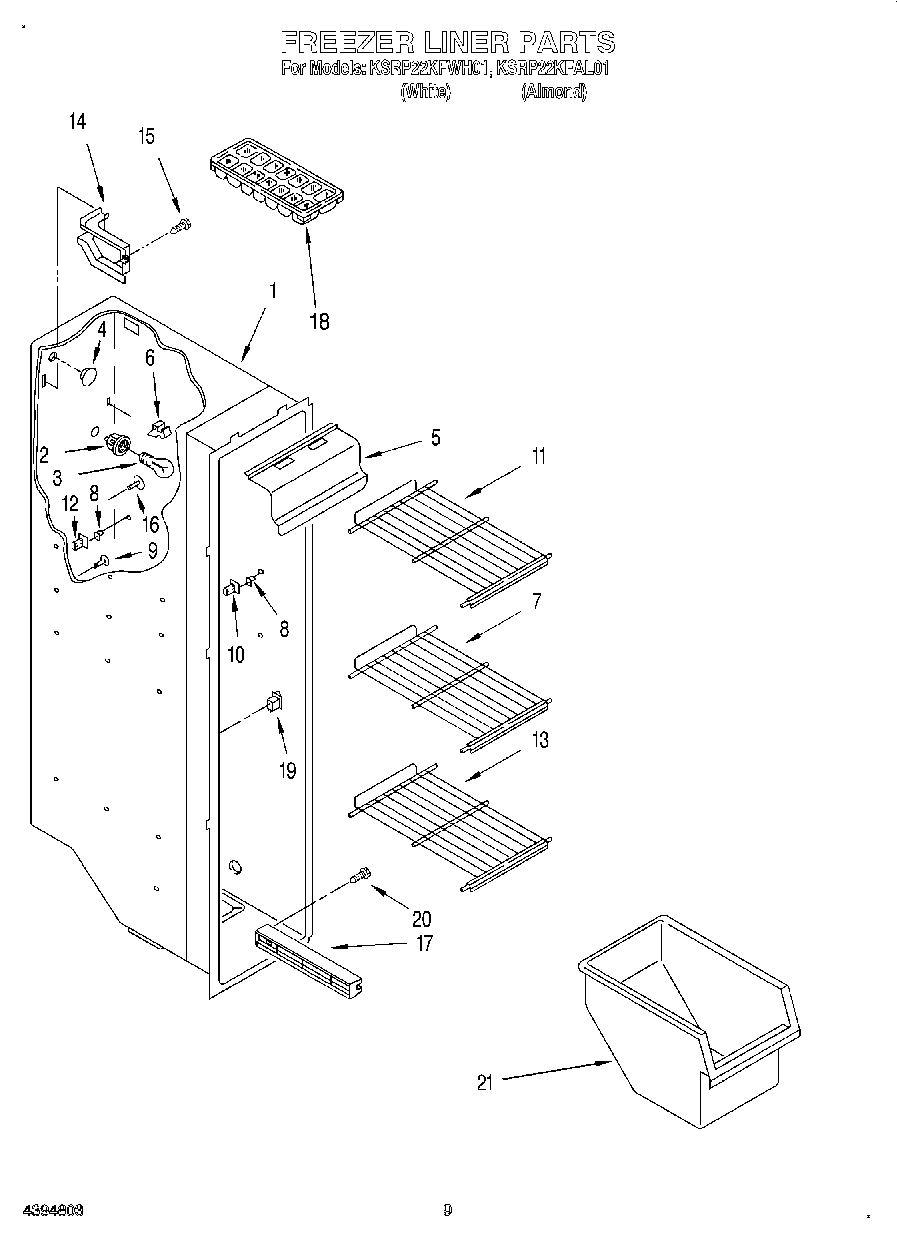

KSRP22KFWH01 06 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	SOCKET
3	RANGE ONLY 40W 120V APPL BULB
4	940014 Whirlpool Refrigerator Primary Button Plug
5	WP2155595 Whirlpool Refrigerator Light Lens
6	2215823 Whirlpool Refrigerator Clip
7	Shelf
8	Stud, Support
9	Grommet
10	Stud, Front R.S.
11	Shelf (2)
11	WP2174249K Whirlpool Refrigerator Wire Shelf
12	Stud, Rear R.S.
13	Shelf
14	Cover, Wiring
15	SCREW
16	WP941839 Whirlpool Refrigerator Button Plug
17	Slide, Basket (Left Side)
17	W10845583 Whirlpool Refrigerator Track
18	WP841180A Whirlpool Microwave Glass Turntable Tray
19	W11384469 Whirlpool Door Switch
20	718257 Whirlpool Dishwasher Screw
21	Bin, Freezer
