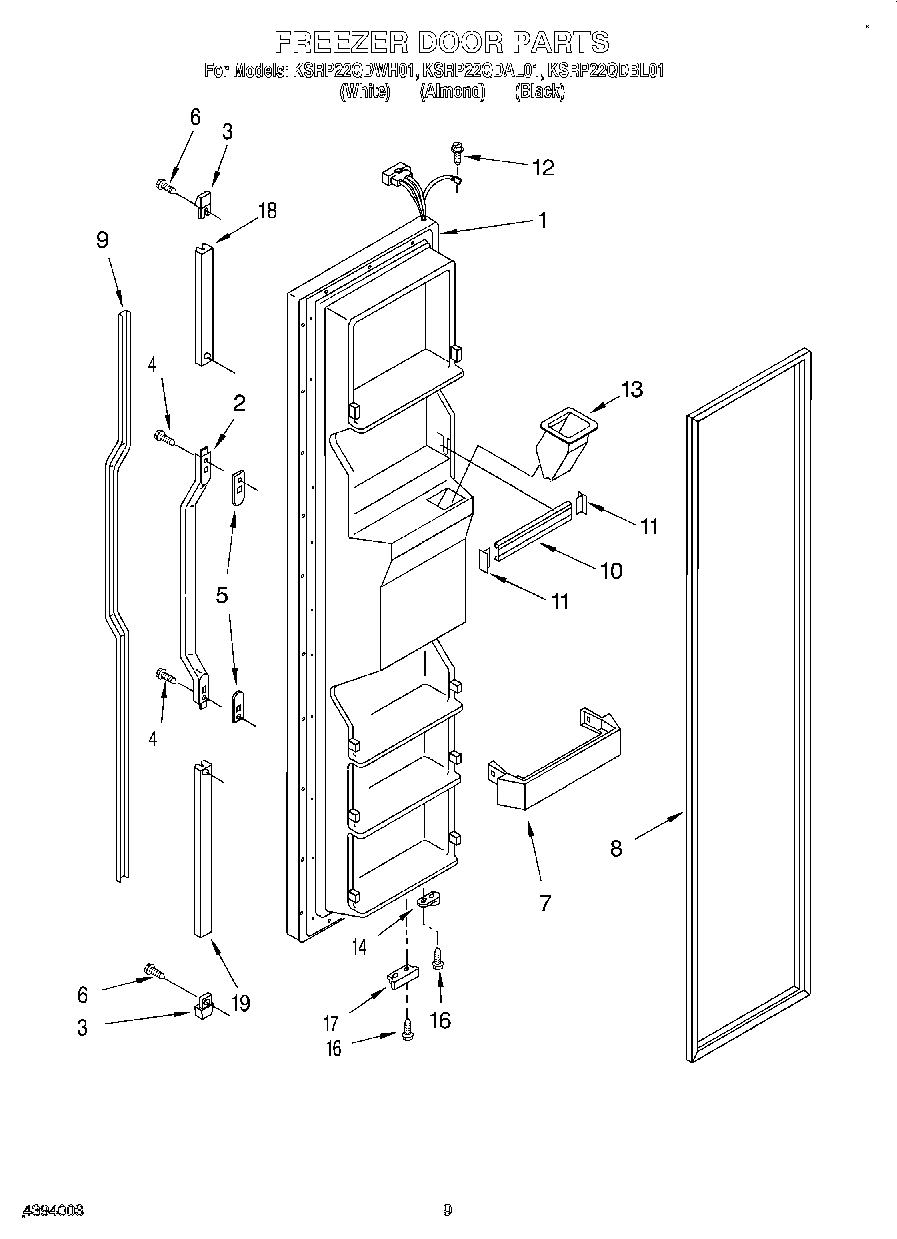

KSRP22QDAL01 06 – FREEZER DOORadmin2025-04-26T11:56:40+00:00KSRP22QDAL01 06 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (Black) |
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (Almond) |
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (White) |
| 2 | Handle |
| 3 | End Cap (2) |
| 5 | Spacer, Handle |
| 6 | Screw |
| 7 | Trivet, Shelf (4) |
| 8 | 2159072 Whirlpool Refrigerator FIP Gasket |
| 9 | Insert, Handle (White) |
| 9 | Insert, Handle (Black) |
| 9 | Insert, Handle (Almond) |
| 10 | WPW10307490 Whirlpool Door Trim Assembly |
| 11 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 12 | WP488234 Whirlpool Air Conditioner Screw |
| 13 | Chute, Ice |
| 14 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 16 | WP489483 Whirlpool Screw |
| 17 | Bracket, Door Stop |
| 17 | Bracket, Door Stop |
| 18 | Retainer, Insert |
| 19 | Retainer, Insert |
