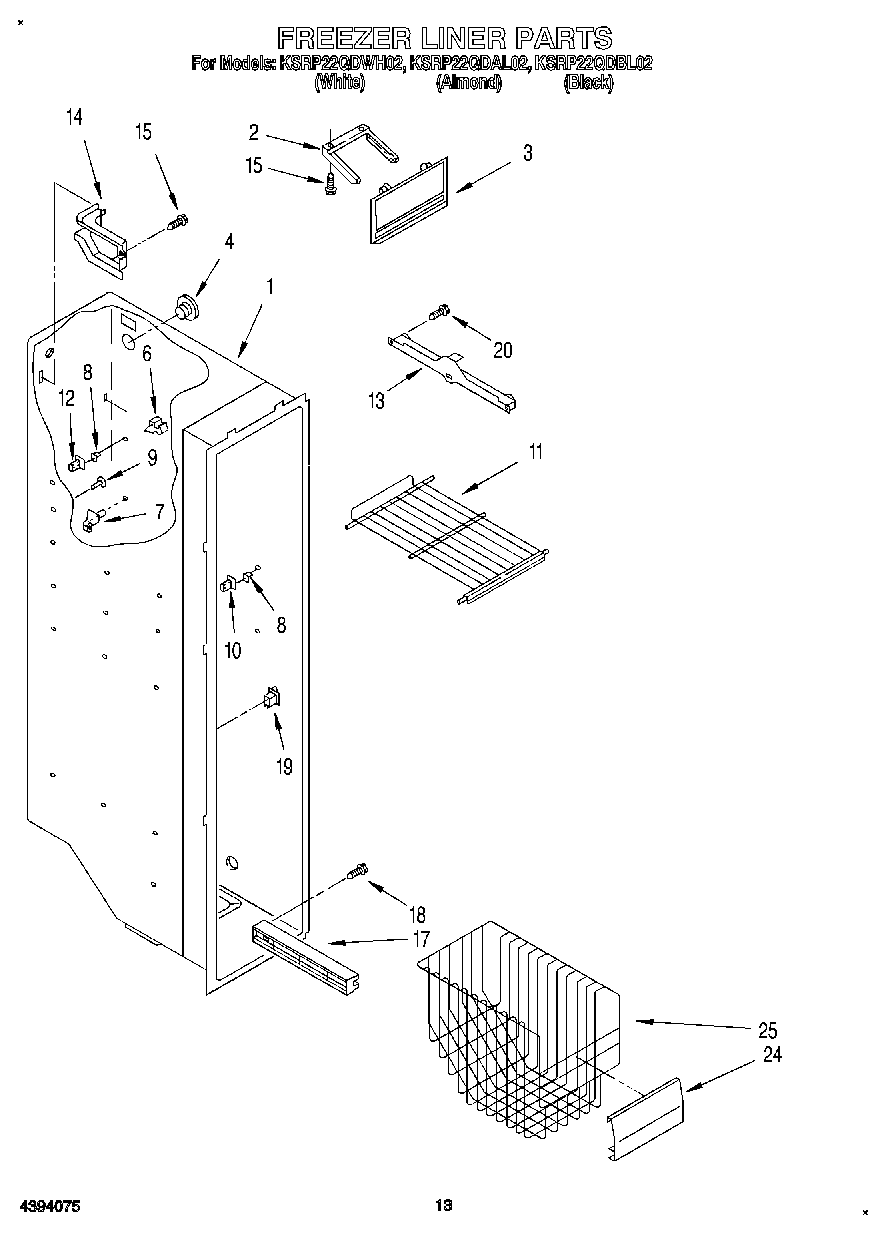

KSRP22QDWH02 08 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
4	940014 Whirlpool Refrigerator Primary Button Plug
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
9	Grommet
10	Stud, Front R.S.
11	WP2174249K Whirlpool Refrigerator Wire Shelf
11	Shelf (2)
12	Stud, Rear R.S.
13	W10845583 Whirlpool Refrigerator Track
13	W10845585 Whirlpool Refrigerator Track
14	Cover, Wiring
15	SCREW
17	Slide, Basket (Right Side (2))
17	Slide, Basket (Left Side (2))
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	718257 Whirlpool Dishwasher Screw
24	Basket, Front
25	Freezer Bin
