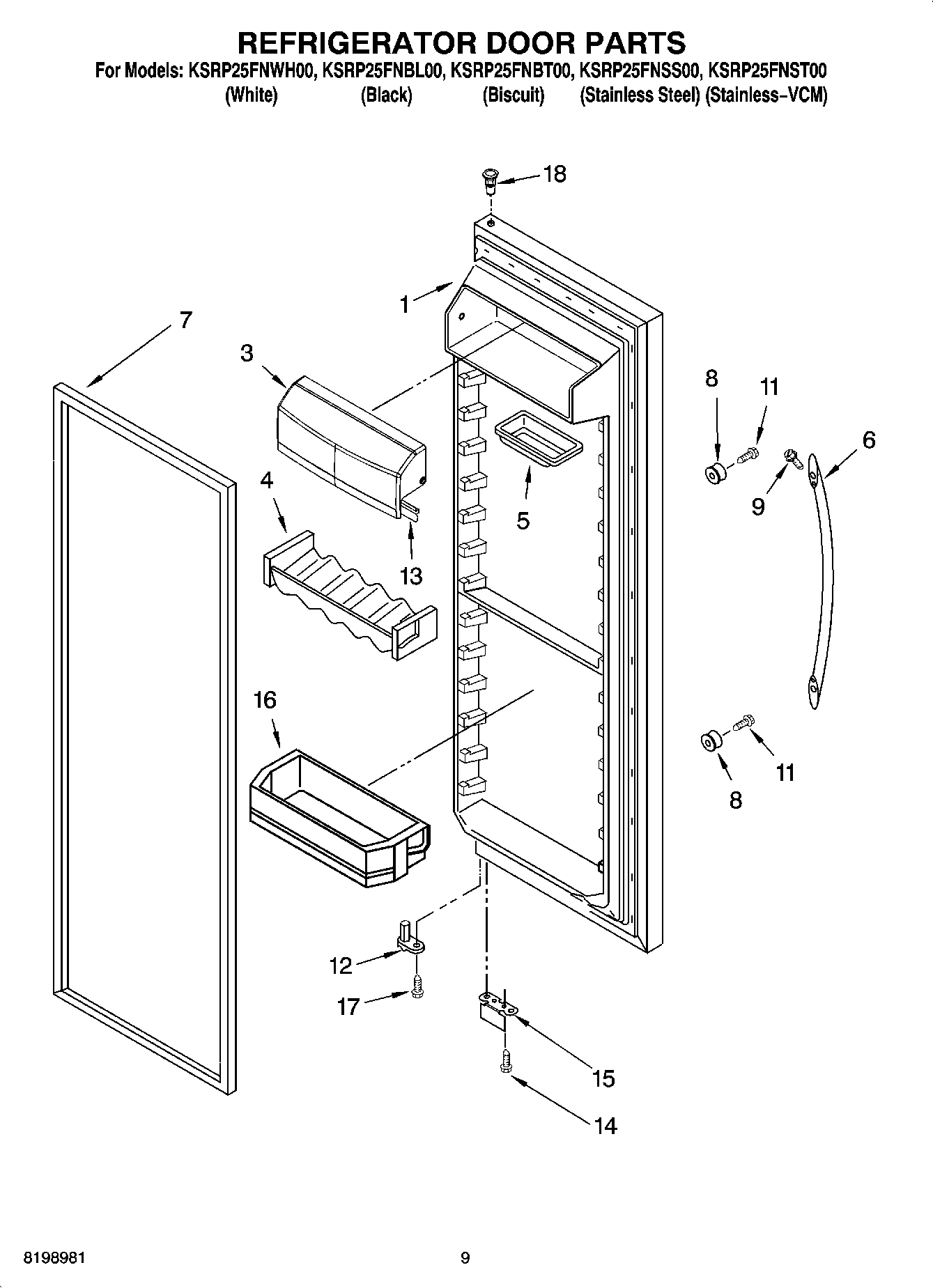

KSRP25FNBT00 06 – REFRIGERATOR DOOR PARTS

KSRP25FNBT00 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRP25FNBT00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 7) (White)
1Refrigerator Door (Includes 7) (Biscuit)
1Refrigerator Door (Includes 7) (Black)
1Refrigerator Door (Includes 7) (Stainless-VCM)
1Refrigerator Door (Includes 7) (Stainless Steel)
3Door, Compartment
4Beverage Holder
5Butter Tray
6Handle (White)
6Handle (Biscuit)
6Handle (Stainless Steel)
6Handle (Black)
72159075 Whirlpool Door Gasket Seal
72159083 Whirlpool Gasket Door
8WPW10170540 Whirlpool Screw
9Screw
9Set Screw (Black)
11WP488163 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15WP2206629B Whirlpool Refrigerator Bracket
16Shelf Bin (3)
17WP3400012 Whirlpool Refrigerator Screw
18Thimble, Top (For White, Biscuit, and Black Models)
18WP2182181 Whirlpool Refrigerator Thimble
