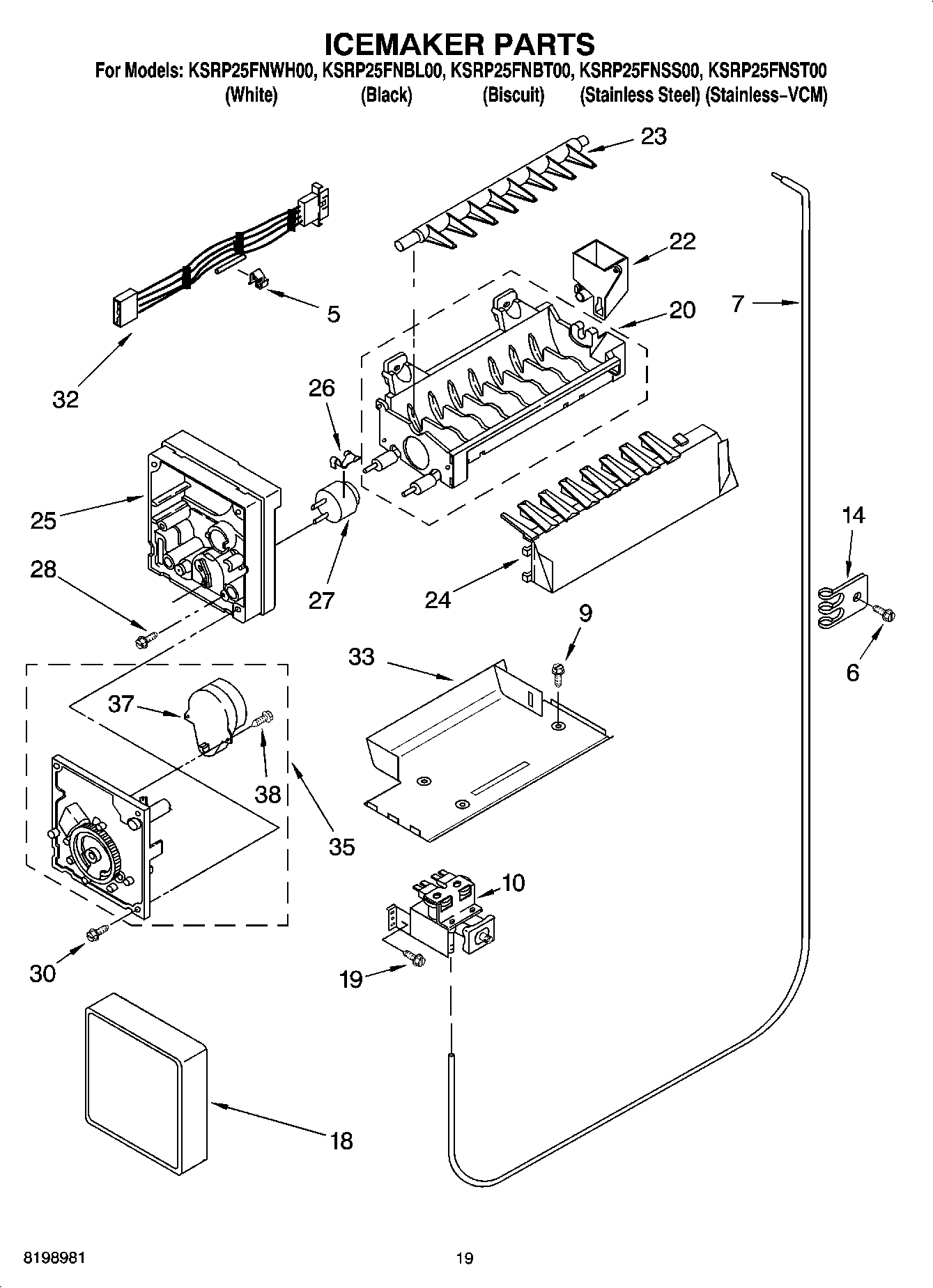

KSRP25FNWH00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

KSRP25FNWH00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

KSRP25FNWH00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 799833
212643 Whirlpool Refrigerator Permagum Sealer
Enamel, Black (1 Qt. Uncut)
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 876029
285006 Whirlpool Spray
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
876370 Whirlpool Refrigerator Insulation
WPL ARI100275A
WPL ARI100274A
WPL ARI100273A
WPL ARI100272A
Ice Container Assembly
WPL ARI100276A
72032 Whirlpool Touch Up Paint Black
TAPE, VINYL (3/4 X 108“)
5WP628379 Whirlpool Refrigerator Clip
7WP2256096 Whirlpool Refrigerator Fitting
9WP489478 Whirlpool Refrigerator Screw
10W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
14WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24W10297244 Whirlpool Refrigerator Arm Strip
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
32WP2187467 Whirlpool Refrigerator Wire Harness
33WP2212322 Whirlpool Refrigerator Bracket
358201515 Whirlpool Refrigerator Motor and Gear Module Kit
37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
