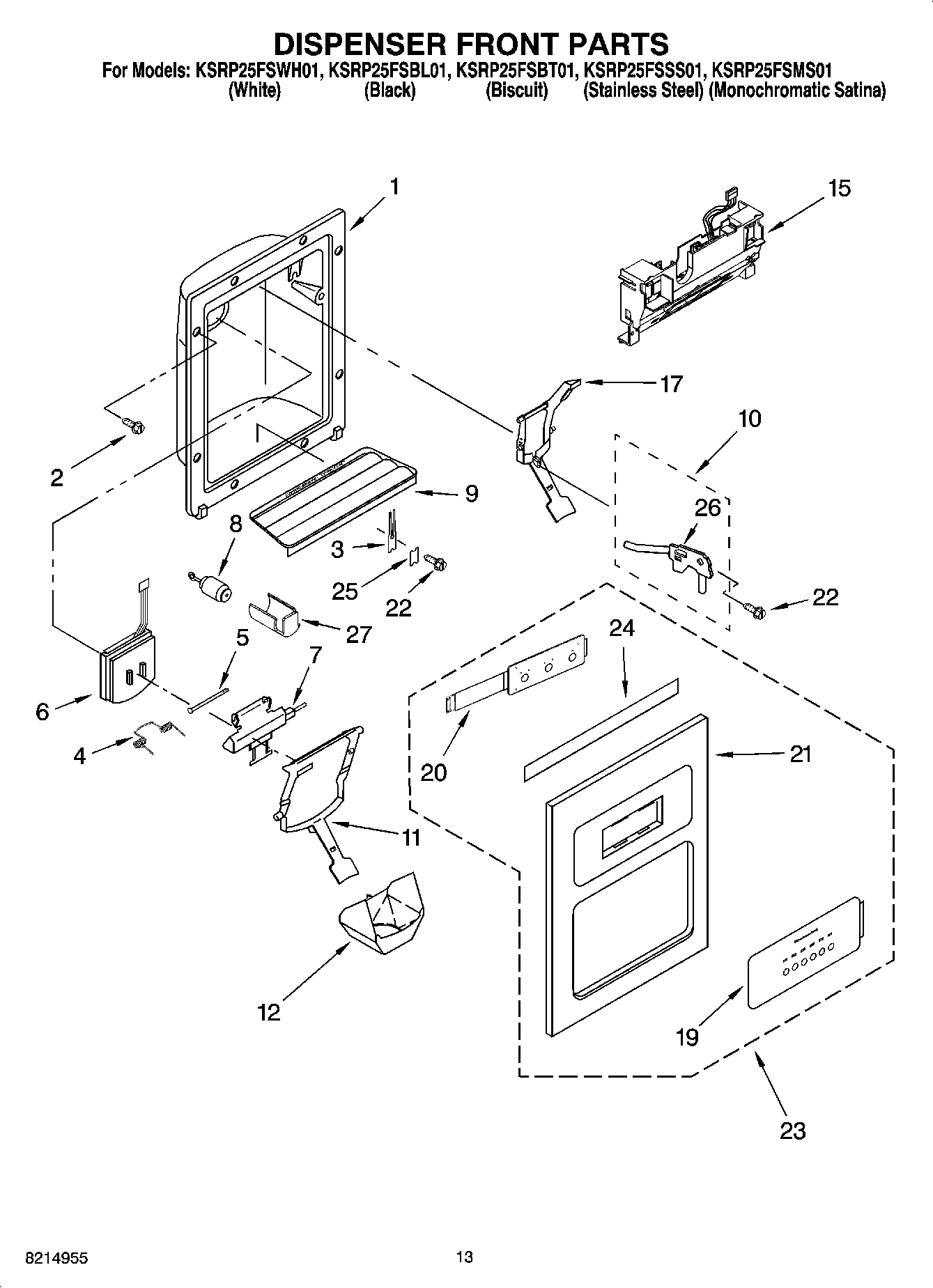

KSRP25FSSS01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9W11106297 Whirlpool Refrigerator Grille
9WP2206670B Whirlpool Dispenser Tray
9WP2206670T Whirlpool Refrigerator Grille
9WP2206670W Whirlpool Dispenser Tray
108201537 Whirlpool Water Tubing Assembly
11Lever, Ice Dispenser (White (White Shadow Pad))
11Lever, Ice Dispenser (Apollo Gray)
11Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
11Lever, Ice Dispenser (Black (Storm Grey Pad))
12WP2180224 Whirlpool Dispenser Funnel Guide
15Bracket, Control
17WPW10152858 Whirlpool Refrigerator Dispenser Arm
17Lever, Water Dispenser (Apollo Gray)
19Overlay, Front Cover (Not Available, Order 23)
20LED Display (Not Available Order 23)
21Front Cover, Housing (Not Available Order 23)
22WP3400906 Whirlpool Refrigerator Screw
23Front Cover Assembly (Includes Items 19, 20, 21 & 24) (Universal Silver)
23Front Cover Assembly (Includes Items 16, 19, 20 & 21) (White)
23Front Cover Assembly (Includes Items 16, 19, 20 & 21) (Biscuit)
23Front Cover Assembly (Includes Items 16, 19, 20 & 21) (Black)
242305571 Whirlpool Gasket Assembly
25WP2195051 Whirlpool Refrigerator Clip
26WP2304673 Whirlpool Refrigerator Bracket
27Sleeve, Delay Mechanism
