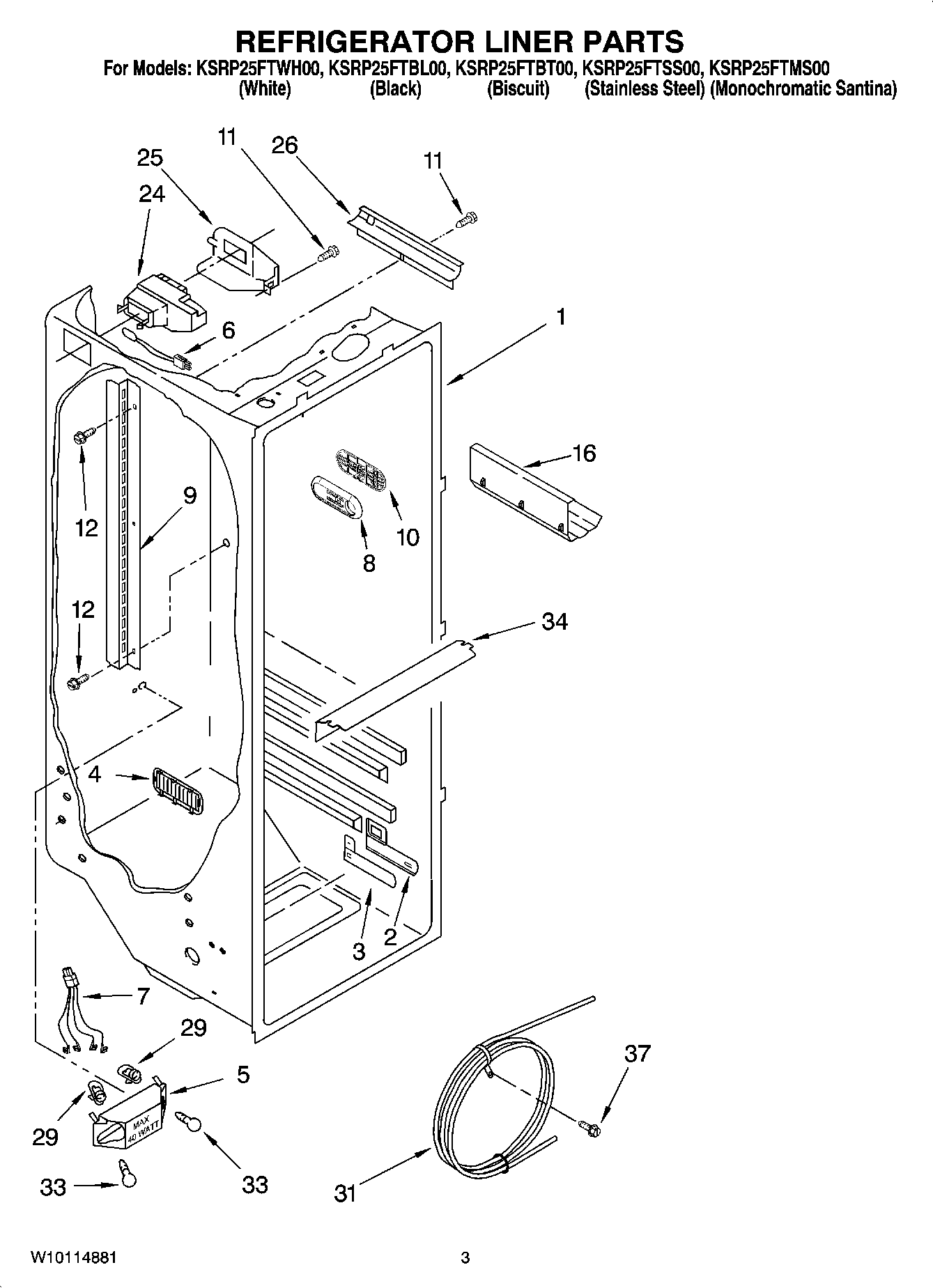

KSRP25FTBL00 02 – REFRIGERATOR LINER PARTS

KSRP25FTBL00 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRP25FTBL00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon, Meat Pan Control
3Slide Meat Pan Control
4Louver
5Bracket, Dual Crisper Light
6WP2188819 Whirlpool Thermistor
72311637 Whirlpool Refrigerator Wire Harness
82301234 Whirlpool Refrigerator Control
9Shelf Ladder
10Slide, Door Control
11W10759522 Whirlpool Screw
12WP489478 Whirlpool Refrigerator Screw
16W10777924 Whirlpool Refrigerator Wine Rack
24WP2216112 Whirlpool Damper Control Assembly
25WP2212240 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
37Screw (2)
