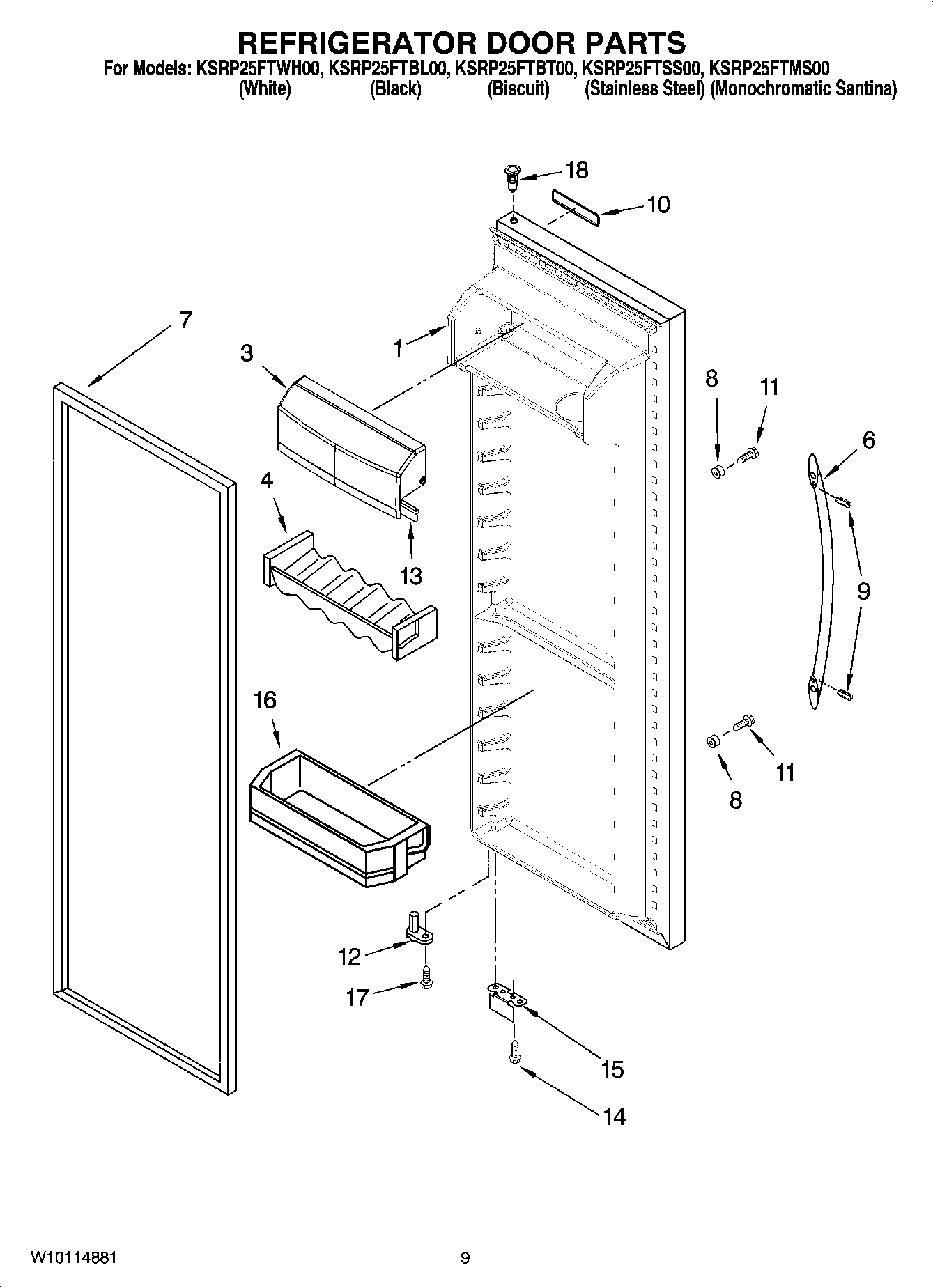

KSRP25FTBL00 06 – REFRIGERATOR DOOR PARTS

KSRP25FTBL00 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRP25FTBL00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 7) (Monochromatic Satina)
1REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
1REFRIGERATOR DOOR (INCLUDES No.7) (BISCUIT)
1REFRIGERATOR DOOR (INCLUDES No.7) (BLACK)
1Refrigerator Door (Includes 7) (Stainless Steel)
3Door, Compartment
4Beverage Holder
6Handle (Includes 4) (Biscuit)
6Handle, Door (Stainless Steel)
6WP2319727W Whirlpool Refrigerator Handle
6WP2319727B Whirlpool Refrigerator Handle
72159083 Whirlpool Gasket Door
72159075 Whirlpool Door Gasket Seal
8WPW10170540 Whirlpool Screw
9SCREW
9WPW10010150 Whirlpool Refrigerator Screw
10Nameplate (Biscuit)
10NAMEPLATE
10WPW10243392 Whirlpool Dishwasher Nameplate
10WPW10243393 Whirlpool Dishwasher Nameplate
11WP488163 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15WP2206629B Whirlpool Refrigerator Bracket
16Shelf Bin
17WP3400012 Whirlpool Refrigerator Screw
18WP2182181 Whirlpool Refrigerator Thimble
18Thimble, Top (For Stainless Steel Models)
