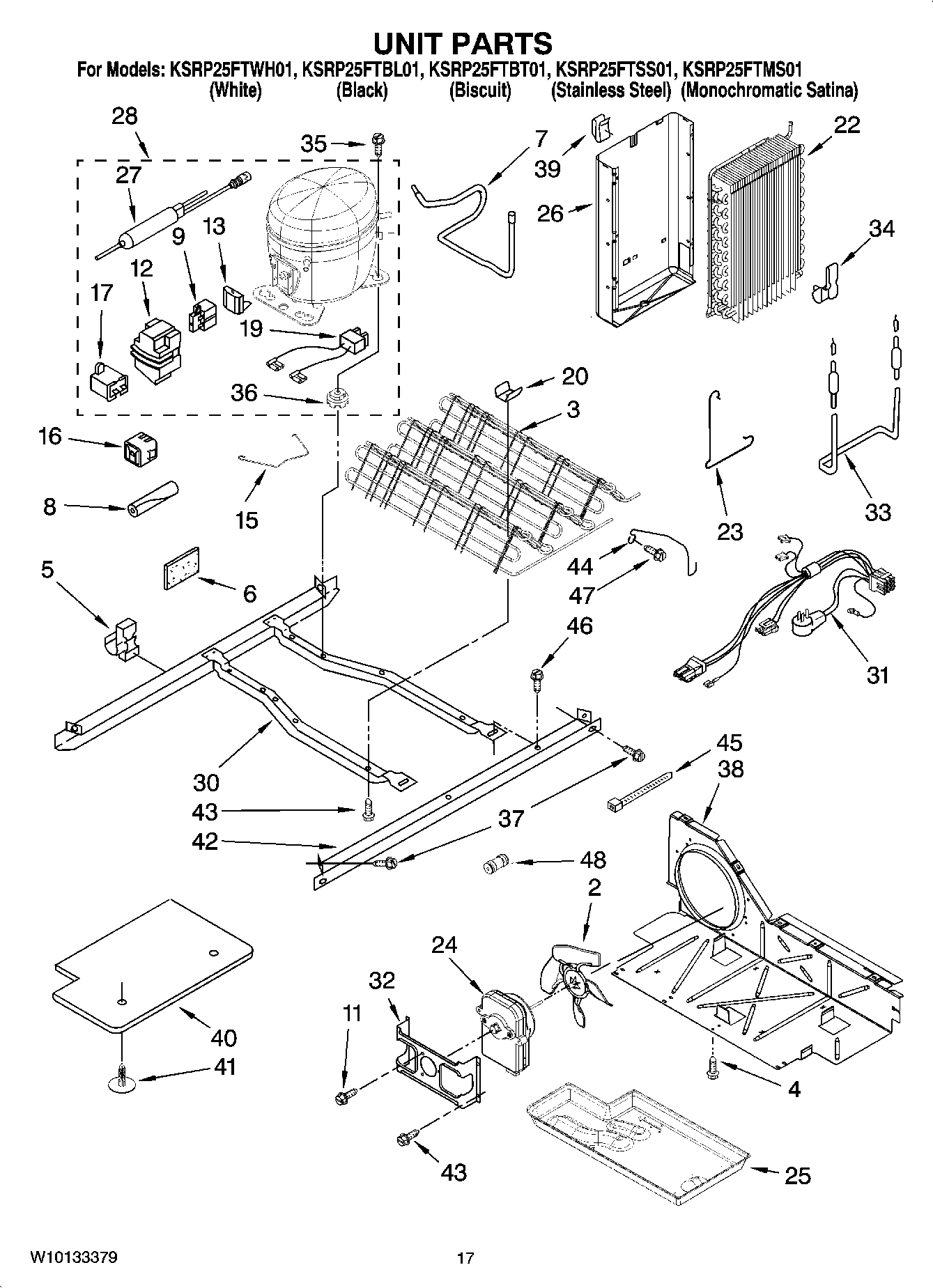

KSRP25FTBL01 11 – UNIT PARTS

Products

Position	Product
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	W11553819 Whirlpool Refrigerator Insulation
7	WP2205765 Whirlpool Refrigerator Tube
8	SLEEVE
9	W10920279 Whirlpool Refrigerator Start Relay
11	681390 Whirlpool Refrigerator Screw
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2154697 Whirlpool Refrigerator Overload
15	2223314 Whirlpool Refrigerator Clip
16	WP2304885 Whirlpool Refrigerator Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	WP2172890 Whirlpool Refrigerator Wire
20	W10683556 Whirlpool Refrigerator Clip
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	W10139460 Whirlpool Refrigerator Compressor
30	2304904 Whirlpool Frame Assembly
31	Unit, Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
36	876811 Whirlpool Grommet
36	WP4387558 Whirlpool Refrigerator Compressor Grommet
37	489340 Whirlpool Refrigerator Screw
38	W10896764 Whirlpool Refrigerator Air Baffle
39	Clip, Heat Shield
40	Unit Cover, Bottom
41	489396 Whirlpool Refrigerator Clip
42	2305374 Whirlpool Refrigerator Unit Rail
43	W11544659 Whirlpool Refrigerator Screw
44	2260517 Whirlpool Fan Guard
45	WPW10339879 Whirlpool Wire Tie
46	WP489427 Whirlpool Refrigerator Screw
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	WP4373559 Whirlpool Fitting
48	Following Parts Not Illustrated and Optional Parts Not Included
48	876764 Whirlpool Refrigerator Primary Valve
48	978026 Whirlpool Refrigerator Primary Valve
48	978030 Whirlpool Refrigerator Valve
48	WP978025 Whirlpool Refrigerator Valve
48	978027 Whirlpool Refrigerator Primary Valve
48	VALVE, ACCESS (1/2“)
48	VALVE, ACCESS (5/8“)
48	REFRIGERANT CHARGE 5.00 oz. (R-134
