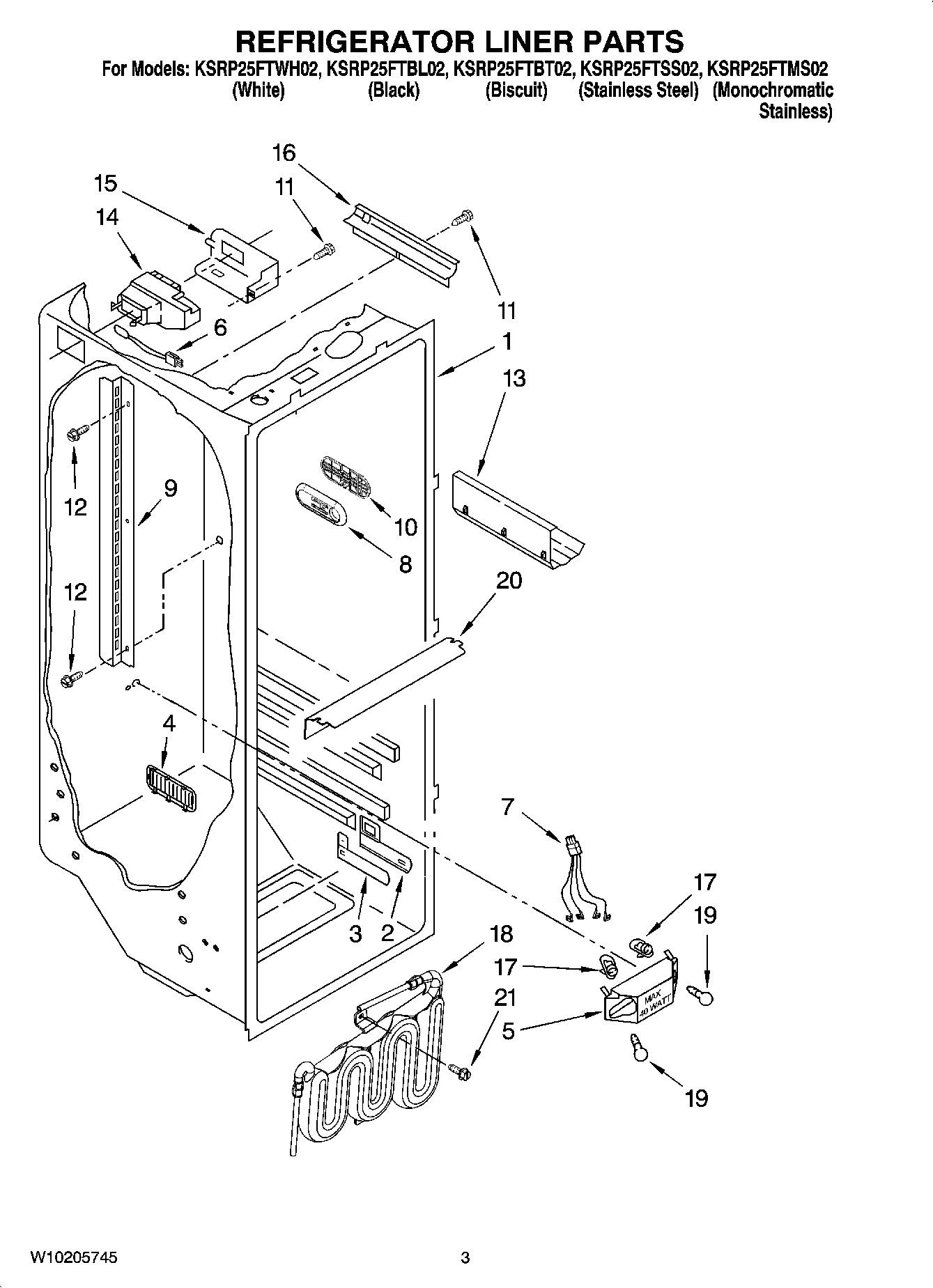

KSRP25FTBL02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Bracket, Dual Crisper Light
6WP2188819 Whirlpool Thermistor
72311637 Whirlpool Refrigerator Wire Harness
82301234 Whirlpool Refrigerator Control
9Shelf Ladder
10Slide, Door Control
11W10759522 Whirlpool Screw
12WP489478 Whirlpool Refrigerator Screw
13W10777924 Whirlpool Refrigerator Wine Rack
14Air Diffuser Assembly
15WP2212240 Whirlpool Refrigerator Cover
162150331 Whirlpool Refrigerator Wire Cover
174387478 Whirlpool Refrigerator Light Socket
18RESERVOIR
19RANGE ONLY 40W 120V APPL BULB
20Light Lens
21Screw (2)
