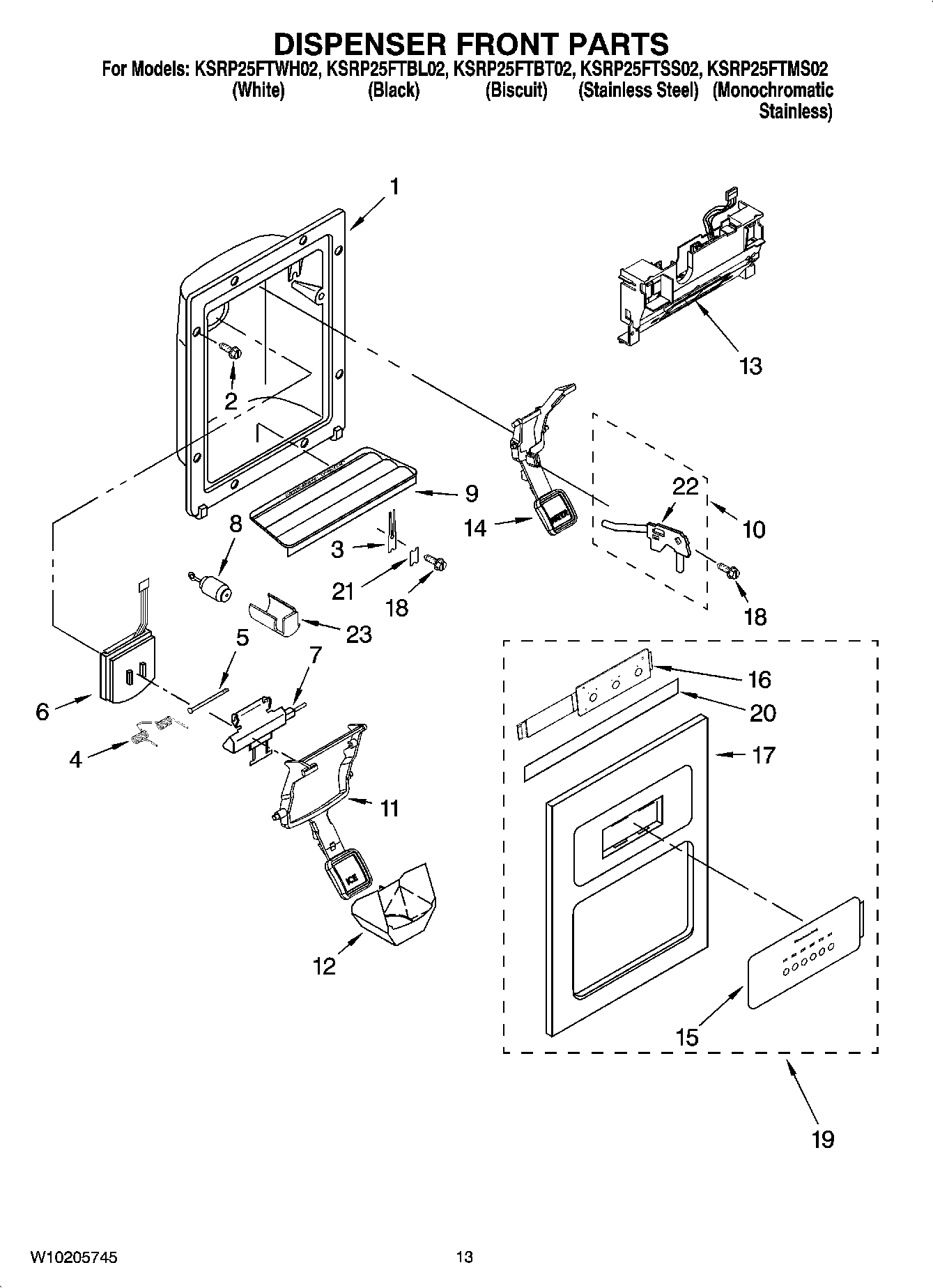

KSRP25FTBL02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670B Whirlpool Dispenser Tray
9	WP2206670T Whirlpool Refrigerator Grille
9	W11106297 Whirlpool Refrigerator Grille
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
11	Lever, Ice Dispenser (Apollo Gray)
11	Lever, Ice Dispenser (Black (Storm Grey Pad))
11	Lever, Ice Dispenser (White (White Shadow Pad))
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	Bracket, Control
14	Lever, Water Dispenser (Apollo Gray)
14	WPW10152858 Whirlpool Refrigerator Dispenser Arm
15	Overlay, Front Cover (Not Available Order 19)
16	LED Display (Not Available, Order 19)
17	Front Cover, Housing (Not Available, Order 19)
18	WP3400906 Whirlpool Refrigerator Screw
19	Front Cover Assembly (Includes Items 19, 20, 21 & 24) (White)
19	Front Cover Assembly (Includes Items 19, 20, 21 & 24) (Universal Silver)
19	Front Cover Assembly (Includes Items 19, 20, 21 & 24) (Biscuit)
19	Front Cover Assembly (Includes Items 19, 20, 21 & 24) (Black)
20	2305571 Whirlpool Gasket Assembly
21	WP2195051 Whirlpool Refrigerator Clip
22	WP2304673 Whirlpool Refrigerator Bracket
23	Sleeve, Delay Mechanism
