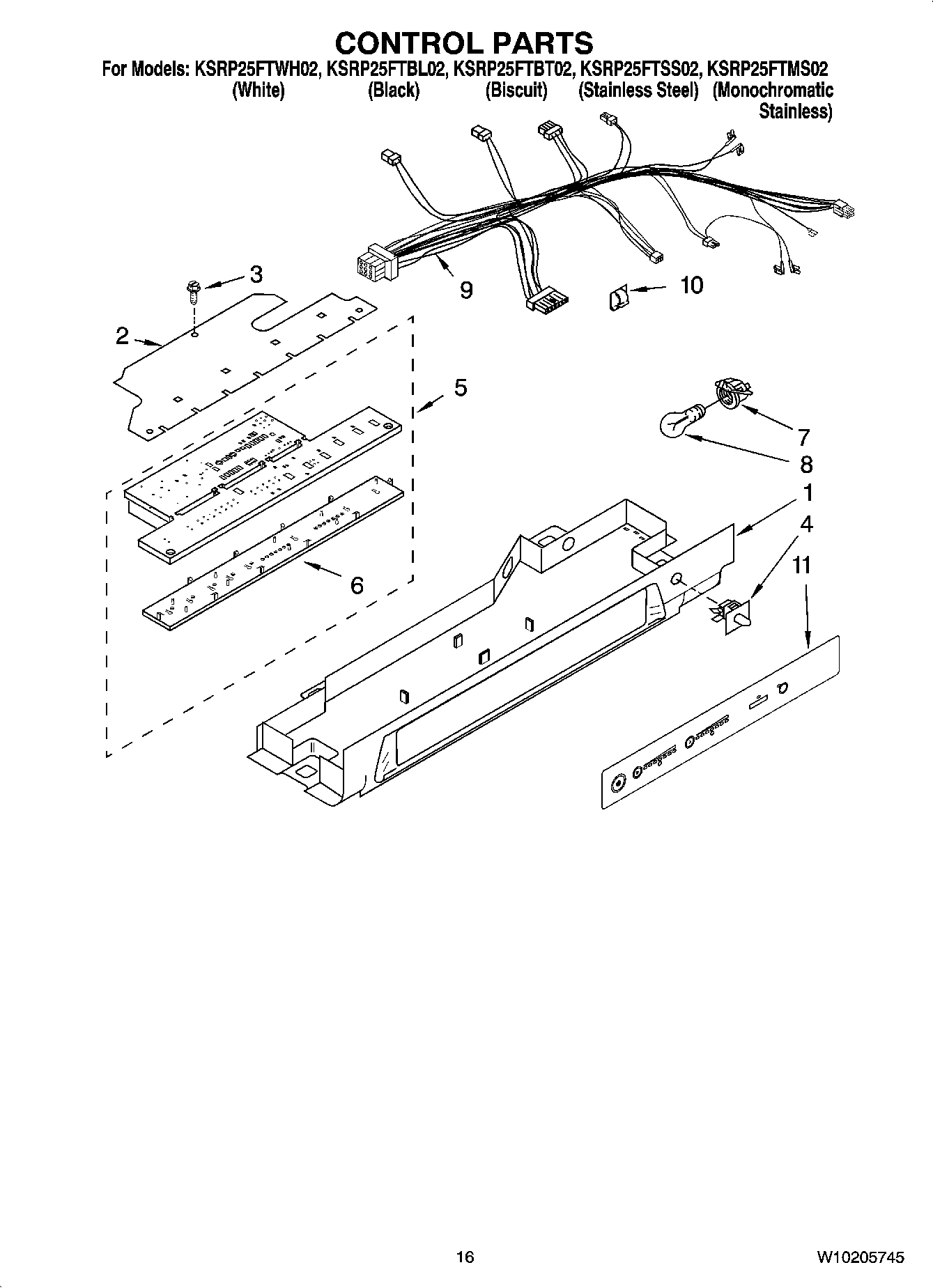

KSRP25FTBL02 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	Cover, Ctrl Box
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	Electronic Control
6	Insert, Control Board (Not Available, Order 5)
7	4387478 Whirlpool Refrigerator Light Socket
8	RANGE ONLY 40W 120V APPL BULB
9	Control Box Harness
10	WP1115374 Whirlpool Refrigerator Clip
11	Overlay, Control Box
