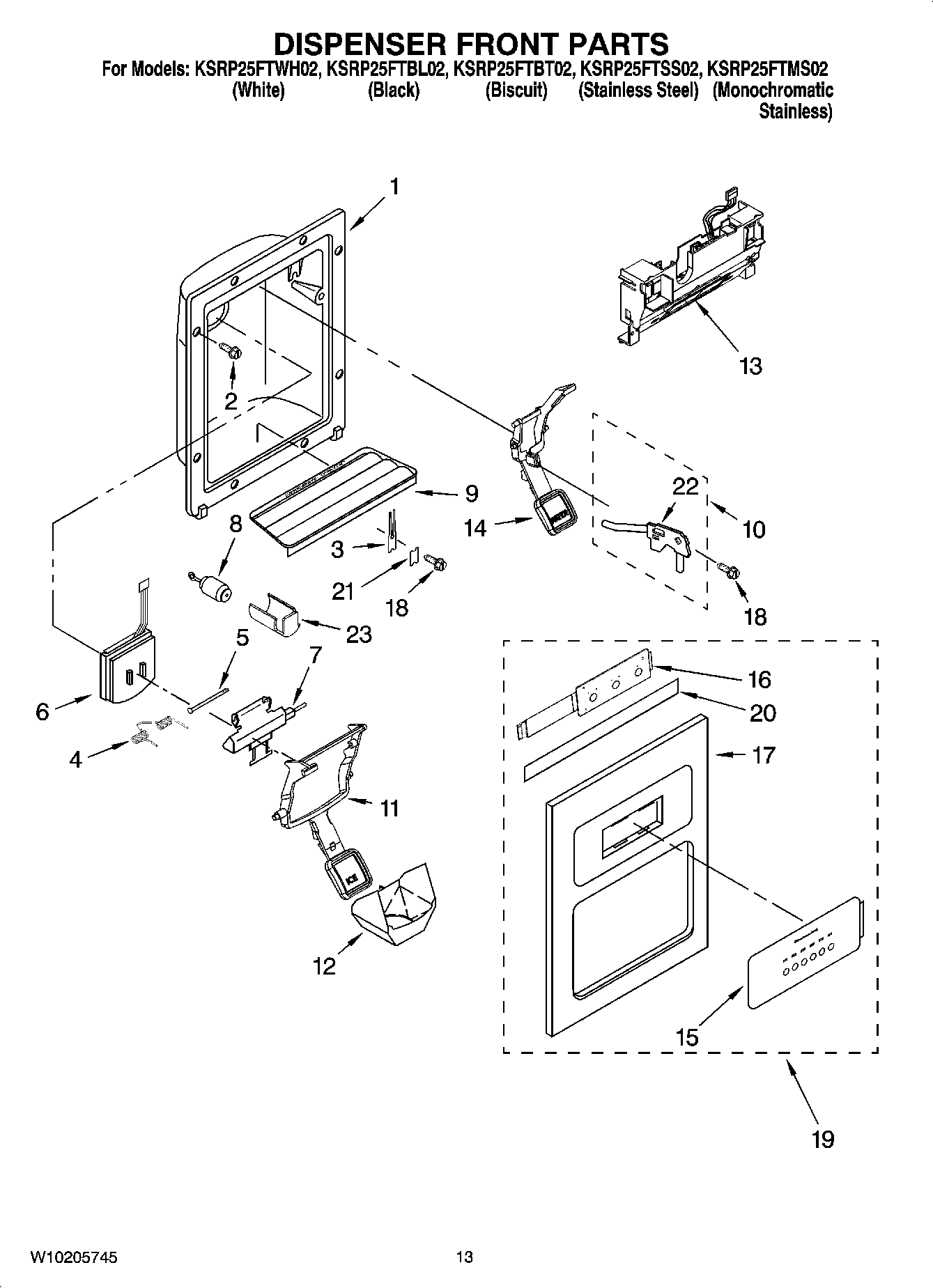

KSRP25FTSS02 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206670W Whirlpool Dispenser Tray
9WP2206670B Whirlpool Dispenser Tray
9WP2206670T Whirlpool Refrigerator Grille
9W11106297 Whirlpool Refrigerator Grille
108201537 Whirlpool Water Tubing Assembly
11Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
11Lever, Ice Dispenser (Apollo Gray)
11Lever, Ice Dispenser (Black (Storm Grey Pad))
11Lever, Ice Dispenser (White (White Shadow Pad))
12WP2180224 Whirlpool Dispenser Funnel Guide
13Bracket, Control
14Lever, Water Dispenser (Apollo Gray)
14WPW10152858 Whirlpool Refrigerator Dispenser Arm
15Overlay, Front Cover (Not Available Order 19)
16LED Display (Not Available, Order 19)
17Front Cover, Housing (Not Available, Order 19)
18WP3400906 Whirlpool Refrigerator Screw
19Front Cover Assembly (Includes Items 19, 20, 21 & 24) (White)
19Front Cover Assembly (Includes Items 19, 20, 21 & 24) (Universal Silver)
19Front Cover Assembly (Includes Items 19, 20, 21 & 24) (Biscuit)
19Front Cover Assembly (Includes Items 19, 20, 21 & 24) (Black)
202305571 Whirlpool Gasket Assembly
21WP2195051 Whirlpool Refrigerator Clip
22WP2304673 Whirlpool Refrigerator Bracket
23Sleeve, Delay Mechanism
