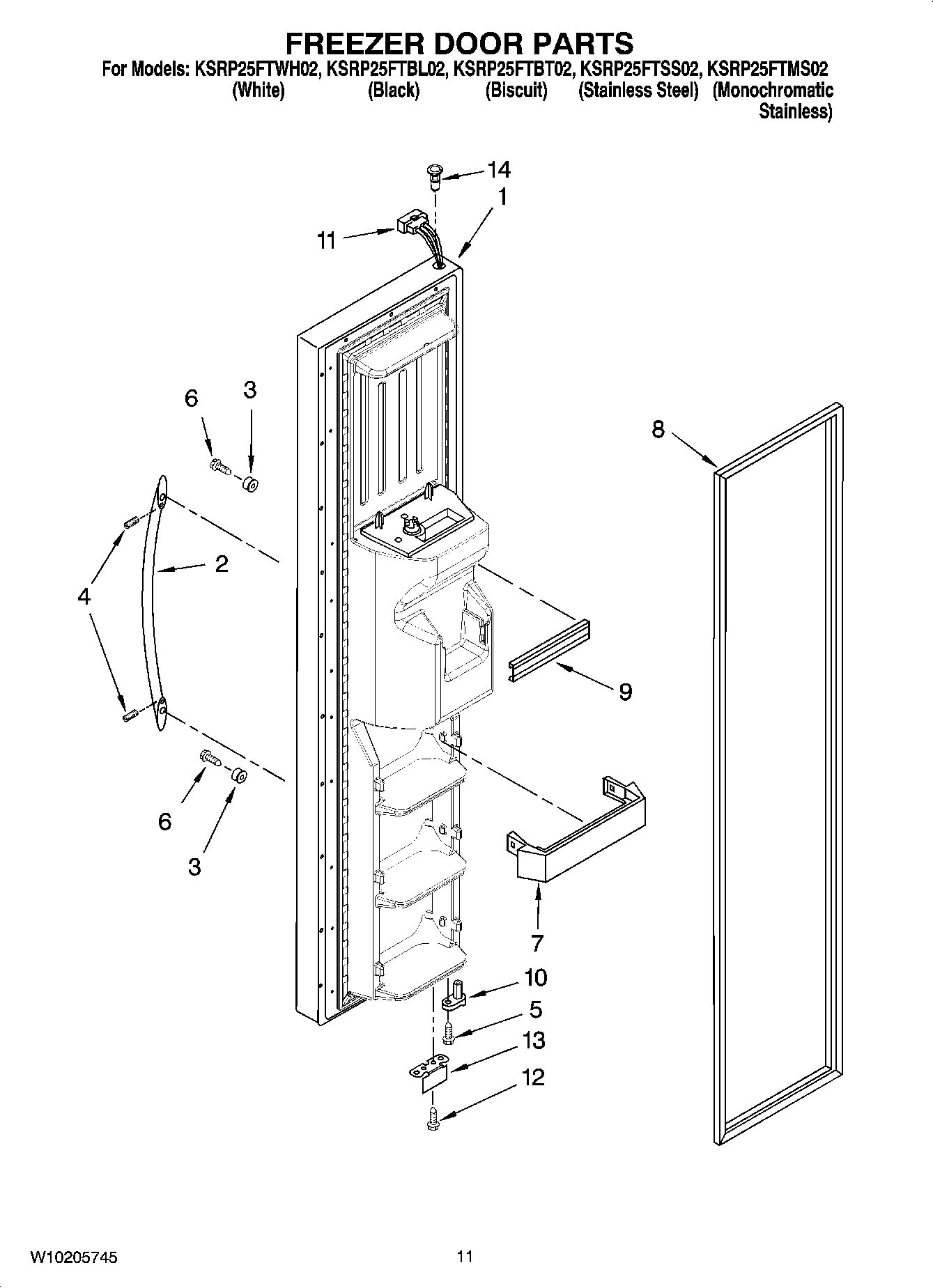

KSRP25FTWH02 07 – FREEZER DOOR PARTS

KSRP25FTWH02 07 – FREEZER DOOR PARTS

Written by

in

KSRP25FTWH02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Satina)
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2WP2319727W Whirlpool Refrigerator Handle
2Handle, Door (Stainless Steel)
2Handle (Includes 4) (Biscuit)
2WP2319727B Whirlpool Refrigerator Handle
3WPW10170540 Whirlpool Screw
4SCREW
4WPW10010150 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6WP488163 Whirlpool Refrigerator Screw
7Shelf Bin (3)
82159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10WP2182179 Whirlpool Cam Closer
11Connector
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14WP2182181 Whirlpool Refrigerator Thimble
14Thimble, Top (For Stainless Steel Models)
