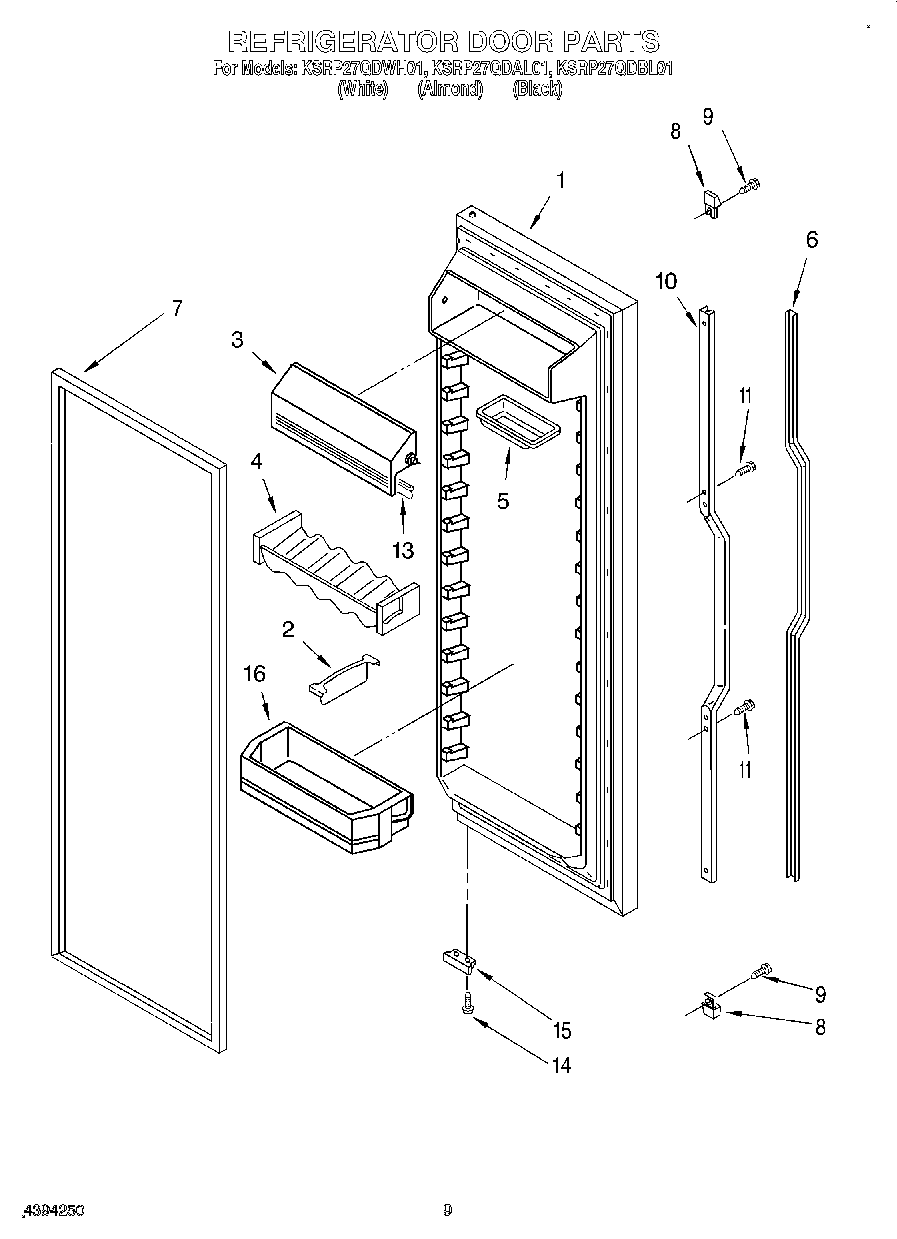

KSRP27QDAL01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.7) (Black)
1	Refrigerator Door (Includes No.7) (Almond)
1	Refrigerator Door (Includes No.7) (White)
2	Divider, Door Bin (2)
3	Door, Compartment
4	WPL 1125981
5	Butter, Tray
6	Handle, Insert (Black)
6	Insert, Handle
6	Insert, Handle (Biscuit)
7	2159075 Whirlpool Door Gasket Seal
7	2159083 Whirlpool Gasket Door
8	End Cap (2)
9	Screw
10	Retainer, Insert
11	WP489463 Whirlpool Refrigerator Screw
13	Gasket, Door Compartment
14	WP999367 Whirlpool Refrigerator Screw
15	Bracket, Door Stop (Black)
15	Bracket, Door Stop (Chrome)
16	Black Glass
16	Bin, Door Shelf
16	Handle Inserts (Black Grille Kit)
16	Handle Inserts (Woodgrain)
16	Handle Inserts (Black)
16	Trim Kit
16	Acrylic Panel Kit (White)
16	Acrylic Panel Kit (Almond)
