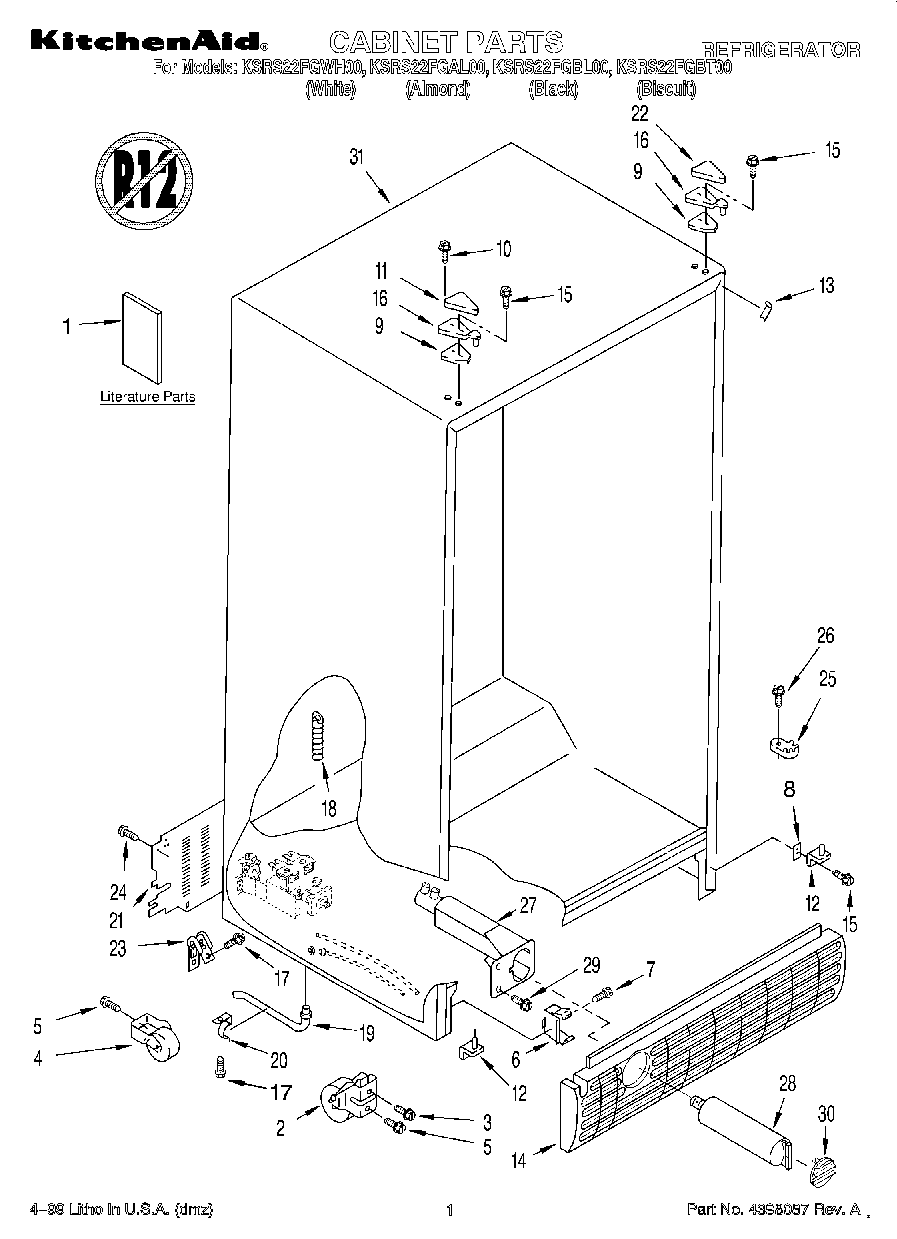

KSRS22FGWH00 01 – CABINET, LITERATURE

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Label
1	LITERATURE PARTS (Service and Wiring Sheet)
1	LITERATURE PARTS (Use & Care Guide)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	Shim, Hinge Top
10	Screw
11	WP1129262 Whirlpool Refrigerator Cover
12	8201707 Whirlpool Door Hinge
13	Filler, Wrapper (Black)
13	Filler, Wrapper (Biscuit)
13	Filler, Wrapper (Almond)
13	Filler, Wrapper (White)
14	W10802713 Whirlpool Refrigerator Grille
15	WP489497 Whirlpool Screw
16	WP2196046 Whirlpool Refrigerator Door Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	WP2188756 Whirlpool Refrigerator Unit Cover
22	Hinge Cover (Black)
22	1119787 Whirlpool Refrigerator Hinge Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	WP2186443 Whirlpool Water Filter Housing
28	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
29	WP489500 Whirlpool Refrigerator Screw
30	Cap, Water Filter (Almond)
30	WP2186494T Whirlpool Water Filter Cap
30	WP2186494W Whirlpool Water Filter Cap
30	WP2186494B Whirlpool Refrigerator Filter Cap
31	Cabinet (Not A Serviceable Part)
