KSRS22FGWH01 05 – REFRIGERATOR DOOR

KSRS22FGWH01 05 – REFRIGERATOR DOOR

Written by

in

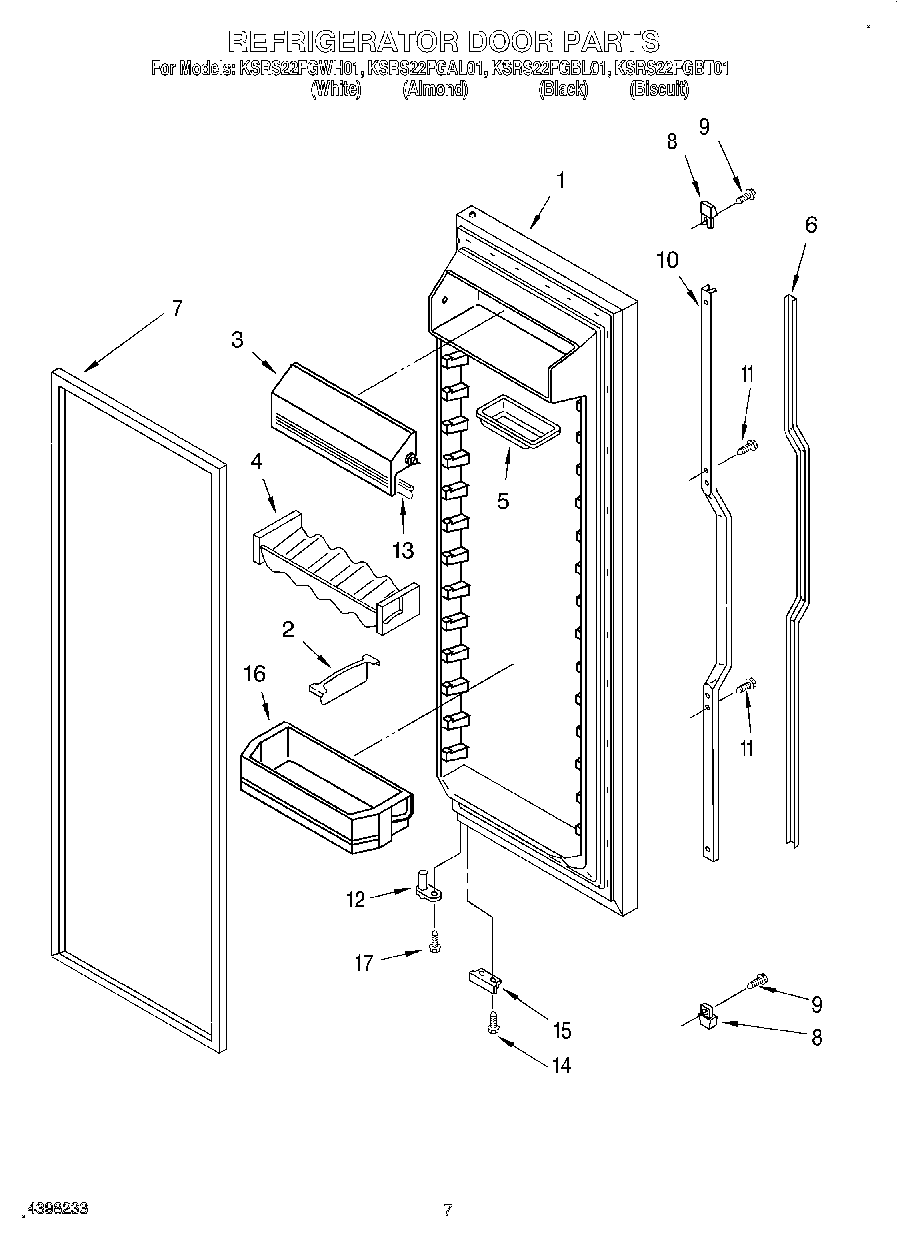

KSRS22FGWH01 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.7) (Biscuit)
1Refrigerator Door (Includes No.7) (Black)
1Refrigerator Door (Includes No.7) (Almond)
1Refrigerator Door (Includes No.7) (White)
2Divider, Bin
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Insert, Handle (Black)
6Insert, Handle (Biscuit)
6Insert, Handle
6Insert, Handle (Almond)
72159081 Whirlpool Refrigerator Door Gasket
72159073 Whirlpool Refrigerator Door Gasket
8End Cap, Handle
8End Cap, Handle (Biscuit)
8End Cap (Black)
8End Cap, Handle (Almond)
9WP3400852 Whirlpool Refrigerator Screw
10Retainer, Handle (Biscuit)
10Retainer, Handle (Almond)
10Retainer, Insert (Black)
10Retainer, Insert
11WP489463 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15Bracket, Door Stop (Chrome)
16Bin, Door Shelf
17WP3400012 Whirlpool Refrigerator Screw
