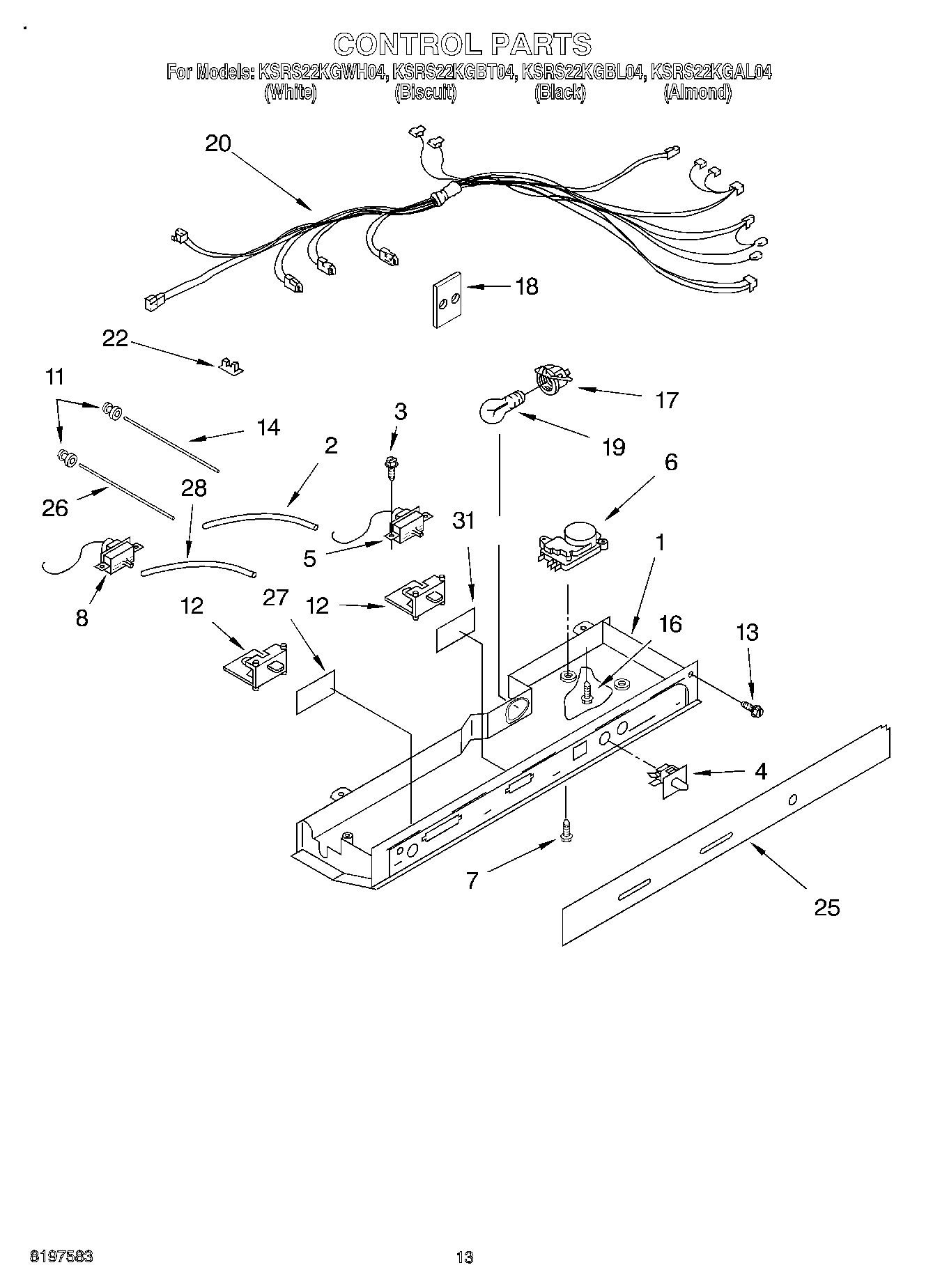

KSRS22KGAL04 09 – CONTROL, OPTIONAL

Products

Position	Product
1	2200135 Whirlpool Refrigerator Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2161460 Whirlpool Refrigerator Thermostat
6	Defrost Timer (10 Hr.)
7	489392 Whirlpool Refrigerator Screw
8	WP2182770 Whirlpool Refrigerator Thermostat
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	2172931 Whirlpool Refrigerator Shield
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
22	CLIP, WIRING
25	Escutcheon, Control Box
26	Light Bar (FC)
27	Window
31	2172940 Whirlpool Window
31	Almond (Uncut)
31	Torx Key
31	72032 Whirlpool Touch Up Paint Black
31	285006 Whirlpool Spray
31	W11729596 Whirlpool Ice Maker Field Install Kit
31	606755 Whirlpool Refrigerator Bag
31	511873 Whirlpool Refrigerator Paint
31	350942 Whirlpool Spray Paint
31	212643 Whirlpool Refrigerator Permagum Sealer
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	350956 Whirlpool Spray Assembly
31	833938 Whirlpool Refrigerator Terminal
31	876370 Whirlpool Refrigerator Insulation
31	WPL 876029
31	WPL 799833
31	Enamel, Black (1 Qt. Uncut)
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	TAPE, VINYL (3/4 X 108“)
31	WP542638 Whirlpool Refrigerator Grease
31	WP505587 Whirlpool Refrigerator Sealer
31	WP503695 Whirlpool Refrigerator Sealer
31	350930 Whirlpool White Spray Paint
