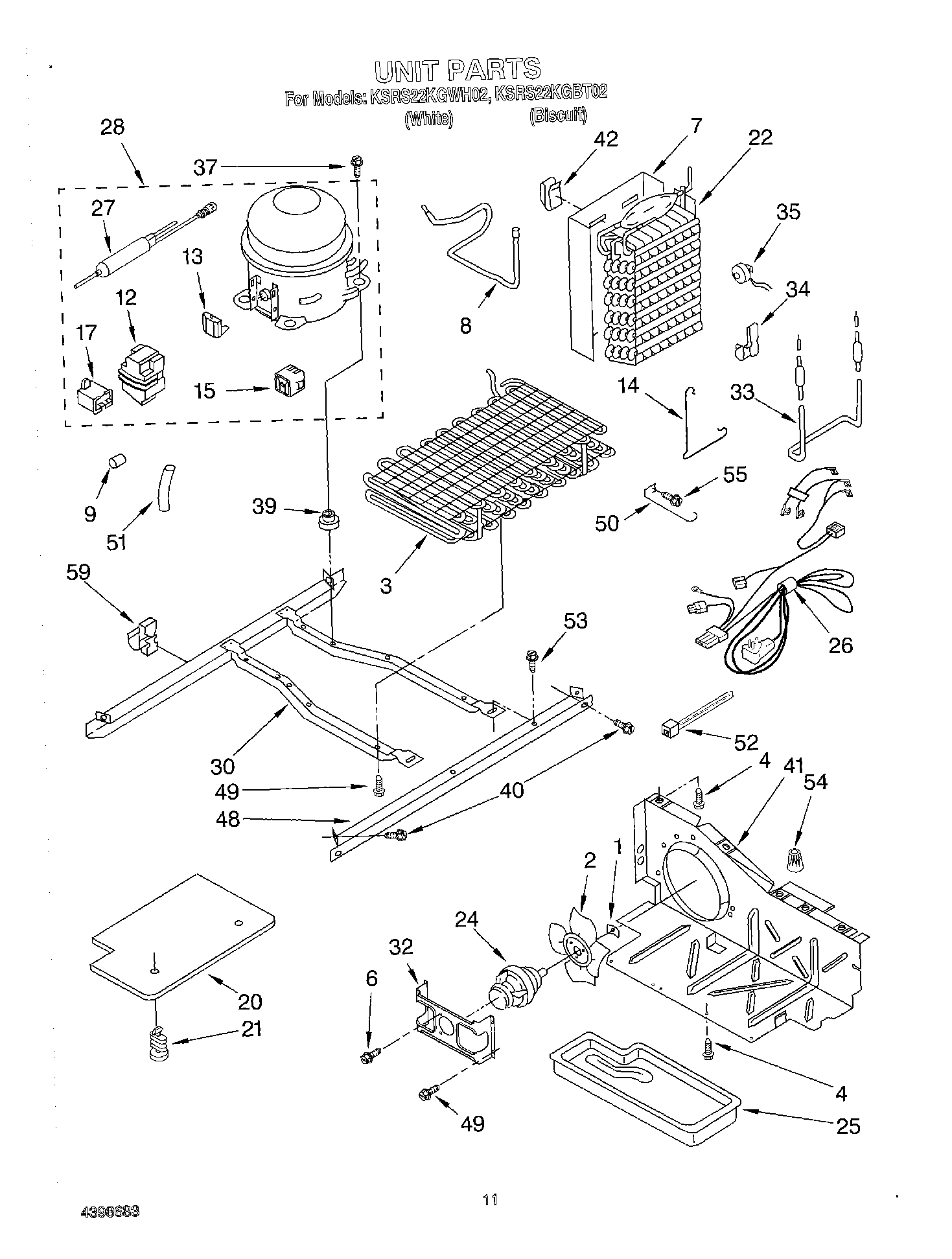

| 1 | WP486692 Whirlpool Refrigerator Nut |
| 2 | Blade, Fan |
| 3 | Condenser Assembly |
| 4 | WP489464 Whirlpool Refrigerator Screw |
| 6 | 681390 Whirlpool Refrigerator Screw |
| 7 | Heat Shield |
| 8 | 2205764 Whirlpool Refrigerator Tube |
| 9 | WP2158826 Whirlpool Refrigerator Dampener |
| 12 | WP2162358 Whirlpool Refrigerator Terminal Cover |
| 13 | OVERLOAD |
| 14 | Clamp |
| 15 | 8201799 Whirlpool Refrigerator Compressor Start Device Relay and Overload Kit |
| 17 | WP4387764 Whirlpool Run Capacitor |
| 20 | Unit Cover, Bottom |
| 21 | 489396 Whirlpool Refrigerator Clip |
| 22 | WP2188822 Whirlpool Refrigerator Evaporator |
| 24 | W10822259 Whirlpool Refrigerator Condenser Fan Motor |
| 25 | Tray, Evaporator |
| 26 | Harness, Intermediate |
| 27 | W10843121 Whirlpool Refrigerator Tube |
| 28 | 876765 Whirlpool Primary Mounting Kit Refrigerator |
| 28 | W10309990 Whirlpool Refrigerator Compressor |
| 30 | 2304903 Whirlpool Refrigerator Frame |
| 32 | WP2181929 Whirlpool Refrigerator Bracket |
| 33 | WP2323197 Whirlpool Refrigerator Heater |
| 34 | Clip |
| 35 | WPW10225581 Whirlpool Refrigerator Defrost Thermostat |
| 37 | Screw |
| 39 | W11661108 Whirlpool Grommet |
| 40 | 489340 Whirlpool Refrigerator Screw |
| 41 | W10896764 Whirlpool Refrigerator Air Baffle |
| 42 | Clip, Heat Shield |
| 48 | Unit Mounting Rail |
| 49 | Screw, 8 x 3/8 |
| 50 | 1105612 Whirlpool Fan Guard |
| 51 | SLEEVE |
| 52 | WPW10339879 Whirlpool Wire Tie |
| 53 | WP489427 Whirlpool Refrigerator Screw |
| 54 | Wire Connector |
| 55 | WP489478 Whirlpool Refrigerator Screw |
| 59 | VALVE, ACCESS (5/8``) |
| 59 | 876764 Whirlpool Refrigerator Primary Valve |
| 59 | VALVE, ACCESS (1/2``) |
| 59 | Clip, Wire & Tube |
| 59 | 978026 Whirlpool Refrigerator Primary Valve |
| 59 | 978027 Whirlpool Refrigerator Primary Valve |
| 59 | 978030 Whirlpool Refrigerator Valve |
| 59 | WP978025 Whirlpool Refrigerator Valve |
