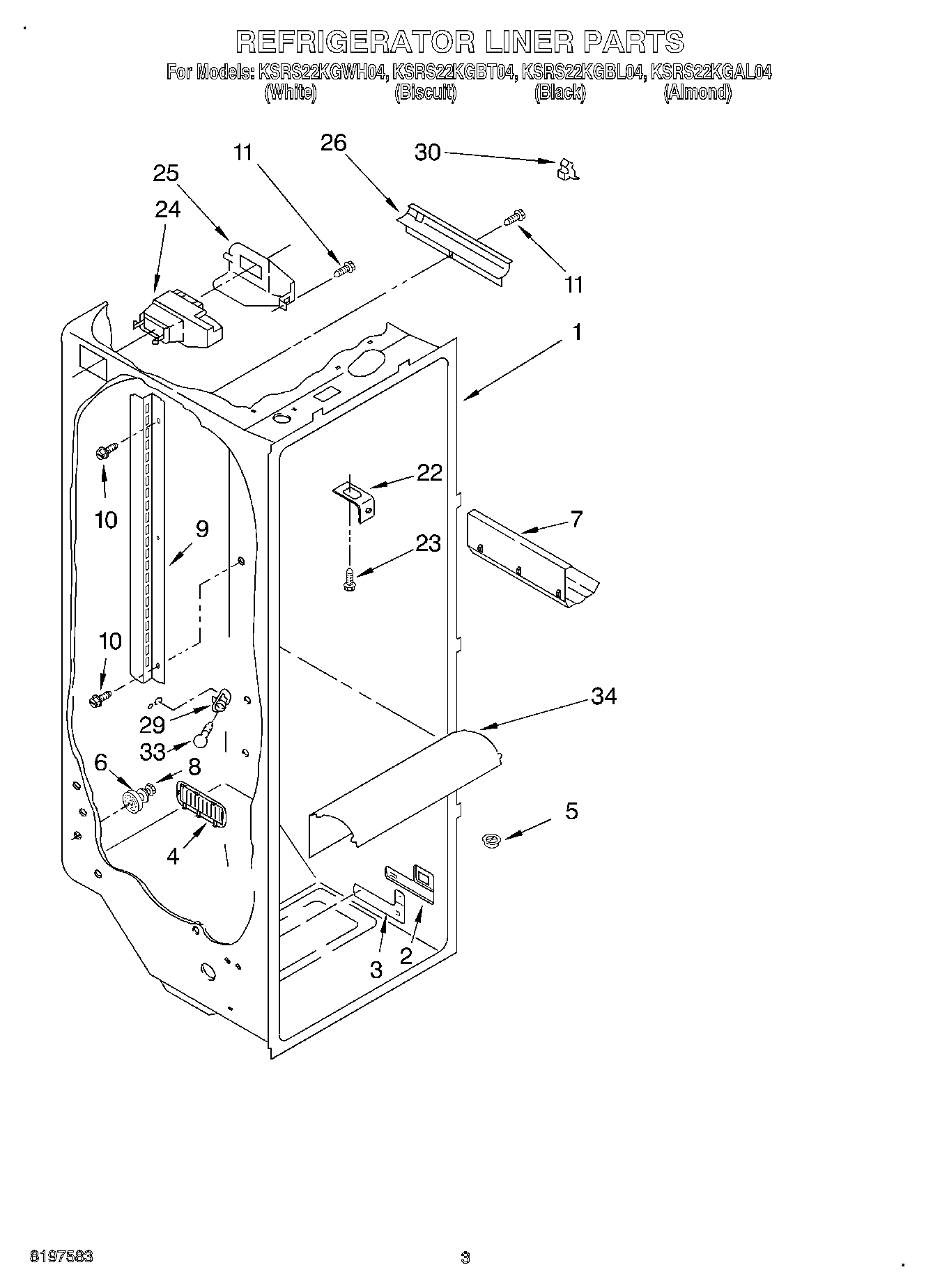

KSRS22KGBT04 02 – REFRIGERATOR LINER

KSRS22KGBT04 02 – REFRIGERATOR LINER

Written by

in

KSRS22KGBT04 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
52171846 Whirlpool Refrigerator Release Valve
6W11223328 Whirlpool Refrigerator Shelf Stud
7W10777924 Whirlpool Refrigerator Wine Rack
8WP3-24004-109 Whirlpool Refrigerator Screw
9Shelf Ladder
10WP488729 Whirlpool Refrigerator Door Screw
11W10759522 Whirlpool Screw
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WP2209751 Whirlpool Refrigerator Air Diffuser Assembly
25WP2212240 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
294387478 Whirlpool Refrigerator Light Socket
302215823 Whirlpool Refrigerator Clip
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
