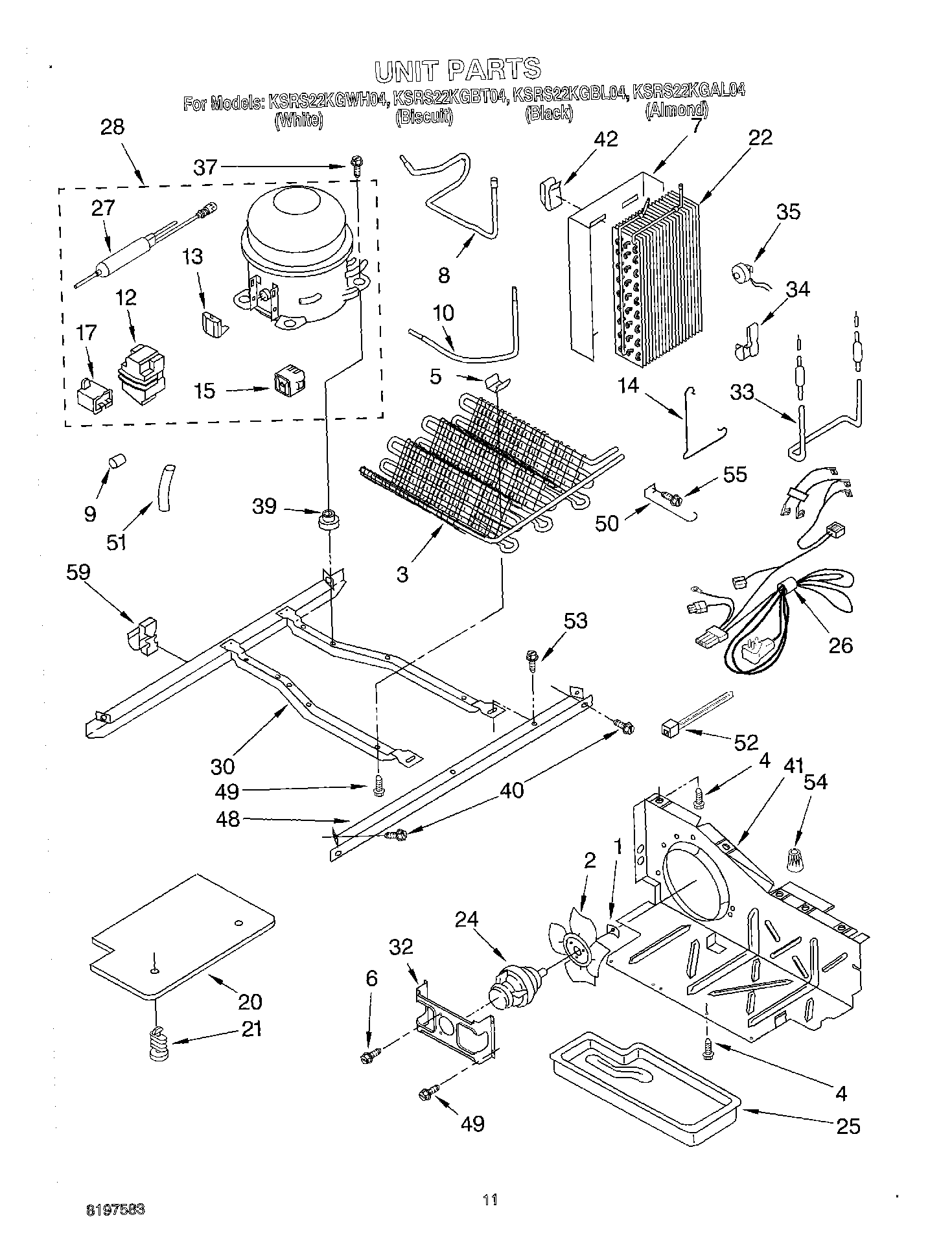

KSRS22KGWH04 08 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	2205764 Whirlpool Refrigerator Tube
9	WP2158826 Whirlpool Refrigerator Dampener
10	Tube, Condenser to Heat Loop
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
14	Clamp
15	8201799 Whirlpool Refrigerator Compressor Start Device Relay and Overload Kit
17	WP4387764 Whirlpool Run Capacitor
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	W10822259 Whirlpool Refrigerator Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	4389202 Whirlpool Wire Harness
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
30	2304903 Whirlpool Refrigerator Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WP489478 Whirlpool Refrigerator Screw
59	VALVE, ACCESS (5/8“)
59	876764 Whirlpool Refrigerator Primary Valve
59	Clip, Wire & Tube
59	978026 Whirlpool Refrigerator Primary Valve
59	978027 Whirlpool Refrigerator Primary Valve
59	978030 Whirlpool Refrigerator Valve
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (1/2“)
