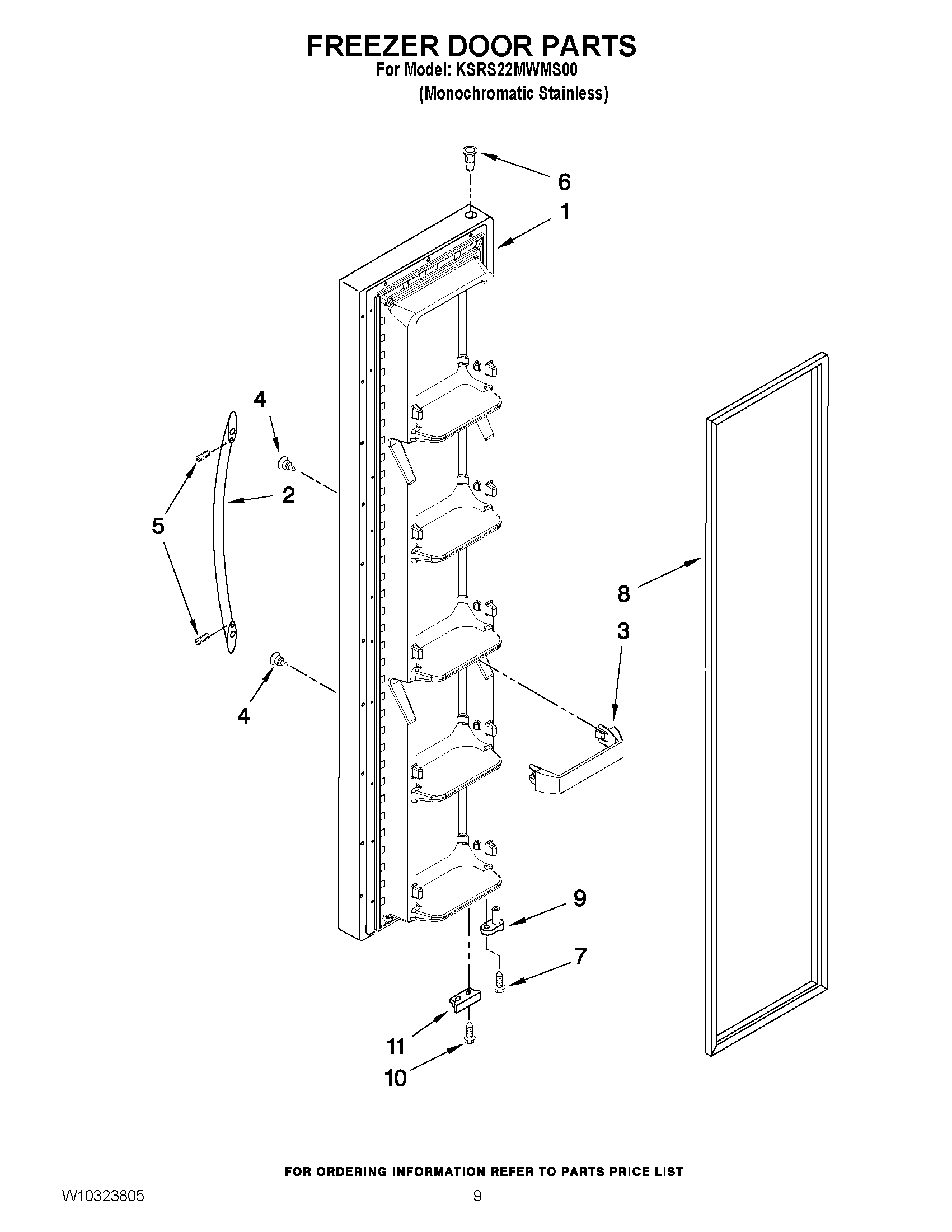

KSRS22MWMS00 06 – FREEZER DOOR PARTS

KSRS22MWMS00 06 – FREEZER DOOR PARTS

Written by

in

KSRS22MWMS00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
2Handle, Door (Stainless Steel)
3WP2156021 Whirlpool Refrigerator Door Trim
4WPW10170540 Whirlpool Screw
5SCREW
6WP2182181 Whirlpool Refrigerator Thimble
7WP3400012 Whirlpool Refrigerator Screw
8W10136733 Whirlpool Refrigerator FIP Gasket
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11W10185566 Whirlpool Bracket
