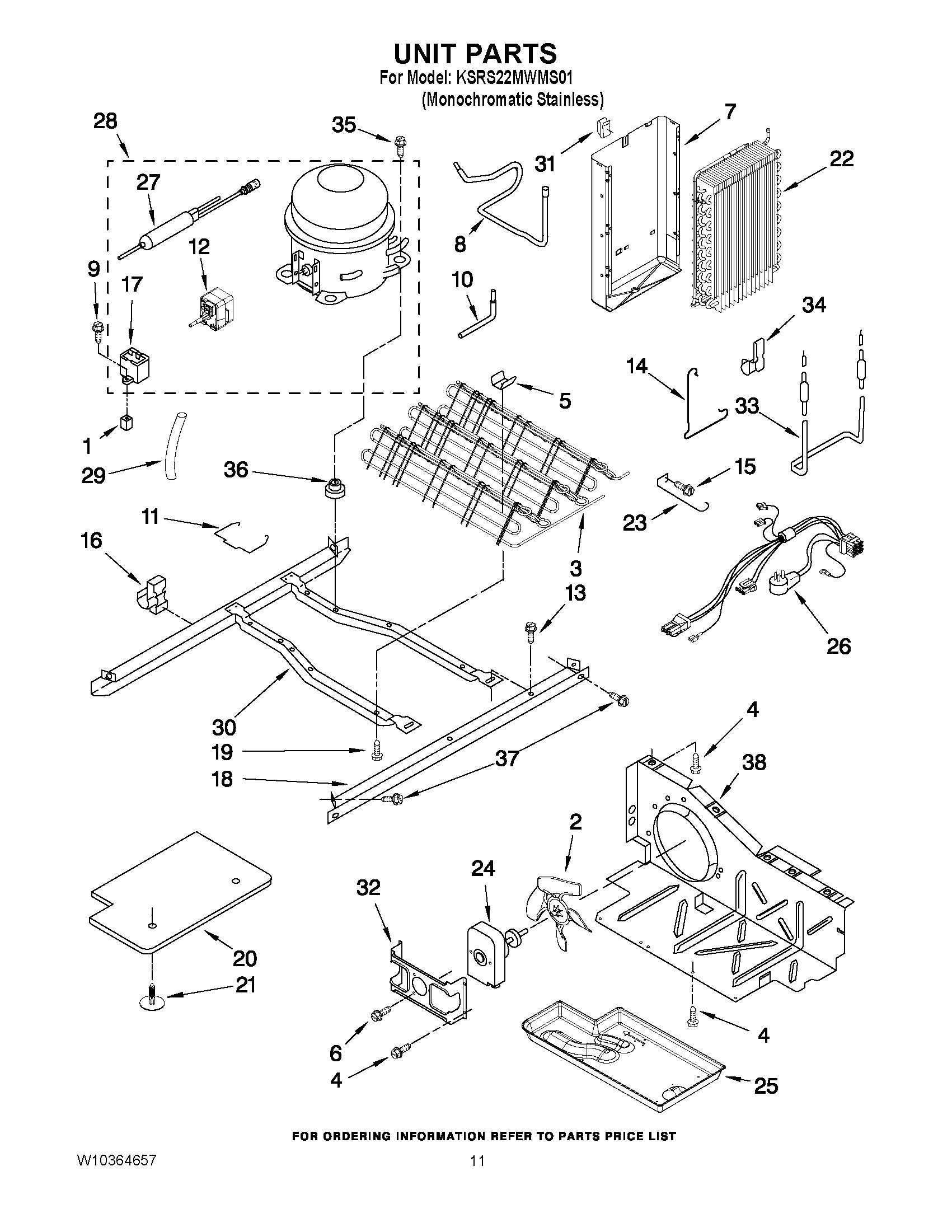

KSRS22MWMS01 07 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (5/8“)
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
1	Screw Grommet
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
6	WP8533993 Whirlpool Refrigerator Screw
7	WPW10194474 Whirlpool Refrigerator Shield
8	2220642 Whirlpool Refrigerator Tube
9	W11693756 Whirlpool Screw Assembly
10	W10858105 Whirlpool Refrigerator Tube
11	2212996 Whirlpool Refrigerator Retainer
12	WP2188831 Whirlpool Refrigerator Start Device
13	WP489427 Whirlpool Refrigerator Screw
14	Clamp
15	WP489478 Whirlpool Refrigerator Screw
16	Clip, Wire & Tube
17	WP65889-4 Whirlpool Refrigerator Capacitor
18	W10207512 Whirlpool Rail Unit
19	W11544659 Whirlpool Refrigerator Screw
20	W11115203 Whirlpool Control Panel
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
23	1105612 Whirlpool Fan Guard
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WP2187778 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10355489 Whirlpool Refrigerator Compressor
29	SLEEVE
30	2304903 Whirlpool Refrigerator Frame
31	Clip, Heat Shield
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
36	W11661108 Whirlpool Grommet
36	876811 Whirlpool Grommet
37	489340 Whirlpool Refrigerator Screw
38	BAFFLE, AIR
