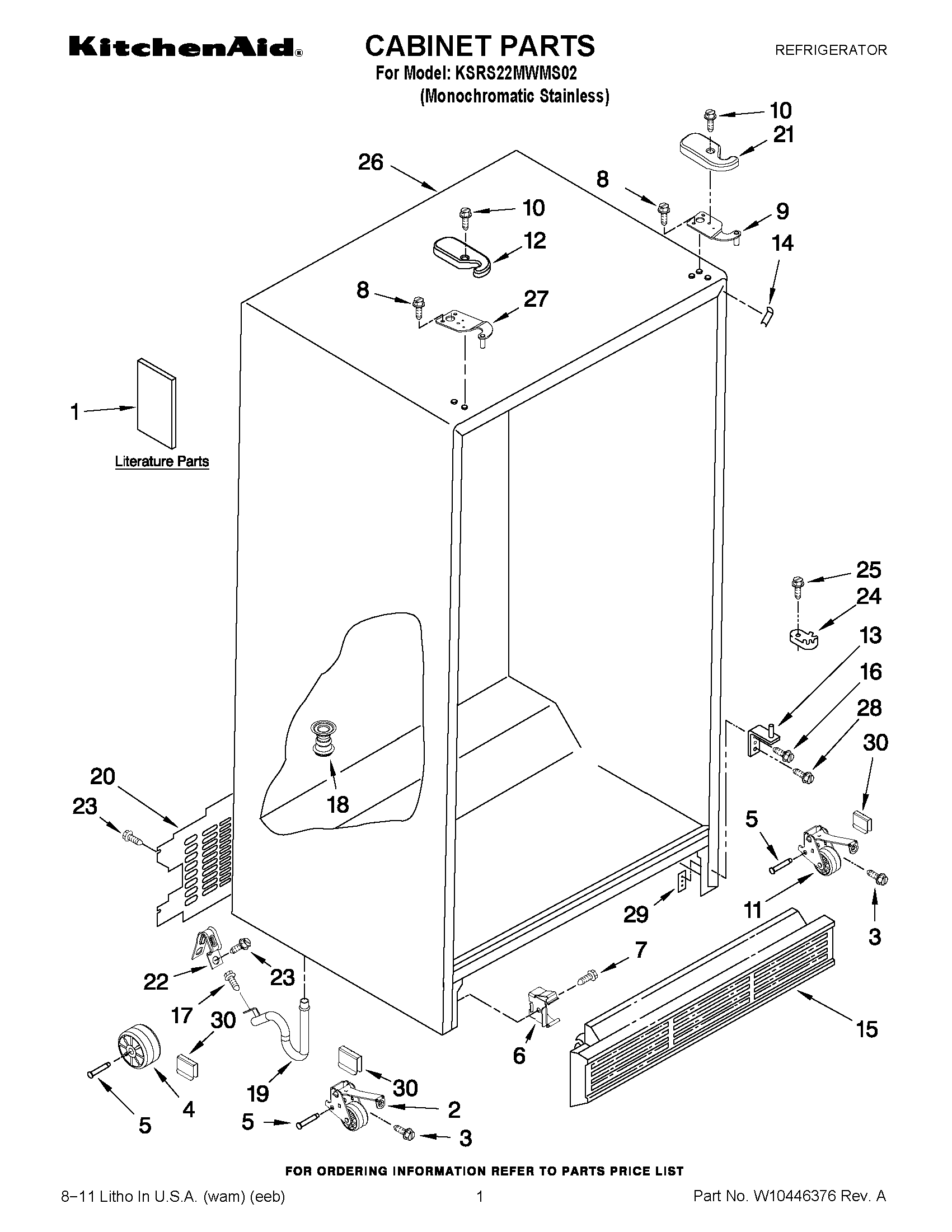

KSRS22MWMS02 01 – CABINET PARTS

KSRS22MWMS02 01 – CABINET PARTS

Written by

in

KSRS22MWMS02 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1SERVICE & WIRING SHEET
1USE & CARE GUIDE
2WPW10304660 Whirlpool Wheel Assembly
3WP489427 Whirlpool Refrigerator Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
9HINGE TOP (RC)
10WP8281227 Whirlpool Screw
11WPW10304659 Whirlpool Wheel Assembly
12Hinge Cover (RC) (Apollo Grey)
13HINGE BOTTOM
14W10851579 Whirlpool Refrigerator Filler
15Grille (Midnight Grey)
16WP489497 Whirlpool Screw
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19W11512417 Whirlpool Drain Connector
20WP2188756 Whirlpool Refrigerator Unit Cover
21Hinge Cover (FC) (Apollo Grey)
22549193 Whirlpool Refrigerator Power Clamp
24WPW10329686 Whirlpool Door Cam Black
25WP489483 Whirlpool Screw
26CABINET (NOT A SERVICEABLE PART)
27HINGE TOP (FC)
28W10856122 Whirlpool Refrigerator Screw
29WP2304249 Whirlpool Refrigerator Plate
30WP2174706 Whirlpool Refrigerator Pin Hitch
