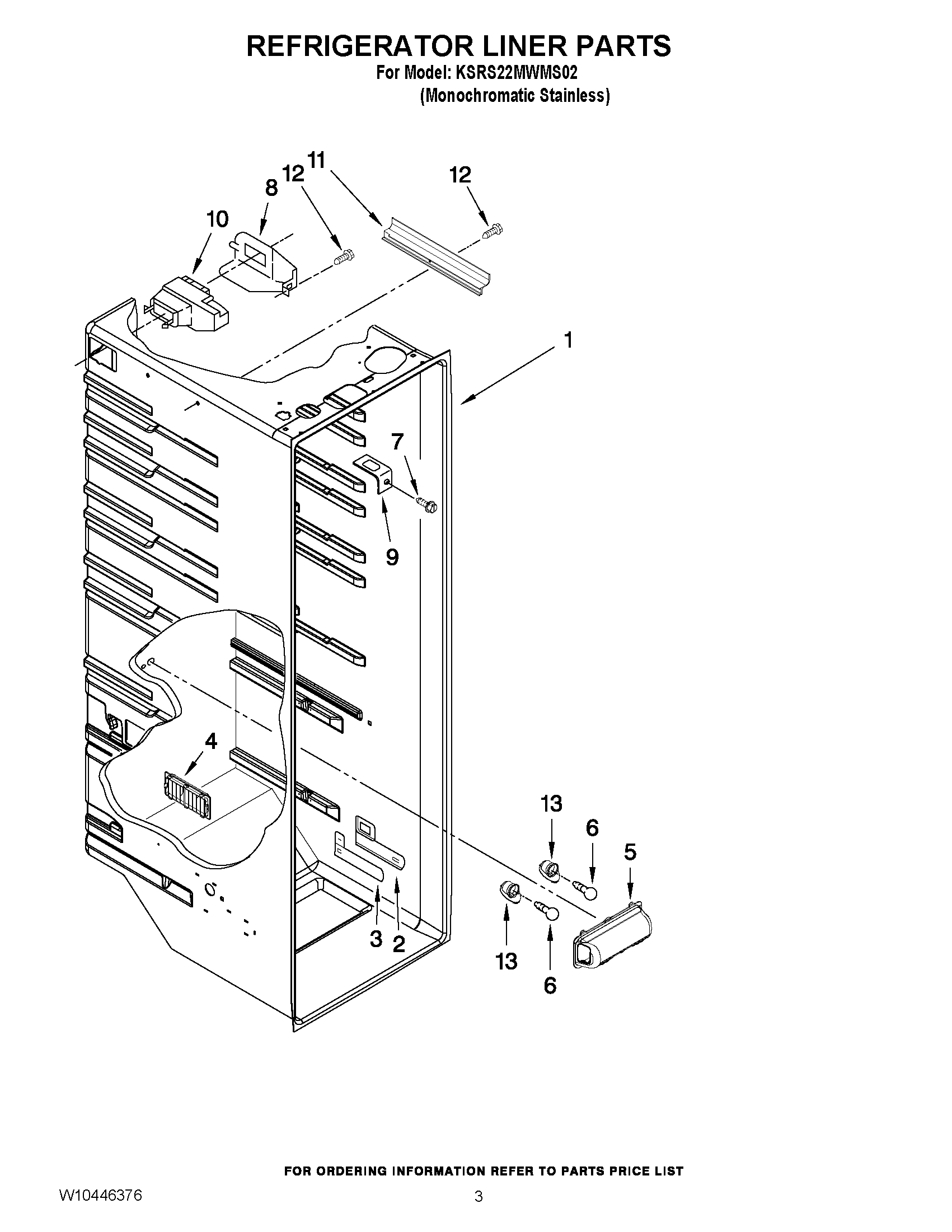

KSRS22MWMS02 02 – REFRIGERATOR LINER PARTS

KSRS22MWMS02 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRS22MWMS02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6W11679940 Whirlpool Refrigerator Light Bulb Assembly
7WP488488 Whirlpool Refrigerator Screw
82152019 Whirlpool Refrigerator Cover
9WP2256085 Whirlpool Refrigerator Retainer
10WPW10151374 Whirlpool Refrigerator Diffuser
11W10252495 Whirlpool Refrigerator Wire Cover
12W10759522 Whirlpool Screw
134387478 Whirlpool Refrigerator Light Socket
